QHY Minicam 5S Cooled Monochrome Astronomy Camera with USB 2.0
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- QHY MiniCam5S Monochrome CMOS Camera for imaging planets, deep-sky, and autoguiding
- Features a 1.2 megapixel Aptina MT9M034 CMOS monochrome sensor with 3.75 µm square pixels with low read noise and 74% QE
- Regulated two-stage TEC cooling as much as -38ºC below ambient
- Integrated heater helps prevent dew accumulation in the CMOS sensor chamber
- Data capture rates of 30fps at full 1280x960 resolution and 200fps at 320x240 resolution

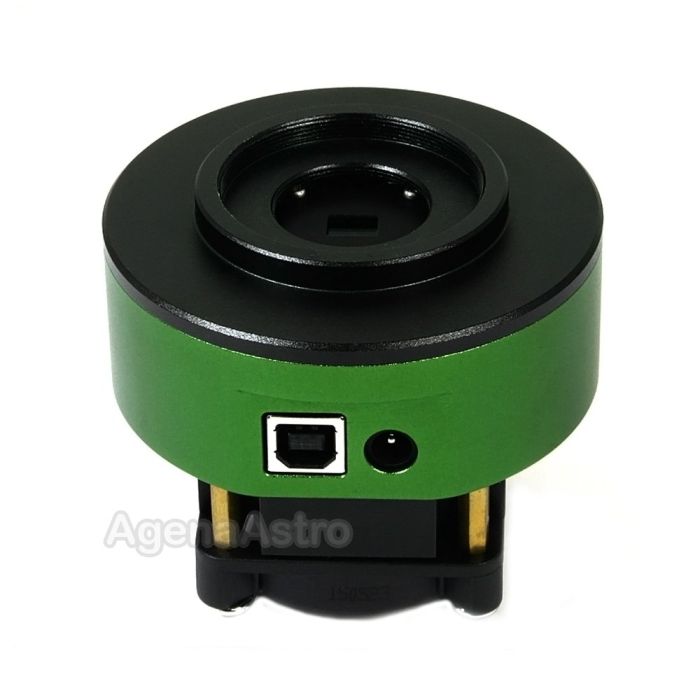

The QHY MiniCam5S is a cooled CMOS monochrome camera for deep space imaging, planetary imaging, and autoguiding. The MiniCam5S features an Aptina 1.2 megapixel MT9M034 CMOS monochrome sensor with a 1280 x 960 pixel array of 3.75um square pixels. The sensor has extremely low readout noise and a QE of 74% for fast capture of low-noise images. The MiniCam5S has a data capture rate of 30fps at full resolution and 200 frames per second at a resolution of 320x240. The MiniCam5S also supports on-camera guiding with 12-bit image output.
The QHY MiniCam5S also includes a dual-stage TEC that can cool the camera as much as -38C below ambient. A built-in heater keeps moisture off the chamber window, while an included silicone gel tube lets you dry the chamber manually.
The MiniCam5S incorporates an industry-standard 5 PIN guide port along with a robust Lemo-style connector which provides a superior connection between the camera and another device.
| Manufacturer | QHYCCD |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- QHY MiniCam5S Monochrome CMOS Camera for imaging planets, deep-sky, and autoguiding
- Features a 1.2 megapixel Aptina MT9M034 CMOS monochrome sensor with 3.75 µm square pixels with low read noise and 74% QE
- Regulated two-stage TEC cooling as much as -38ºC below ambient
- Integrated heater helps prevent dew accumulation in the CMOS sensor chamber
- Data capture rates of 30fps at full 1280x960 resolution and 200fps at 320x240 resolution
The QHY MiniCam5S is a cooled CMOS monochrome camera for deep space imaging, planetary imaging, and autoguiding. The MiniCam5S features an Aptina 1.2 megapixel MT9M034 CMOS monochrome sensor with a 1280 x 960 pixel array of 3.75um square pixels. The sensor has extremely low readout noise and a QE of 74% for fast capture of low-noise images. The MiniCam5S has a data capture rate of 30fps at full resolution and 200 frames per second at a resolution of 320x240. The MiniCam5S also supports on-camera guiding with 12-bit image output.
The QHY MiniCam5S also includes a dual-stage TEC that can cool the camera as much as -38C below ambient. A built-in heater keeps moisture off the chamber window, while an included silicone gel tube lets you dry the chamber manually.
The MiniCam5S incorporates an industry-standard 5 PIN guide port along with a robust Lemo-style connector which provides a superior connection between the camera and another device.
