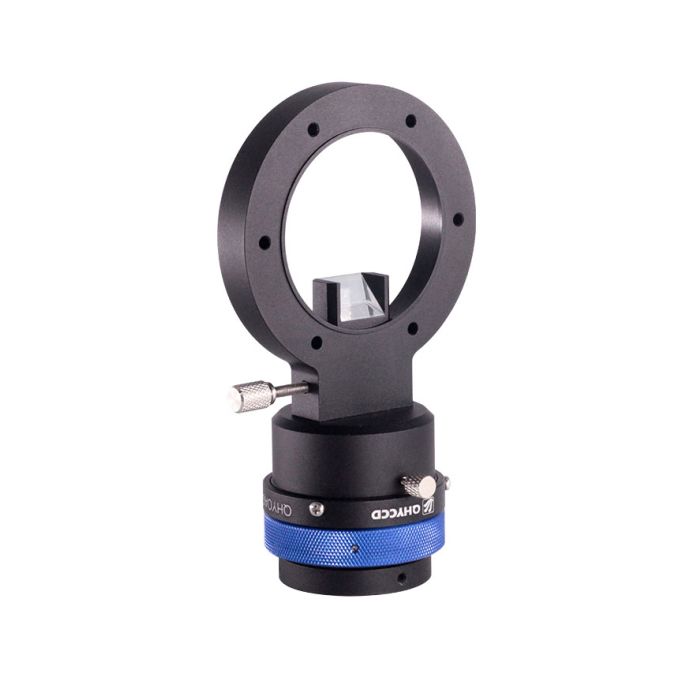

QHY Off-Axis Guider - Medium Pro Version with 10x14mm Prism
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Unlike external guiding arrangements, when using an OAG, the guiding camera and the imaging camera share the field of view of main optical system. If a user's OTA has a long focal length, and the environment is not ideal, there will often be fewer stars suitable for guiding to be found in the FOV. One way to improve the chance of finding a good guide star is to use a guide camera with a larger sensor. For example, guide cameras like the QHY5III174M or the QHY5III585C have a FOV that is 2-4 times larger than that of smaller cameras typically sold as guiders. This larger FOV naturally allows you to capture more stars, essentially solving the issue of no or few stars available to guide the image.
Similar to the QHYOAG-L Pro, the QHY OAG-M Pro has a larger prism to better accommodate guide cameras with larger sensors like the QHY5III174M and QHY5III585C. It also fits the CFW3M and CFW3L filter wheels without the need of additional adapters.
In order for a large-sensor guide camera to fully perform to its potential in an OAG, a prism large enough to allow illumination of the larger sensor is needed to avoid severe vignetting. The new OAG-M Pro uses a new wider prism to better accommodate larger sensor guide cameras. The prism size of the standard QHY OAG-M is about 8 x 8mm. The new QHY OAG-M Pro prism is 10 x 14mm.
When the QHY5III174M is connected to the older version of QHY OAG-M for actual shooting, there is severe vignetting (see Image 1 in second photo above). In contrast, when QHY5III174M is connected to the new QHY OAG-M Pro in the same optical system, there’s only a small amount of darkening occurs at the edges, which won’t affect guiding at night (see Image 2 in second photo above).
The QHYOAG Series directly attaches to the camera or filter wheel with six screws, ensuring a solid, parallel and reliable mechanical connection. At the same time, various standard and optional QHY accessories can be used to realize a variety of structural combinations.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x OAG-M Pro
- 1x 5mm M54(F) spacer
- 8x M3x18mm screws
- 3x M3x10 thumb screws + 1mm hexagon keys
- 1x driver download instructions
Unlike external guiding arrangements, when using an OAG, the guiding camera and the imaging camera share the field of view of main optical system. If a user's OTA has a long focal length, and the environment is not ideal, there will often be fewer stars suitable for guiding to be found in the FOV. One way to improve the chance of finding a good guide star is to use a guide camera with a larger sensor. For example, guide cameras like the QHY5III174M or the QHY5III585C have a FOV that is 2-4 times larger than that of smaller cameras typically sold as guiders. This larger FOV naturally allows you to capture more stars, essentially solving the issue of no or few stars available to guide the image.
Similar to the QHYOAG-L Pro, the QHY OAG-M Pro has a larger prism to better accommodate guide cameras with larger sensors like the QHY5III174M and QHY5III585C. It also fits the CFW3M and CFW3L filter wheels without the need of additional adapters.
In order for a large-sensor guide camera to fully perform to its potential in an OAG, a prism large enough to allow illumination of the larger sensor is needed to avoid severe vignetting. The new OAG-M Pro uses a new wider prism to better accommodate larger sensor guide cameras. The prism size of the standard QHY OAG-M is about 8 x 8mm. The new QHY OAG-M Pro prism is 10 x 14mm.
When the QHY5III174M is connected to the older version of QHY OAG-M for actual shooting, there is severe vignetting (see Image 1 in second photo above). In contrast, when QHY5III174M is connected to the new QHY OAG-M Pro in the same optical system, there’s only a small amount of darkening occurs at the edges, which won’t affect guiding at night (see Image 2 in second photo above).
The QHYOAG Series directly attaches to the camera or filter wheel with six screws, ensuring a solid, parallel and reliable mechanical connection. At the same time, various standard and optional QHY accessories can be used to realize a variety of structural combinations.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x OAG-M Pro
- 1x 5mm M54(F) spacer
- 8x M3x18mm screws
- 3x M3x10 thumb screws + 1mm hexagon keys
- 1x driver download instructions
QHY Off-Axis Guider - Medium Pro Version with 10x14mm Prism # OAG-M Pro
