QHY QHY600SBFL-CFW3XL Adapter
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

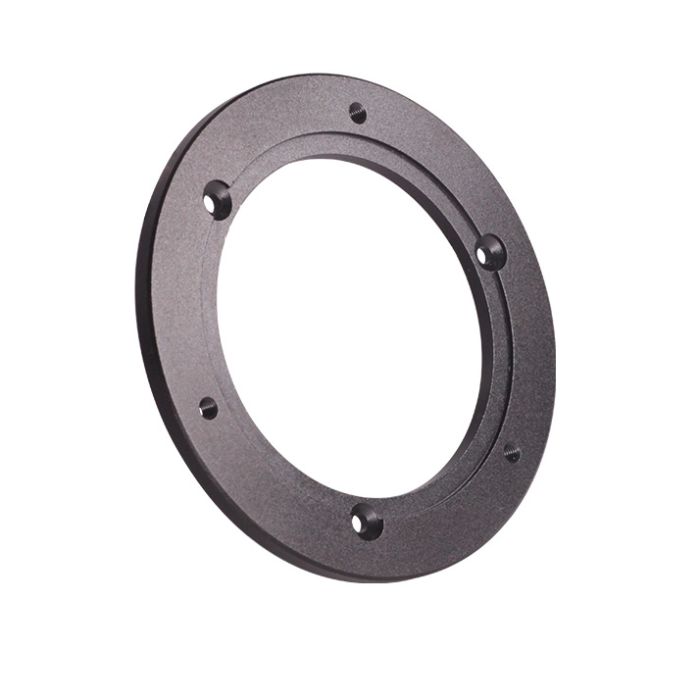

This 4mm adapter is designed for connecting QHY600M SBFL and QHYCFW3XL. Since the diameter of the joint part of QHY600M SBFL is different from QHYCFW3XL, we need this adapter to fix this. Three 6mm long M3 screws and three 8mm long M3 screws are provided. The adapter can also connect CFW3L and OAGL.
By the way, we still recommend the "QHY600+CFW3L" combo unless you already have the CFW3XL, because CFW3L and its 2"x7 filter carousel can meet most of the needs.
Installation Instructions

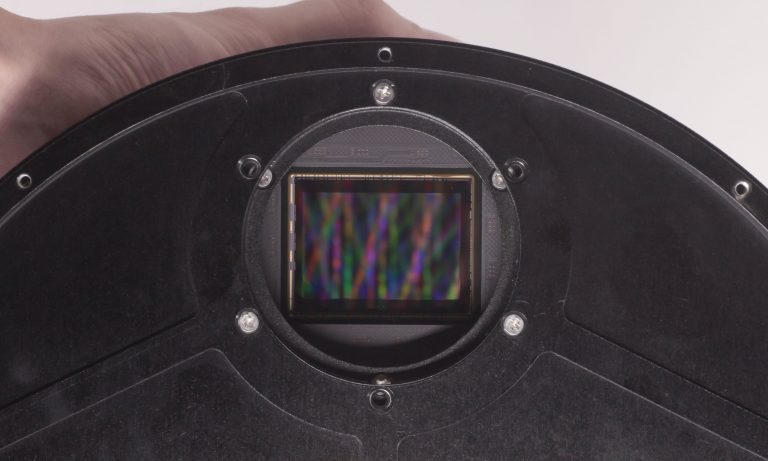

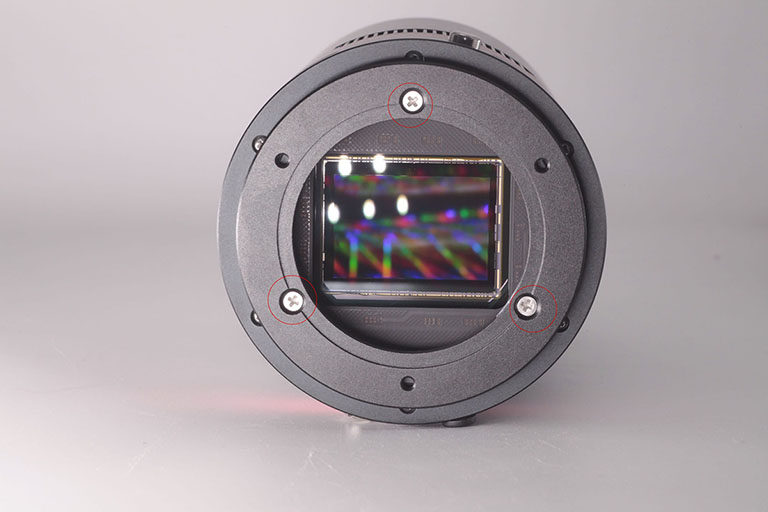

Step 1: Use three M3 6mm screws to fix the camera and adapter with countersunk holes. Pay attention to the positon of countersunk threads.

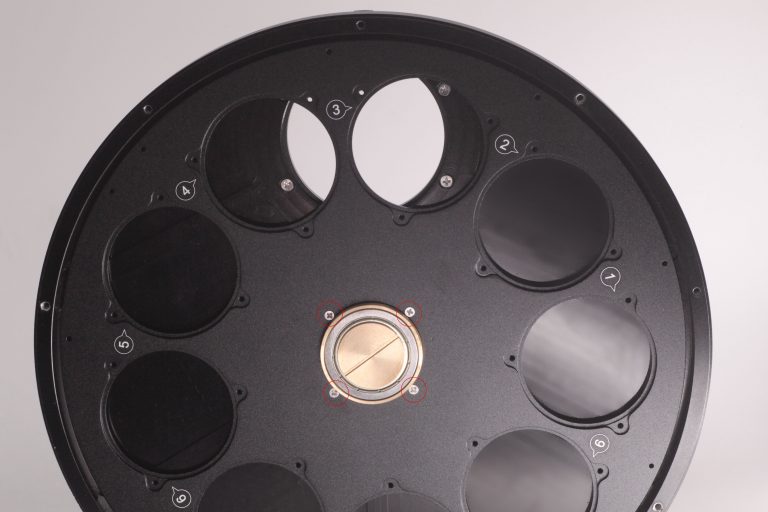

Step 2: Open the filter wheel and release four screws which fix filter carousel.

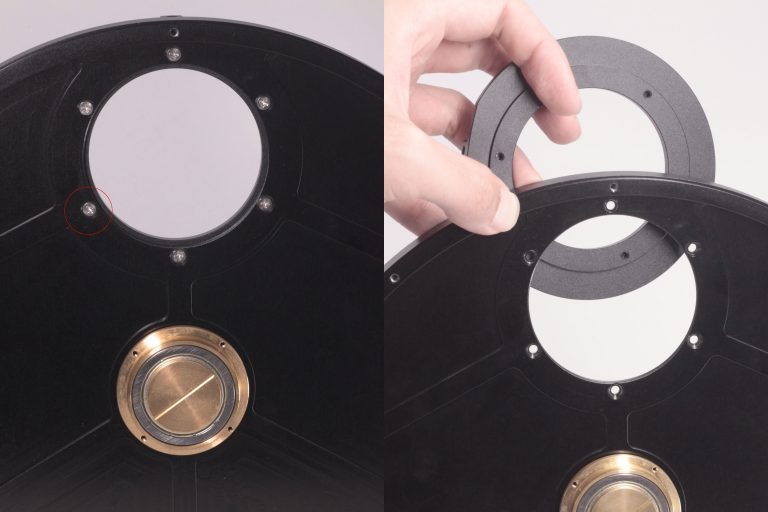

Step 3: Release these six screws and remove the default filter wheel adapter.
Step 4: Use another three 8mm M3 screws to fix the filter wheel and adapter.

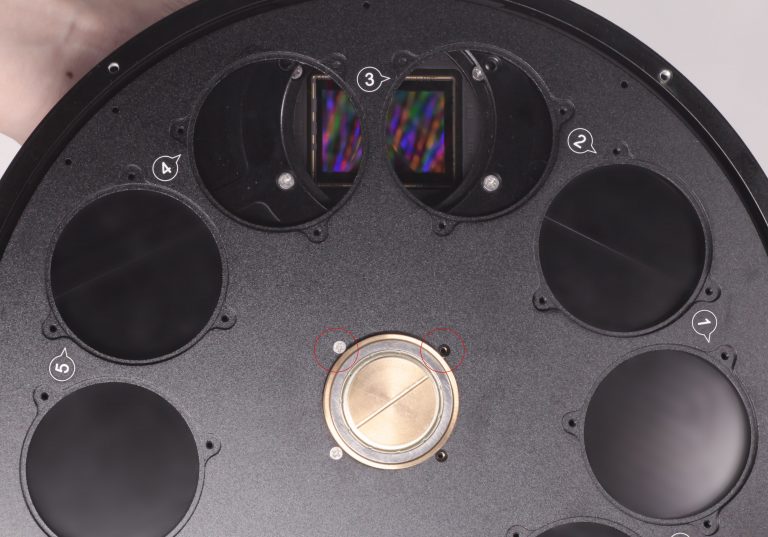

Step 5: Install Filter carousel and filters.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
This 4mm adapter is designed for connecting QHY600M SBFL and QHYCFW3XL. Since the diameter of the joint part of QHY600M SBFL is different from QHYCFW3XL, we need this adapter to fix this. Three 6mm long M3 screws and three 8mm long M3 screws are provided. The adapter can also connect CFW3L and OAGL.
By the way, we still recommend the "QHY600+CFW3L" combo unless you already have the CFW3XL, because CFW3L and its 2"x7 filter carousel can meet most of the needs.
Installation Instructions
Step 1: Use three M3 6mm screws to fix the camera and adapter with countersunk holes. Pay attention to the positon of countersunk threads.
Step 2: Open the filter wheel and release four screws which fix filter carousel.
Step 3: Release these six screws and remove the default filter wheel adapter.
Step 4: Use another three 8mm M3 screws to fix the filter wheel and adapter.
Step 5: Install Filter carousel and filters.
