Sharpstar 0.8x Reducer and Flattener for Full Frame Cameras for Sharpstar 76EDPH Telescope
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

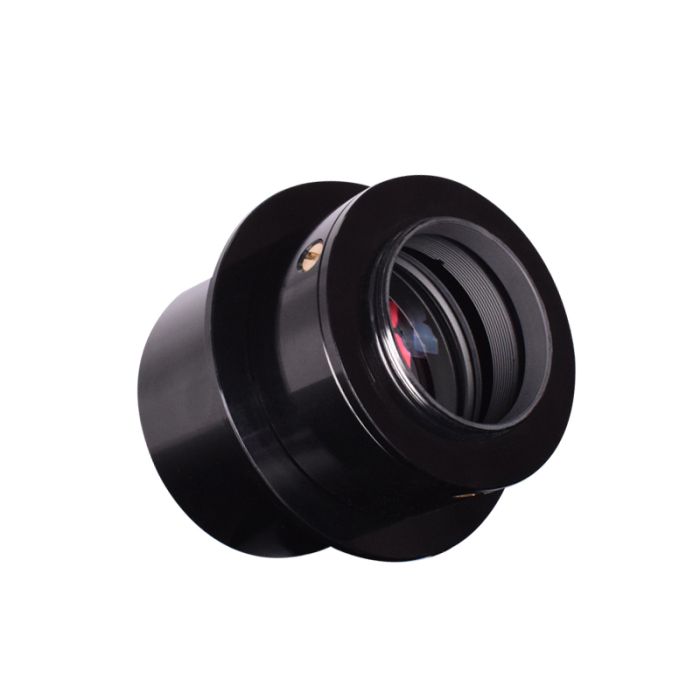

The Sharpstar 76EDPH F/4.5 is the latest development in dedicated full-frame focal reducers. Designed to work with the Sharpstar 76EDPH apochromatic refractor, this 0.8x reducer and flattener meets the needs of demanding astrophotographers who use cameras with up to full-frame sensors for wide-field deep-sky imaging.
This focal reducer features a triplet air-spaced structure and large optics that achieve excellent field flatness and illumination over a 44mm image circle.
One end of the reducer features a M74×1 thread that connects to the pinion focuser. The other end uses a M48×0.75 thread to attach to the camera or a 48mm T-ring for a DSLR. The focal plane is 55mm from the end interface.
The reducer also features a built-in 360-degree rotator that allows you to easily rotate the camera to achieve the best image framing. A internal M48x0.75 female thread allows the use of standard 2" filters.
- Use for telescope models: Sharpstar 76EDPH
- Reducing focal ratio: f/4.5 (0.8x)
- Image circle: 44mm
- Lens type: Triplet
- Largest diameter: 88mm
- Back focus: 55mm
- Total length: 77mm (including M48 thread)
- Surface coating: Fully Multi-Coated
- Weight: 0.5kg
This reducer can also be used with the 94EDPH telescope with good results, although its performance will not be as good as with the 76EDPH telescope.
