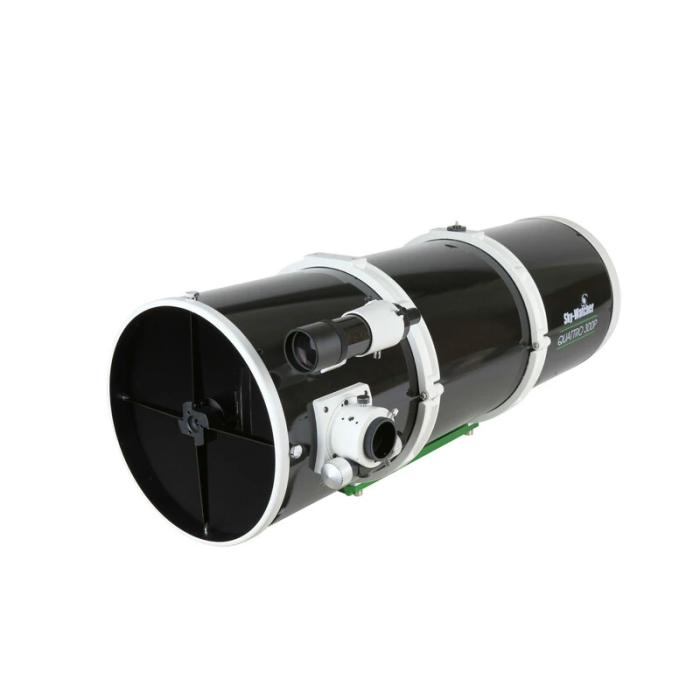

Sky-Watcher 12” Quattro Imaging Newtonian Telescope
Availability: Drop ships directly from vendor. Please contact us for an update on availability
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 305mm aperture, 1200mm focal length
- Fast f/4 focal ratio
- Parabolic mirror designed for imaging with 94% reflectivity
- 10:1, dual-speed, 2-inch Crayford-style focuser
- Oversized secondary mirror produces greater illumination for full-frame DSLR and CCD cameras
- Tube rings, mounting plate, eyepiece adapters, and 9x50 finderscope included
The Sky-Watcher Quattro 300P imaging Newtonian 12" # S11230 is an affordable, large aperture astrograph, ideal for users searching for a fast imaging system that will work for both astrophotography and visual astronomy. Boasting a swift f/4 focal ratio, this astrograph is can produce an exposure 6x faster than the average 8-inch f/10 Schmidt Cassegrain telescope. Although designed as an imaging optical tube, these Newtonians also produce bright and detailed viewing for visual astronomy.
Agena Astro affiliate AstroBackyard shared this video on the Sky-Watcher Quattro 300p:
Like all Sky-Watcher reflectors, the Quattro imaging Newtonian features borosilicate mirrors coated with Sky-Watcher’s proprietary Radiant™ Aluminum Quartz (RAQ™), producing 94% reflectivity. The tube is constructed with rolled steel, then coated with Sky-Watcher’s signature glossy metal-flake Black Diamond finish. The OTA uses an oversized secondary mirror providing greater illumination for DSLRs and CCDs using full-frame sensors, and an optional coma corrector is available for those who want to take their imaging to the next level.
Included with the Quattro imaging Newtonian is a 10:1 dual-speed 2-inch Crayford-style focuser, 1.25 and 2-inch eyepiece adapter, a 9x50 finderscope, tube rings, and a D-style dovetail plate.
Specifications:
Optical Info:
- Optical Design: Newtonian
- Mirror Coatings: Radiant Aluminum Quartz (RAQ)™ coatings with 94% reflectivity
- Glass Type: Borosilicate
- Primary Aperture (mm): 305
- Primary Edge Thickness: 38mm
- F/Ratio: 4
- Focal Length (mm): 1200
- Secondary Diameter: 102mm
- Secondary Obstruction (by diameter): 33%
- Secondary Obstruction by Area: 11%
Observational Info:
- Dawes Limit: 0.38
- Rayleigh Limit: 0.46
- Limiting Mag.: 14.9
- Minimum Magnification: 43
- Maximum Magnification: 600
- Light Gathering (compared to next size down): 44%
General Info:
- Focuser: 2" Dual Speed Crayford
- OTA Length (Retract/Ext.): 42.5"
- OTA Outer Diameter: 14.25"
- OTA Weight (with accessories): 57
- Focuser draw tube thread: male M54x0.75 (after removing eyepiece holder)
Accessories:
- Included Finder: 9x50 Finder
- Included Diagonal: No
- Mounting Accessories: Rings/D-Rail
- Included Eyepieces None
- Included Case: No
- Corrector: No (optional)
| Manufacturer | Sky Watcher |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Telescope Focal Length | 1001 - 1250mm |
| Hide Found a better Shipped Price on Frontend? | No |
