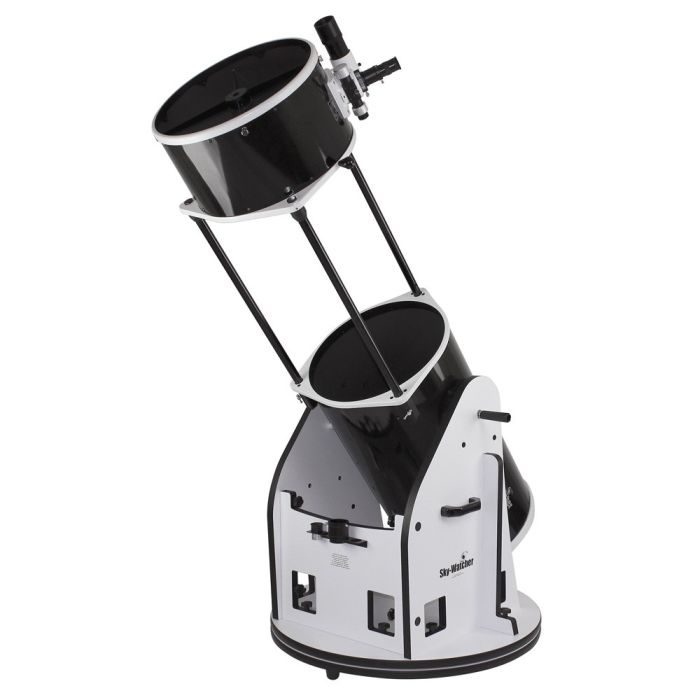

Sky Watcher 16" Collapsible Dobsonian Telescope
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 16” (404 mm) Dobsonian-style Newtonian
- 1800 mm focal length (f/4.4)
- 2” dual-speed Crayford-style focuser with 1.25” adapter
- 4-element Plossl 25 mm and 10 mm 1.25” eyepieces
- 9 x 50 straight-through finderscope
- Solid rocker-mount with Teflon bearings with tension clutch for altitude
- Aluminum plate with needle bearings for azimuth
- Eyepiece height at zenith: 68"
Celestron/Sky Watcher closeout - All sales final
Sky-Watcher 16" Dobsonian Telescope: Deep-Space Hero!
The Sky-Watcher 16" Dob is a big gun. A very significant wow-factor extends down to viewing the stuff people usually concentrate on with 10" and 12" telescopes. Except they say, "WOW!", when they view through this super aperture amateur 16" SW telescope. You can not only be a hero to yourself, but a mystical guru to other backyard astronomers, scout groups, friends, and neighbors. Astronomy is a great hobby to share, and a SW 16" Dob makes you potentially the hit of any star party. Well, so much for ego satisfaction—the point is—the SW 16" Dob is a serious telescope that will be purchased by a serious amateur who wants serious deep-sky penetrating resolution. Be advised this Light Chariot is one sweet astronomical ride!
Viewing Through the SW 16" Dob
Everything in deep-space appears brighter, and wider in extension with the SW 16" Dob. Many of the more challenging to resolve objects in smaller diameter telescopes now reveal their essential structure. Objects just within the threshold of a 12-14" aperture now appear more prominent and may be worth dwelling upon for extended periods. Comet hunters will delight in the fainter magnitudes that are possible to discern in the SW 16" Dob.
The incremental resolving power of the SW 16" aperture is beyond just being impressive, it's within amateur astronomy's super aperture threshold where the lucky observer is able to resolve well, many, many objects that smaller telescopes just don't have the horsepower to detail satisfactorily because they can't pull in enough light. Again, Sky-Watcher's compact, collapsible optical tube design makes this super aperture 16" Dob a far more practical decision to purchase.
The 16" Sky-Watcher Establishes a New Standard in Large Aperture Ease-of-Use
Observing with a Dobsonian has been described akin to shooting ducks in a gallery because it is so easy to find your target. Just swing your SW Dob to the quadrant of sky to be searched, and scan the vicinity. A 9x50mm optical viewfinder provides both magnification and light-gathering to help narrow your search for those elusive fuzzies when star-hopping. The standard-equipment backlash-free 2" Crayford Focuser insures ultra smooth focusing adjustments. Multi-coated, 4-element Plossl eyepieces (25mm and 10mm) provide a spacious 52° Apparent Field of View.
To ensure mechanical ease-of-use, SW uses a high performance Teflon bearing system in both axes combined with tension adjustment in altitude to facilitate setting the appropriate amount of friction, assuring smooth vertical and horizontal manual movement without free-play from small bumps or gusts of wind. This also eliminates the need to have a balanced optical tube as in an equatorial mount. Sky-Watcher's Teflon bearing system is preferable to the use of ball-bearings. Ball-bearings make unintended movement of the optical tube more difficult to control. Fortunately, at low power, deep-space objects leisurely drift through the field of the SW 16" Dob, so constant mechanical adjustment of the telescope's orientation isn't needed to keep objects in the field of view.
Sky-Watcher's revolutionary truss-support concept allows the optical tube's front and back cells to collapse together, aligning on the truss support rods which can then be locked down for easy and secure telescope transport. This one piece, low-hassle OTA design is mechanically simple and results in large aperture telescopes that can be reasonably handled and transported by one individual. This innovation gives Sky-Watcher users tremendous functional ease-of-transportability.
Sky-Watcher Uses Quality Components Throughout
The Sky-Watcher 16" Dob utilizes quality components throughout. Pride of workmanship manifests itself in high quality standards of optical and mechanical fabrication. The polishing process for primary and diagonal mirror yields smooth mirror surfaces ensuring good contrast, and properly corrected optics show minimum alterations to the optical wave-front.
On each primary mirror, and elliptical diagonal mirror aluminum is vacuum deposited to the front glass surface and then over coated with hard quartz (SiO4). Additional layers of Titanium Dioxide (TiO2) and (SiO4) are then applied. Dust covers are provided to help keep your Dob clean when not being used.
The mechanical and structural components of the OTA exhibit rigid construction and outstanding stability. The mount construction is sturdy and rigid. Mount design, while simple, facilitates smooth motions about both axes. Quality accessories enhance the observer's viewing experience.
Specifications:
- Optical Design: Newtonian Reflector
- Aperture (mm): 406.6 mm (16 in)
- Focal Length: 1800 mm
- Focal Ratio: 4.4
- Finderscope: 9x50 Straight-Through Finderscope
- OTA length retracted: 42.5"
- OTA length extended: 66.5"
- OTA width: 17.875"
- OTA weight (with accessories): 72 lbs
- Base weight: 88 lbs
- Base dimensions: 34 x 31"
- Zenith eyepiece height: 72"
Product carries full 2 year manufacturer factory limited warranty (within US only).
Manufacturer part number: S11780
| Manufacturer | Sky Watcher |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
