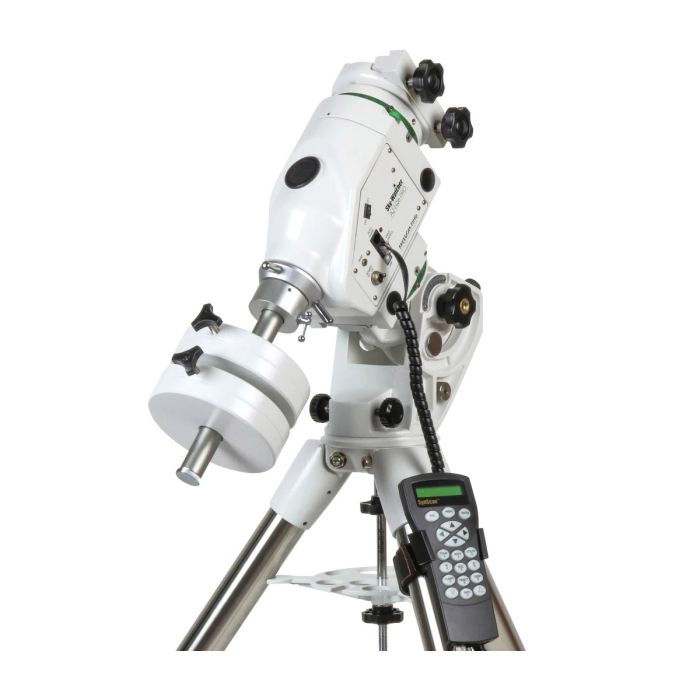

Sky-Watcher AZ-EQ6 Mount
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 44-pound payload capacity handles a large variety of OTAs
- German equatorial/Alt-Az/dual-OTA mode
- Permanent periodic error correction (PPEC)
- +/- 5 arcseconds native periodic error
- Belt drive delivers super smooth PE curve with low backlash and silent slewing
- Dual encoders with Freedom Find™ technology allow manual use of the mount without losing alignment
- SNAP shutter release control for batch exposures of astrophotos
- Motor controller with high torque and accuracy
- Includes two D/V-style saddles for mounting dual OTAs
- Two 11-pound counterweights
- Secure-fit power supply connections
- Polar alignment with built-in illuminated polarscope
- Retractable counterweight bar and counterweight extension bar included
The AZ-EQ6 # S30330 is the ultimate multi-role mount, blending the popularity of an EQ mount with the convenience of an Alt-Az mount. With its heavy duty 44-pound payload capacity, the AZ-EQ6 can handle a large variety of optical systems for both imaging and visual applications. In EQ mode the mount can be used for long exposure, deep sky imaging, while in Alt-Az mode it can be used for visual with one or even two telescopes with the addition of the secondary mounting saddle (included with the mount).
Belt Drives
To provide the best performance the AZ-EQ6 features ultra-quiet stepper motors and belt drives on both the RA and Dec axes. Belt drive reduces the number of gears used in the drive system which in turn reduces backlash. This allows the mount to track and guide with amazing precision.
Freedom Find™
For those looking for the ultimate visual tracking mount the AZ-EQ6 features Sky-Watcher's Freedom Find™ encoder system. These encoders are separate from the mount's GoTo system and allow you to disengage the clutches and manually move the mount around the sky without losing your initial alignment.
Dual OTAs
The AZ-EQ6 can mount two separate optical systems. By mounting the included secondary mounting saddle to the end of the counterweight bar the AZ-EQ6 can be used in “dual-OTA mode”. The benefits of using two telescopes on the same target at the same time is useful when comparing or imaging with two different fields of view (narrow vs. wide). It’s also perfect for solar observation when using two different types of filters for safe observation of the Sun. Most importantly, dual-OTA mode is ideal for astronomy outreach and education to double the number of eyes at the scope and halve the wait time keeping rambunctious kids and frazzled parents engaged and excited about the cosmos.
PC Direct Connect
For an improved and simplified connection, the AZ-EQ6 features a built-in USB-B port on its side panel. This allows for easy connection to a PC computer and control through our Sky-Watcher SynScan Pro application available for PC.
42,000+ Object Database
Using our proprietary SynScan hand controller, the AZ-EQ6 Pro provides a user-friendly interface with automatic slewing to over 42,000+ objects in the night sky. For the astrophotographers looking to reduce periodic error, the SynScan hand controller has built-in PEC training that can be configured while in the field!
Flexible Polar Alignment
Sky-Watcher includes an illuminated polar finderscope to aid the polar alignment process. The finderscope features a circular grid reticle for the Northern Hemisphere, consistent with today’s popular polar alignment apps. For astronomers in the Southern Hemisphere, the constellation Octans is built into the reticle as well. Even without a clear view of Polaris, the AZ-EQ6 Pro can be polar aligned using our SynScan hand controller. Simply choose one of the visible stars listed and use the latitude adjustment screws to center it in the eyepiece.
Specifications:
General Mount Info:
- Mount Type AZ/EQ
- GoTo Yes
- Payload Capacity (lbs): 44
- Mount Head Weight (lbs): 34
- Tripod Weight (lbs): 16.5
- Fully Assembled Weight (w/ weights): 72.5 lbs.
- Tripod Leg Diameter 2"
- Mounting Saddle Type: D/V
- Power Type: 12V (4 amp minimum)
- Clutch: Slip Clutch
- Polar Scope: Built In
- Latitude Range (degrees): 10-70 (EQ mode) 90 (AZ mode)
Computer/Drive System Info:
- Object Database: 42900+
- Controller: Hand Controller
- WiFi: Optional WiFi dongle
- Polar Align: Assist Yes
- PC Direct Connect Port: Yes
- Auto Guide: Yes
- Permanent Periodic Correction: Yes
- Dual Encoders: Yes
- DSLR Enterface: Yes
- Included Weights: 11lbs (two)
- Motor Type: Stepper
- Drive System: Belt
| Product Banner Type | sale |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- AZEQ-6 mount head
- SynScan hand controller
- Hand controller cable
- SNAP cable
- 12v DC power cable
- Counterweight bar extension
- Secondary mounting saddle with mounting hardware
- Hand controller holster
- AZEQ-6 tripod
- 11-pound counterweight (2x)
