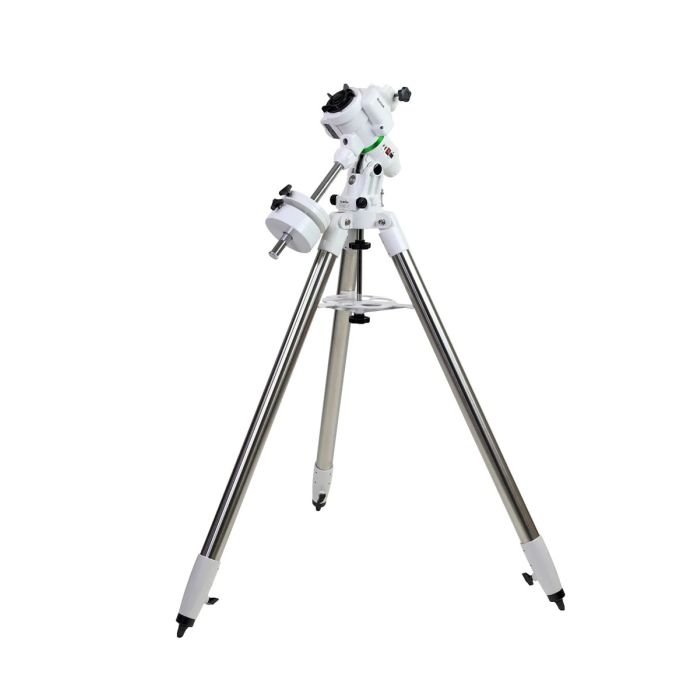

Sky-Watcher EQ-AL55i Pro Equatorial Mount
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Equatorial GoTo mount
- 22-pound payload capacity
- 0- 90° latitude range
- SynScan Go To telescope mount with 42,900+ object database
- Built-in WiFi
- Controlled with SynScan Pro app for iOS and Android
- Dual axis tracking
- One 7.5-pound counterweight and one 4-pound counterweight included
- Built-in illuminated polar scope
- Adjustable height, steel legged tripod
- DC power cord
- Pier Extension, OTA, Hand Controller sold separately
Sky-Watcher EQ-AL55i Pro: Lightweight Portability, Redefined
The EQ-AL55i Pro is the perfect entry into a intermediate level equatorial platform for observers and imagers looking to build a rig without breaking the bank.
Redesigned from the popular EQM-35 the EQ-AL55i features fully encased motor housings and two positions for the counterweight bar. An optional pier extension makes this mount the perfect choice for observers and imagers in lower latitudes.
Featuring Wi-Fi, Bluetooth SynScan, and ASCOM telescope control, 22-pound payload capacity, a guidescope and SNAP port, the EQ-AL55i is a perfect choice for a mid-size imaging mount.
*Pier extension, OTA, and Hand Controller sold separately
Specifications:
Mount General Specifications
- Mount type (AZ, EQ or both): Equatorial
- Mount instrument weight capacity: 22 pounds (9.97kg)
- Mount head size: 286mm x 241mm x 133mm
- Mount head weight: 8.2 pounds (3.7kg)
- Tripod weight: 11.5 pounds
- Tripod retracted/extended: 45"/58"
- Tripod spread retracted/extended: 33.5"/45"
- Tripod folded measurements: 39" long
- Tripod leg diameter: 1.75"
- Tripod Center Stud Thread: M10x1.5
- Counter weight bar: 10.75" x 20mm
- Mounting saddle type: V-style
- Counterweight bar?: Yes
- Counterweight bar retractable?: No
- Counterweight bar length and diameter: 15"x31.5mm
- Type of motor: Servo
- Drive type (belt, gear, direct, etc.): Gear
- Spring loaded worms: No
- RA gear size: 73mm
- Polarscope?: Yes
- Polarscope illuminated?: Yes
- Tracking Modes: Sideral, Solar, Lunar
- Latitude range (in degrees): 0°-80°
Electronics Specifications
- GoTo: Yes
- Freedom find?: No
- Hand controller port: Yes (RJ-45, 8-pin)
- Guide port?: Yes (RJ-12, 6-pin)
- SNAP port?: Yes (2.1mm)
- PC connect USB port?: Yes (USB-C)
- Cable management?: No
- Built-in GPS?: No
- Built-in WiFi?: Yes
- Hand controller?: No* (Optional)
- Hand controller cable used: Yes
- GoTo database: 42,000+
- Power requirements?: DC9 ~ 12.6V
- Internal battery pack: No
- Mount power port size and style: 2.1mm female
Included Accessories
- Counter weights: 3.9 lbs (1.8kg) & 7.7 lbs (3.5kg)
- EQ base: Optional
- Dec. bracket: Optional
- Ball head adapter: Optional
- Polarscope illuminator: Included
- Polarscope: Yes
- Tripod: Yes
- Pier extension: No
- Power cable?: Yes
- SNAP cable?: No
- Additional accessories: None
- Hand controller holder?: No
- Manual: Yes
- Case: No
