Sky-Watcher EQ8-R Observatory-Class Computerized GoTo Telescope Mount with Pier Tripod
Availability: Drop ships directly from vendor. Please contact us for an update on availability
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 110-pound (50 kg) Payload: All-metal precision internal construction makes this mount extremely strong and stable. The EQ8-R is a perfect fit for even the largest OTAs Sky-Watcher has to offer and is designed to thrive in your permanent or semi-permanent personal observatory.
- Belt-drive On Both Axes: Streamlined design and improved motor positioning allows for dual belt drives providing minimal backlash and significantly reduced periodic error, which means smoother, more accurate tracking.
- Integrated Cable Management System: An integrated thru-mount cabling system contributes to the overall sleekness and efficiency while the internal USB hub, power, and serial ports eliminate cable drag and reduces the worry of cable snags.
Building on the legacy of Sky-Watcher’s popular EQ8 mount, the EQ8-R S30601 introduces a variety of upgrades and enhancements that make observatory-class astrophotography easier than ever. Upgrades include a more streamlined design with balanced motor positioning, a sleek thru-mount cable management system and repositioned power hub with a more ergonomic feel to your setup and workflow. Also included are internal USB hub, larger saddle knobs for ease of use in cold weather, homing sensors to keep your mount oriented, physical hard stop to prevent cable snap, larger locking levers for ease of use, thread-on aircraft power connector for a secure connection, PC direct control, PPEC training for tack sharp images, and more!
Whisper-quiet dual belt drives greatly reduce periodic error while providing enhanced tracking and guiding. Gears measuring over eight inches in diameter help handle large payloads and provide smooth tracking. The fully realized cable management system eliminates cable drag and makes remote setups ridiculously convenient.
For users already familiar with previous Sky-Watcher mounts, the EQ8-R is a substantial upgrade, but with familiar features that will help dampen the learning curve. This is an observatory-class mount designed to be controlled PC Direct or even completely remote and yet, the EQ8-R can still be run by the tried-and-true SynScan V5 hand controller with a 42,000+ object database. Two large carrying handles make set up and takedown less awkward. Other features include a super sturdy adjustable portable pier tripod, D-style dovetail saddle, two 22-pound counterweights, DC power cord, and built-in USB PC control.
Features:
- The EQ8-R has an available optional polar scope available, making polar alignment quick and easy

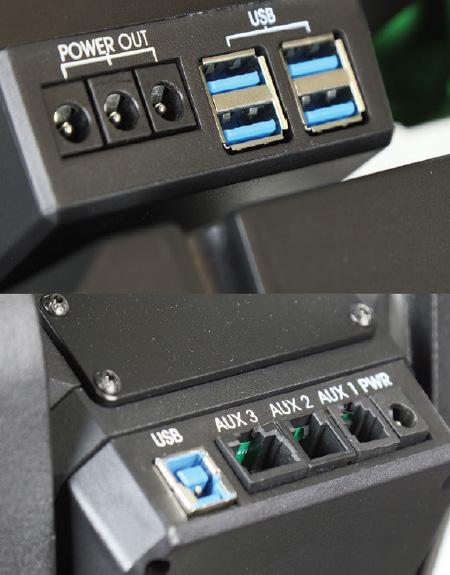

- Cable management features four USB 3.0 ports, three 2.1mm power ports and three serial ports
- Rock-solid, all-metal construction delivers a staggering 110 pounds of payload capacity
Specifications:
General Mount Information:
- Mount Type: High-capacity motorized equatorial (EQ)
- Tripod: Heavy-duty pier tripod
- GoTo: Yes
- Payload Capacity (lbs): 110
- Mount Head Height (head by itself): 19.5"
- Mount Head Weight (lbs): 56.8
- Mount with Tripod max height: 58.625"
- Mount with Tripod min height: 49.75"
- Tripod max height (no mount head): 39.125"
- Tripod min height (no mount head): 30.25"
- Tripod leveling pads min height: 4"
- Tripod Weight (lbs): 64.8
- Tripod Leg Diameter: 2.36"
- Mounting Saddle Type: D-style
- Power Type: DC11~16V, 3 amp
- Cable management: Four USB 3.0 ports, Three 2.1mm power ports, Three serial connections
- Polar Scope: Sold seperately
- Latitude Range (degrees): 10° to 65°
Computer/Drive System Information:
- Object Database: Complete Messier, NGC, IC and SAO catalogs, 25 user defined objects, total 42,900 objects
- Controller: SynScan hand controller, flash upgradeable, or PC direct
- Alignment Procedures: One-, two- and three-star alignment
- Slew Speeds: 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x
- WiFi: Optional WiFi dongle
- GPS: Optional SynScan GPS sold seperately
- Included Weights: 22lbs (two)
- Motor Type: 0.9° hybrid stepper motor
- Drive System: Belt
| Product Banner Type | sale |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Box #1
- EQ8-R mount head
- SynScan hand controller
- Hand controller cable
- SNAP cable
- 12v DC power cable
- Latitude adjustment lever
- Counterweight bar
- Toe saver
- USB-3.0 adapter
- USB-3.0 booster hub
- Mount head mounting bolts
- Hex wrench (M6)
Box #2
- EQ8 pier tripod
- 19mm wrench
- Mounting head bolts
- Hex wrench
- Heavy duty leveling pads (3x)
- Tripod spreader clamps (3x)
- Hand controller holster
Box #3
- 22-pound counterweight
- Tightening bolt
Box #4
- 22-pound counterweight
- Tightening bolt
- 110-pound (50 kg) Payload: All-metal precision internal construction makes this mount extremely strong and stable. The EQ8-R is a perfect fit for even the largest OTAs Sky-Watcher has to offer and is designed to thrive in your permanent or semi-permanent personal observatory.
- Belt-drive On Both Axes: Streamlined design and improved motor positioning allows for dual belt drives providing minimal backlash and significantly reduced periodic error, which means smoother, more accurate tracking.
- Integrated Cable Management System: An integrated thru-mount cabling system contributes to the overall sleekness and efficiency while the internal USB hub, power, and serial ports eliminate cable drag and reduces the worry of cable snags.
Building on the legacy of Sky-Watcher’s popular EQ8 mount, the EQ8-R S30601 introduces a variety of upgrades and enhancements that make observatory-class astrophotography easier than ever. Upgrades include a more streamlined design with balanced motor positioning, a sleek thru-mount cable management system and repositioned power hub with a more ergonomic feel to your setup and workflow. Also included are internal USB hub, larger saddle knobs for ease of use in cold weather, homing sensors to keep your mount oriented, physical hard stop to prevent cable snap, larger locking levers for ease of use, thread-on aircraft power connector for a secure connection, PC direct control, PPEC training for tack sharp images, and more!
Whisper-quiet dual belt drives greatly reduce periodic error while providing enhanced tracking and guiding. Gears measuring over eight inches in diameter help handle large payloads and provide smooth tracking. The fully realized cable management system eliminates cable drag and makes remote setups ridiculously convenient.
For users already familiar with previous Sky-Watcher mounts, the EQ8-R is a substantial upgrade, but with familiar features that will help dampen the learning curve. This is an observatory-class mount designed to be controlled PC Direct or even completely remote and yet, the EQ8-R can still be run by the tried-and-true SynScan V5 hand controller with a 42,000+ object database. Two large carrying handles make set up and takedown less awkward. Other features include a super sturdy adjustable portable pier tripod, D-style dovetail saddle, two 22-pound counterweights, DC power cord, and built-in USB PC control.
Features:
- The EQ8-R has an available optional polar scope available, making polar alignment quick and easy
- Cable management features four USB 3.0 ports, three 2.1mm power ports and three serial ports
- Rock-solid, all-metal construction delivers a staggering 110 pounds of payload capacity
Specifications:
General Mount Information:
- Mount Type: High-capacity motorized equatorial (EQ)
- Tripod: Heavy-duty pier tripod
- GoTo: Yes
- Payload Capacity (lbs): 110
- Mount Head Height (head by itself): 19.5"
- Mount Head Weight (lbs): 56.8
- Mount with Tripod max height: 58.625"
- Mount with Tripod min height: 49.75"
- Tripod max height (no mount head): 39.125"
- Tripod min height (no mount head): 30.25"
- Tripod leveling pads min height: 4"
- Tripod Weight (lbs): 64.8
- Tripod Leg Diameter: 2.36"
- Mounting Saddle Type: D-style
- Power Type: DC11~16V, 3 amp
- Cable management: Four USB 3.0 ports, Three 2.1mm power ports, Three serial connections
- Polar Scope: Sold seperately
- Latitude Range (degrees): 10° to 65°
Computer/Drive System Information:
- Object Database: Complete Messier, NGC, IC and SAO catalogs, 25 user defined objects, total 42,900 objects
- Controller: SynScan hand controller, flash upgradeable, or PC direct
- Alignment Procedures: One-, two- and three-star alignment
- Slew Speeds: 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x
- WiFi: Optional WiFi dongle
- GPS: Optional SynScan GPS sold seperately
- Included Weights: 22lbs (two)
- Motor Type: 0.9° hybrid stepper motor
- Drive System: Belt
| Product Banner Type | sale |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Box #1
- EQ8-R mount head
- SynScan hand controller
- Hand controller cable
- SNAP cable
- 12v DC power cable
- Latitude adjustment lever
- Counterweight bar
- Toe saver
- USB-3.0 adapter
- USB-3.0 booster hub
- Mount head mounting bolts
- Hex wrench (M6)
Box #2
- EQ8 pier tripod
- 19mm wrench
- Mounting head bolts
- Hex wrench
- Heavy duty leveling pads (3x)
- Tripod spreader clamps (3x)
- Hand controller holster
Box #3
- 22-pound counterweight
- Tightening bolt
Box #4
- 22-pound counterweight
- Tightening bolt
Sky-Watcher EQ8-R Observatory-Class Computerized GoTo Telescope Mount with Pier Tripod # S30601
