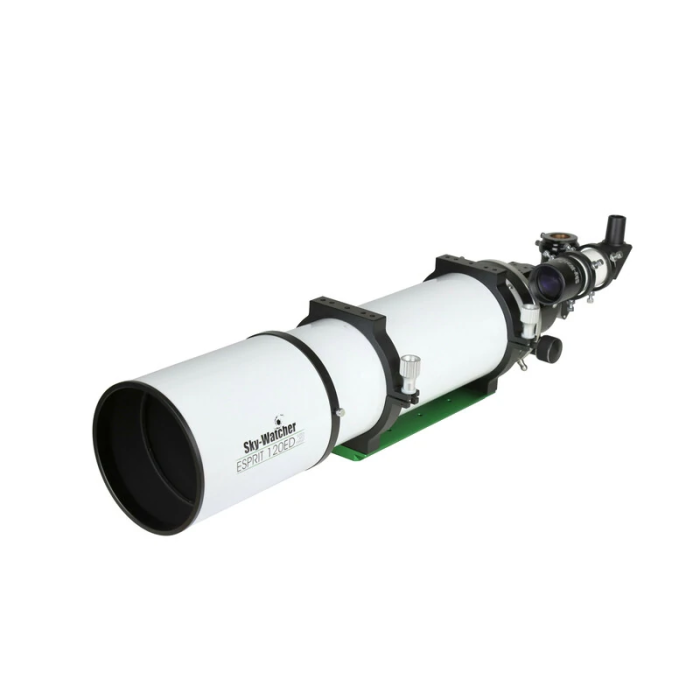

Sky-Watcher Esprit 120mm ED Triplet Apo Refractor OTA
Availability: Discontinued by vendor. No longer available.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Triplet super-apochromatic design
- Three-element, air-spaced optical assembly virtually eliminates false color
- 120mm aperture, 840 focal length, f/7 focal ratio
- 3.4-inch dual-speed rack-and-pinion, Helinear track focuser
- Rolled steel optical tube with white, glossy finish
- Included accessories: field flattener, tube rings, D-style dovetail, 8x50 right-angle finderscope, M48 camera adapter, 2-inch dielectric diagonal, and padded hard case
Designed with the discerning astrophotographer in mind, Sky-Watcher’s top-of-the-line Esprit 120ED Triplet Super Apo refractor # S11420 delivers the kind of imaging performance one would expect from telescopes costing thousands of dollars more. With the Esprit’s three-element, air spaced objective lens design, false color is virtually eliminated, yielding exceptional contrast and sharpness. Each element is fully multi-coated with Sky-Watcher’s proprietary Metallic High-Transmission Coatings™ (MHTC)™, producing a transmission rate that rivals any refractor on the market.
In addition to superb optics, all Esprits feature exclusive dual-speed, Helinear track focusers, which provide smooth, rock-solid focusing with zero image shift. Using a captain’s wheel design all focusers can be rotated, giving astrophotographers flexibility when framing their image.
As is customary, Sky-Watcher supplies everything you need to get out under the stars, including a 2-element field corrector, which guarantees a flat field across the entire imaging plane. All Esprit refractors also come with an 8x50 right angle finderscope, 2-inch star diagonal, M48 camera adapter, mounting hardware, and padded case.
Specifications:
Optical Info:
- Optical Design: ED Triplet Refractor
- Lens Coatings: Fully Multi-Coated
- Glass Type: BK7 (2)/FPL-53(ED)
- Primary Aperture (mm): 120
- F/Ratio: 7
- Focal Length (mm): 840
Observational Info:
- Dawes Limit: 0.97
- Rayleigh Limit: 1.16
- Limiting Mag.: 12.9
- Minimum Magnification: 17
- Maximum Magnification: 236
- Light Gathering (compared to next size down): 44%
General Info:
- Focuser: 3.4" Dual Speed R&P
- OTA Length (Retract/Ext.): 27.4"/31.5"
- OTA Outer Diameter: 6.875"
- OTA Weight (with accessories): 22
Accessories:
- Included Finder: 8x50 RACI
- Included Diagonal: 2" Dielectric
- Mounting Accessories: Rings/D-Rail
- Included Eyepieces: None
- Included Case: Yes
- Corrector: Yes
| Manufacturer | Sky Watcher |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free Contiguous US Shipping |
| Telescope Focal Length | 801 - 900mm |
| Hide Found a better Shipped Price on Frontend? | No |
