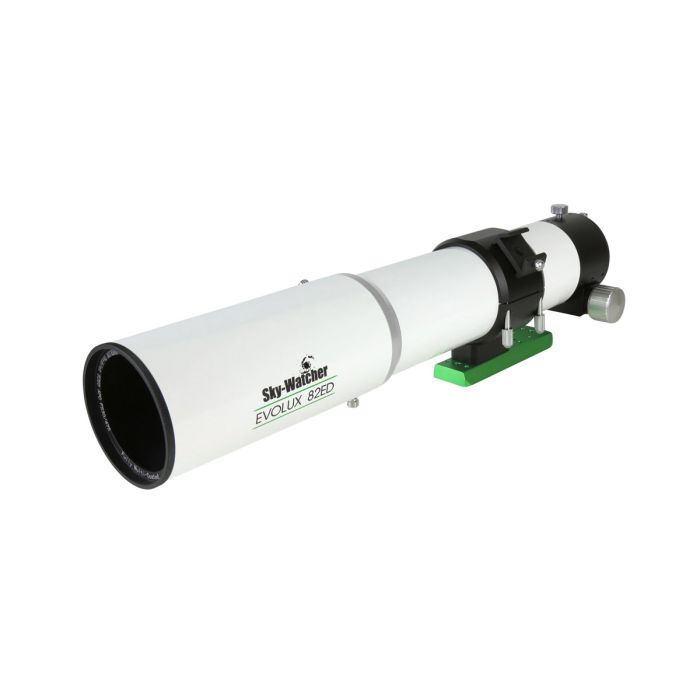

Sky-Watcher Evolux 82mm ED Doublet Apo Refractor Telescope
Availability: Discontinued by vendor. No longer available.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- New ED doublet apochromatic optical design
- New lightweight, compact design perfect for wide field astrophotography
- New optical design featuring our proprietary Metallic High-Transmission Coatings™ (MHTC™)
- 82mm aperture
- 530mm focal length
- Fast f/6.45 focal ratio
- One ED element with matched optics
- Adjustable dew shield protects against stray light and condensation on the lens
- Clamshell mounting system with dual finderscope brackets
- 2.4-inch 11:1 precision dual-speed rack-and-pinion style focuser for better load capacity
- V-style dovetail fits most mounts
- Optional reducer/corrector (477mm at F/5.8)
- Hard case included for your travel or storage needs
Building on the foundation of the popular Evostar line of refractors, Sky-Watcher has developed the all new Evolux 82ED Doublet Apo Refractor # S11310. Designed for the savvy astrophotographer looking for a lightweight scope that still packs a punch with key upgrades in the optics and the mechanics, Evolux is a perfect fit for a widefield grab and go setup.
Sky-Watcher’s Evolux apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The lens assembly utilizes a proprietary combination of matched lenses, delivering tack-sharp stars with charcoal-black, contrast-rich skies. All ED glass elements feature our proprietary Metallic High-Transmission Coatings™ (MHTC™), virtually eliminating all false color while the adjustable dew shield prevents stray light and condensation from affecting your photography.
Evolux comes in a foam-lined aluminum case with a 2.4-inch dual-speed rack-and-pinion-style focuser, dual finderscope brackets, a V-style dovetail, clamshell ring, and adjustable dew shield. Optional reducer/corrector sold separerately (item # S20207).
Specifications:
Optical Info:
- Optical Design: Apochromatic
- Lens Coatings: Fully multi-coated
- Lens Design: ED Doublet (Air Spaced)
- Glass Type: ED Doublet
- Optical Quality: Diffraction limited (1/4 wave)
- Primary Aperture (mm): 82
- F/Ratio: 6.45
- Focal Length (mm): 530
Observational Info:
- Dawes Limit: 1.41
- Rayleigh Limit: 1.7
- Limiting Mag.: 12
- Minimum Magnification 12x
- Maximum Magnification: 161x
- Light Gathering (compared to next size down): 75% (compared to Evolux 62ED)
Mechanical Specifications:
- Focuser: 2.4" Dual Speed (11:1) Rack & Pinion
- Focuser: Rotatable?: No
- Compression Ring: Yes
- Retractable dew shield: Yes
- OTA material: Aluminum
- OTA Length (Retract/Ext.): 16.375"/22.25"
- Dew Shield diameter: 100mm
- OTA Diameter: 90mm
- OTA Weight (with accessories): 6.5 lbs
- Mounting rings: Yes
- Dovetail type: V-style dovetail
- Dovetail length: 6"
Optional Corrector/Reducer Specifications (sold separately):
- Corrector Name: Evolux 82ED 0.9x reducer kit
- Optional Corrector/Reducer: SKU S20207
- Reduction (reducer only): 0.9x
- Corrector - insertable or thread-on: Thread-on
- Corrector thread size: M56x1 female/M48 male
- Corrector back focus: 55mm
- Corrector illuminated field: 36mm
- Includes one ED element: Yes
- F/Ratio with reducer installed: 5.8
- Focal Length with reducer installed: 477mm
- Corrector adapter needed?: Yes
- Corrector allow for 2" filters?: No (Adapter included with reducer)
Accessories:
- Eyepieces: No
- Diagonal: No
- Mounting Hardware: Clamshell/Dovetail
- Camera Adapter: No
- Flattener or Corrector: No
- Collimation eyepiece: No
- Finder: No
- Case: Yes
- Case Dimensions: 19.5" x 10.75" x 7.75"
- Shipping Weight: 13.2 lbs.
- Shipping Dimensions: 23" x 13" x 11"
