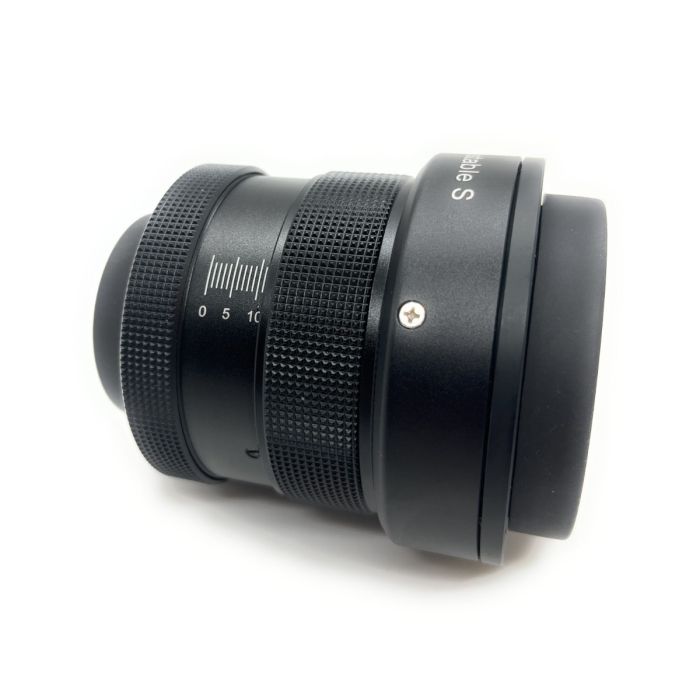

Starfield 0.8x Reducer / Adjustable Field Flattener for 70mm to 102mm Telescopes
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The Starfield 0.8x adjustable reducer and flattener makes finding the correct back focus easy! Fighting with adapters is a thing of the past! By adjusting the reducer to achieve 55mm of back focus is simple, and if more adjustment is needed for fine tuning all that is needed is a small twist even when using accessories such as filter wheels and rotators. Illumination and correction up to 42 mm sensor diameter - can be used up to full frame size
Just add up the thickness of all the accessories, plus the distance to your sensor and adjust based on the table below and then set the reducer to the number that is calculated. The reducer attaches directly to the Géar 80 / 90 mm telescope focuser by removing the Axil lock.
Using the supplied 1.5mm Allen key, loosen the three screws a half turn and then unscrew the lock. Thread the reducer onto the focuser.
Filters can be added inside the reducer.
This Reducer can also be used for other telescopes than range from 70mm to 102mm aperture
- 102 mm / focal ratio f/7 - 55 mm
- 90 mm / focal ration f/6 - 56 mm
- 80 mm / focal ratio f/7 - 57.6 mm
- 80 mm / focal ratio f/6 - 59.6 mm
- 70 mm / focal ratio f/6 - 61.6 mm
Specifications
- Design: Corrector and reducer for refractor telescopes
- Telescope connection: M63x1 external thread
- Camera connection: M48x0.75 external thread
- Reduction factor:0.8 xLenses: 3 lenses with ED element
- Coating: multi-coating and internal blackening
- Working distance: variable (adjustable)
- Adjustment range of the distance: 0-17 mm stepless
- Suitable for: Refractor telescopes from 102 mm to 155 mm aperture with focusers from 2.5"
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
The Starfield 0.8x adjustable reducer and flattener makes finding the correct back focus easy! Fighting with adapters is a thing of the past! By adjusting the reducer to achieve 55mm of back focus is simple, and if more adjustment is needed for fine tuning all that is needed is a small twist even when using accessories such as filter wheels and rotators. Illumination and correction up to 42 mm sensor diameter - can be used up to full frame size
Just add up the thickness of all the accessories, plus the distance to your sensor and adjust based on the table below and then set the reducer to the number that is calculated. The reducer attaches directly to the Géar 80 / 90 mm telescope focuser by removing the Axil lock.
Using the supplied 1.5mm Allen key, loosen the three screws a half turn and then unscrew the lock. Thread the reducer onto the focuser.
Filters can be added inside the reducer.
This Reducer can also be used for other telescopes than range from 70mm to 102mm aperture
- 102 mm / focal ratio f/7 - 55 mm
- 90 mm / focal ration f/6 - 56 mm
- 80 mm / focal ratio f/7 - 57.6 mm
- 80 mm / focal ratio f/6 - 59.6 mm
- 70 mm / focal ratio f/6 - 61.6 mm
Specifications
- Design: Corrector and reducer for refractor telescopes
- Telescope connection: M63x1 external thread
- Camera connection: M48x0.75 external thread
- Reduction factor:0.8 xLenses: 3 lenses with ED element
- Coating: multi-coating and internal blackening
- Working distance: variable (adjustable)
- Adjustment range of the distance: 0-17 mm stepless
- Suitable for: Refractor telescopes from 102 mm to 155 mm aperture with focusers from 2.5"
