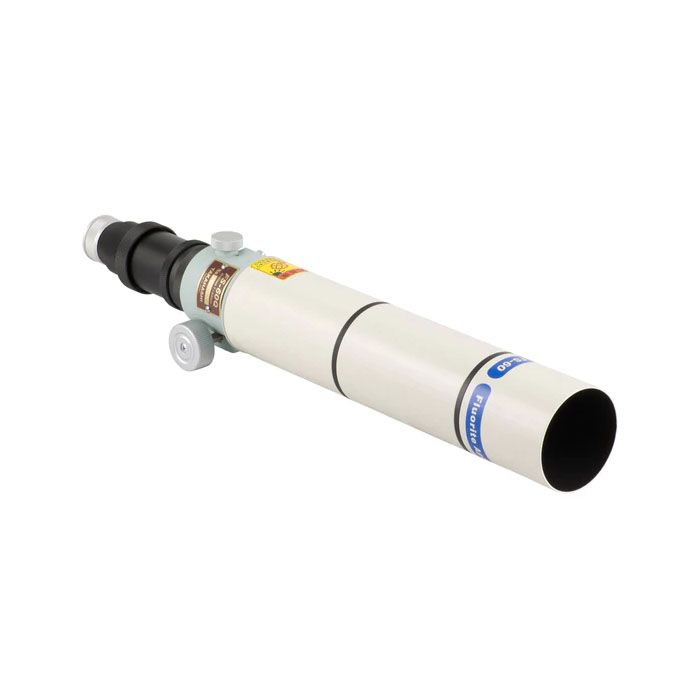

Takahashi FS-60Q Fluorite Refractor OTA with Extender CQ 1.7x
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The FS series of apochromatic refracting telescopes from Takahashi provides a balance of high performance, compact size, and low cost. At its heart is a two-element fluorite lens set that provides outstanding performance for both visual and imaging applications. The FS series makes use of several reducers, extenders and flatteners to further enhance its capabilities and performance.
The FS-60CB is a 60 mm refractor that employs a multi-coated, two element fluorite objective lens with a prime focal length of 355 mm. By attaching the Extender-CQ 1.7x, the FS-60CB is converted into an FS-60Q, a 600 mm f/10 telescope consisting of one fluorite element, with a flat field across the image circle. This versitale modular design consists of multiple sectiions including the focuser, 80mm OD tube, extender, objective lens cell and dew shield. The FS-60Q will become a FS-60CB by unthreading the objective cell/dew shield and removing the Extender-CQ 1.7x.
With the dedicated optional 0.72x reducer, the FS-60CB is converted to an f/4.2 instrument. The combination results in a 40 mm diameter image circle with 60% illumination across the entire field. Illumination is maintained at 95% or more out to a 25 mm diameter, and is 72% illuminated out to a diameter of 35 mm.
With the dedicated optional FS-60 flattener, the resulting field flatness is greatly improved out to the four corners of a full frame DSLR sensor. The resulting combination is an f/6.2, 374 mm instrument with an image circle diameter of 44 mm.
- Fluorite doublet apochromat
- Air-spaced doublet. Fluorite on the front
- Hard multicoatings
- Objective lens diameter: 60mm
- Focal length: 600mm
- Focal ratio: f/10
- Metal back distance: 162mm
- Optical tube length: 550mm
- Optical tube diameter: 80mm
- Dew shield OD: 80mm
- Weight: 1.6kg (3.52 lbs)
Optical Tube Assembly only (mount, tripod, tube holder and finder sold separately).
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
The FS series of apochromatic refracting telescopes from Takahashi provides a balance of high performance, compact size, and low cost. At its heart is a two-element fluorite lens set that provides outstanding performance for both visual and imaging applications. The FS series makes use of several reducers, extenders and flatteners to further enhance its capabilities and performance.
The FS-60CB is a 60 mm refractor that employs a multi-coated, two element fluorite objective lens with a prime focal length of 355 mm. By attaching the Extender-CQ 1.7x, the FS-60CB is converted into an FS-60Q, a 600 mm f/10 telescope consisting of one fluorite element, with a flat field across the image circle. This versitale modular design consists of multiple sectiions including the focuser, 80mm OD tube, extender, objective lens cell and dew shield. The FS-60Q will become a FS-60CB by unthreading the objective cell/dew shield and removing the Extender-CQ 1.7x.
With the dedicated optional 0.72x reducer, the FS-60CB is converted to an f/4.2 instrument. The combination results in a 40 mm diameter image circle with 60% illumination across the entire field. Illumination is maintained at 95% or more out to a 25 mm diameter, and is 72% illuminated out to a diameter of 35 mm.
With the dedicated optional FS-60 flattener, the resulting field flatness is greatly improved out to the four corners of a full frame DSLR sensor. The resulting combination is an f/6.2, 374 mm instrument with an image circle diameter of 44 mm.
- Fluorite doublet apochromat
- Air-spaced doublet. Fluorite on the front
- Hard multicoatings
- Objective lens diameter: 60mm
- Focal length: 600mm
- Focal ratio: f/10
- Metal back distance: 162mm
- Optical tube length: 550mm
- Optical tube diameter: 80mm
- Dew shield OD: 80mm
- Weight: 1.6kg (3.52 lbs)
Optical Tube Assembly only (mount, tripod, tube holder and finder sold separately).
