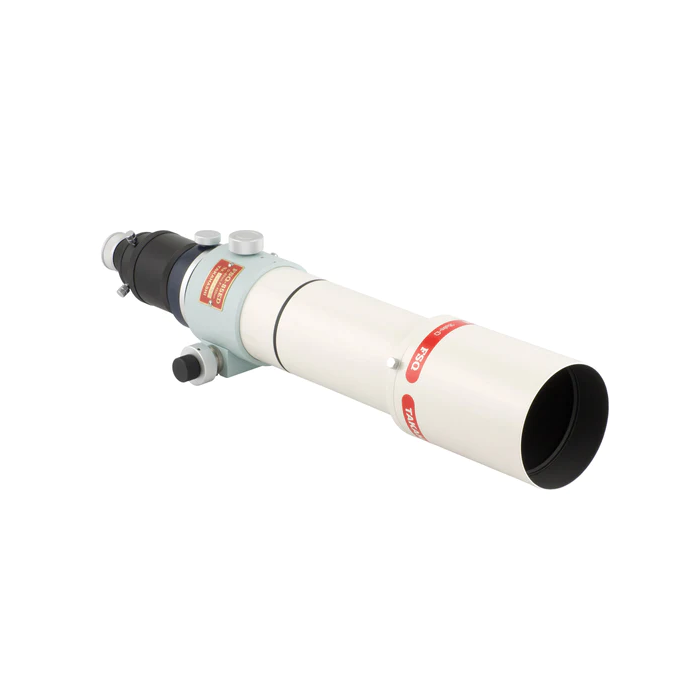

Takahashi FSQ-85EDX (Baby Q) f/5.3 Petzval Refracting Telescope with Flattener
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Perfect for travel
- Metal back distance of 197.5mm
- Corrected for APS-C sensors
- Fast Focal Ratio for light gathering efficiency
- Modular Optical performance with optional accessories
The "Baby Q" Takahashi FSQ85ED telescope is the smallest member of the FSQ Series of flat field astrographs. Designed from the ground up for digital imaging. The Baby Q is the go anywhere, portable astrograph. Weighing less than 9 pounds and measuring 12.68” [322mm] when collapsed, this telescope will fit under an airline seat or fit easily into an overhead compartment for ultimate portability.
The Takahashi FSQ-85ED telescope comes equipped with a newly designed heavy-duty 78mm focuser with a built-in camera angle adjuster. Designed for all applications in mind, the focuser will lift your equipment, and keep it there without slipping. Inside the aluminum tube, you'll find Knife-edge Baffles that block off-axis light and provide maximum contrast. The scope has a significantly longer back focus at more than 200mm to accommodate most medium format CCD systems and even allows the use of binoviewers!
Takahashi redesigned the optical system in the Takahashi FSQ85ED F5.3 Astrograph Telescope to a modified four element double ED Petzval system. By adding a second doublet inside the tube the removing any astigmatism and acts as a field flattener. The Takahashi FSQ85ED F5.3 Astrograph Telescope optical system is incredible for imaging - providing wide, flat fields, high contrast, and no lateral color. Color correction from the near UV to the near IR ensures tight stellar images across the entire color range
The Takahashi FSQ-85EDX Flattener will expand the corrected image circle from a 28mm diameter to a 44mm diameter to fully cover any full frame sensor.
Takahashi FSQ85ED "Baby Q" Specifications:
- Aperture: 85 mm (3.25")
- Back focus: 56mm
- Camera/Eyepiece Connection: Male M92x1
- Corrected Image Circle: 44mm
- Dawes Limit: 1.36 arcseconds
- Focal Length: 450 mm
- Focal Ratio: f/5.3
- Glass Type: ED
- Highest Magnification: 170x
- Light Gathering Power" 147x
- Limiting Magnitude: 13.4
- Optical Design: Petzval
- Tube Diameter: 95mm
- Tube Length: 525mm
- Dew Shield OD: 114mm
- Tube Weight: 8 lbs
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Telescope Focal Length | 401 - 500mm |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x Takahashi FSQ-85EDX (Baby Q) f/5.3 Petzval Refracting Telescope OTA
- 1x Flattener 1.01x
- Perfect for travel
- Metal back distance of 197.5mm
- Corrected for APS-C sensors
- Fast Focal Ratio for light gathering efficiency
- Modular Optical performance with optional accessories
The "Baby Q" Takahashi FSQ85ED telescope is the smallest member of the FSQ Series of flat field astrographs. Designed from the ground up for digital imaging. The Baby Q is the go anywhere, portable astrograph. Weighing less than 9 pounds and measuring 12.68” [322mm] when collapsed, this telescope will fit under an airline seat or fit easily into an overhead compartment for ultimate portability.
The Takahashi FSQ-85ED telescope comes equipped with a newly designed heavy-duty 78mm focuser with a built-in camera angle adjuster. Designed for all applications in mind, the focuser will lift your equipment, and keep it there without slipping. Inside the aluminum tube, you'll find Knife-edge Baffles that block off-axis light and provide maximum contrast. The scope has a significantly longer back focus at more than 200mm to accommodate most medium format CCD systems and even allows the use of binoviewers!
Takahashi redesigned the optical system in the Takahashi FSQ85ED F5.3 Astrograph Telescope to a modified four element double ED Petzval system. By adding a second doublet inside the tube the removing any astigmatism and acts as a field flattener. The Takahashi FSQ85ED F5.3 Astrograph Telescope optical system is incredible for imaging - providing wide, flat fields, high contrast, and no lateral color. Color correction from the near UV to the near IR ensures tight stellar images across the entire color range
The Takahashi FSQ-85EDX Flattener will expand the corrected image circle from a 28mm diameter to a 44mm diameter to fully cover any full frame sensor.
Takahashi FSQ85ED "Baby Q" Specifications:
- Aperture: 85 mm (3.25")
- Back focus: 56mm
- Camera/Eyepiece Connection: Male M92x1
- Corrected Image Circle: 44mm
- Dawes Limit: 1.36 arcseconds
- Focal Length: 450 mm
- Focal Ratio: f/5.3
- Glass Type: ED
- Highest Magnification: 170x
- Light Gathering Power" 147x
- Limiting Magnitude: 13.4
- Optical Design: Petzval
- Tube Diameter: 95mm
- Tube Length: 525mm
- Dew Shield OD: 114mm
- Tube Weight: 8 lbs
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Telescope Focal Length | 401 - 500mm |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x Takahashi FSQ-85EDX (Baby Q) f/5.3 Petzval Refracting Telescope OTA
- 1x Flattener 1.01x
Takahashi FSQ-85EDX (Baby Q) f/5.3 Petzval Refracting Telescope with Flattener # TQE08541
