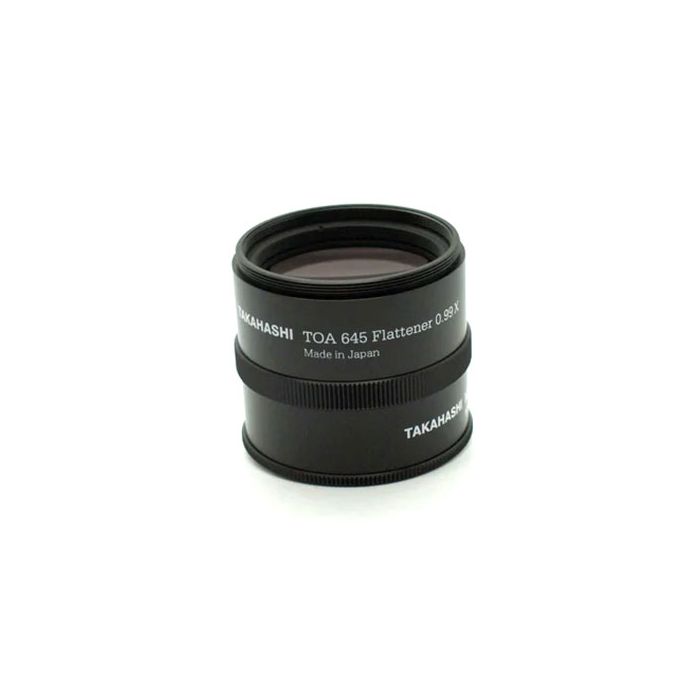

Takahashi TOA 645 Flattener 0.99x for TOA-130NS/NFB
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The newly designed 645 flattener features two fully multi-coated lens elements in two groups and provides outstanding correction out to a 60 mm image circle. Being designed specifically for the TOA-130N and TOA-150B, RMS spot diameters of 1 micron on-axis are achieved. At a 30 mm diameter image circle, the RMS spot diameter is 2 microns, and at 43 mm it is 3 microns. Even out to the full diameter of 60 mm, the RMS spot diameter is 5 microns. With these spot sizes, images are nearly aberration on even the newest small pixel sensors.
The flattener is available in two versions, one for the TOA-130N and one for the TOA-150B. Optically, the two versions are identical, with the only difference being the length of the spacer on the camera side of the adapter. Unlike the old 67 flattener, the 645 flattener has an M72 thread on the telescope side, meaning it can be used not only on the TOA-130NFB, but on the TOA-130NS as well.
For the TOA-130N with the included adapter ring (L), the flattener has a male M72 facing the telescope and a female M54 facing the camera. The metal back distance from the M54 thread is 56.2 mm. If you remove the adapter ring (L), the camera can interface with a female M72 thread with a metal back distance of 83.7 mm.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
The newly designed 645 flattener features two fully multi-coated lens elements in two groups and provides outstanding correction out to a 60 mm image circle. Being designed specifically for the TOA-130N and TOA-150B, RMS spot diameters of 1 micron on-axis are achieved. At a 30 mm diameter image circle, the RMS spot diameter is 2 microns, and at 43 mm it is 3 microns. Even out to the full diameter of 60 mm, the RMS spot diameter is 5 microns. With these spot sizes, images are nearly aberration on even the newest small pixel sensors.
The flattener is available in two versions, one for the TOA-130N and one for the TOA-150B. Optically, the two versions are identical, with the only difference being the length of the spacer on the camera side of the adapter. Unlike the old 67 flattener, the 645 flattener has an M72 thread on the telescope side, meaning it can be used not only on the TOA-130NFB, but on the TOA-130NS as well.
For the TOA-130N with the included adapter ring (L), the flattener has a male M72 facing the telescope and a female M54 facing the camera. The metal back distance from the M54 thread is 56.2 mm. If you remove the adapter ring (L), the camera can interface with a female M72 thread with a metal back distance of 83.7 mm.
