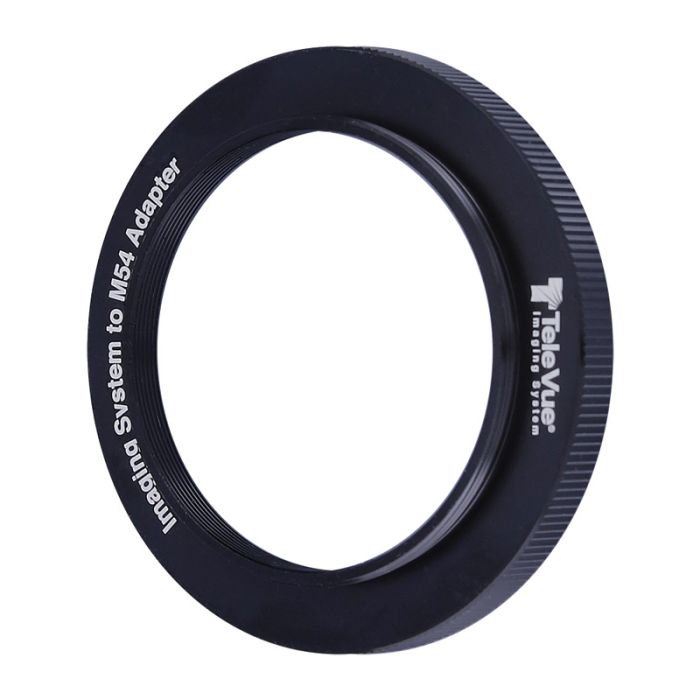

M54 Camera Adapter for Tele Vue 2.4" Imaging System (# M54-1073)
Introducing the M54 Camera Adapter for Tele Vue Imaging System. The M54 thread is becoming popular on full-frame, dedicated astro-imaging cameras and filter wheels/holders. Tele Vue's new M54 camera adapter has male M54 x 0.75mm threads on one side and their Imaging System female threads on the other. This allows for easy integration of your M54 compatible hardware with Tele Vue's Imaging System accessories and Nagler-Petzval “is” telescopes.
The M54-1073 can also be combined with non-Imaging System scopes of any brand by using a Tele Vue Imaging System Nosepiece for 2" Focuser # RAD-1074 (sold separately). The RAD-1074 slides into a 2" telescope drawtube and has a 2.4" Imaging System thread on the other side to accept any Imaging System accessory.
Agena note: Note that Tele Vue's reference to 2.4" refers to the minimum inside diameter of their focuser. The actual thread has a nominal diameter of 2.56" and features 24 threads per inch (2.56"-24tpi).
Specifications:
- Total length = 10.5mm (0.41in)
- Optical length = 6.6mm (0.26in)
- Length of male thread = 3.9mm (0.15in)
- Male thread specification = M54x0.75
- Length of female thread = Xmm (Xin)
- Female thread specification = 2.56"-24
- Clear aperture = 49.9mm (1.96in)
- Maximum outside diameter = 69.8mm (2.75")
- Weight = 0.5oz (14g)
