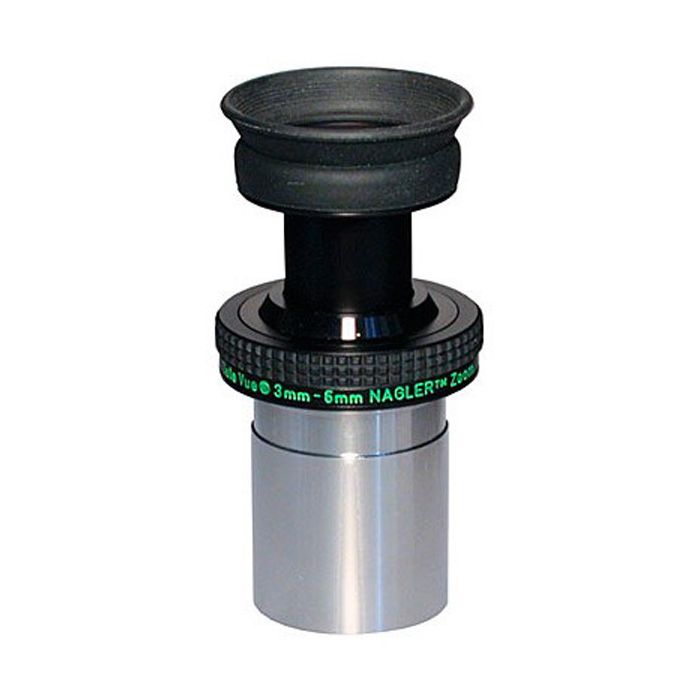

Tele Vue 1.25" Nagler Planetary Zoom Eyepiece 3-6mm
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The 3-6mm Nagler Zoom is an exceptional, specialized high-power eyepiece for dialing in the optimum power for planetary viewing with short-focal-length telescopes, such as fast apo refractors. Imaging is superb, and the apparent field stays constant throughout the zoom range. Click stops define the 6mm, 5mm, 4mm and 3mm positions. It also lets observers choose in-between focal lengths, thus giving them the ability to tune the magnification to atmospheric conditions, which is very critical for high-power viewing.
Concept / Background: I did not set out to design a zoom eyepiece, per se. David and I were discussing characteristics we'd like in a superior "planetary" eyepiece, and the zoom feature answered one of the major goals; how to obtain the highest possible useful magnification on a given night considering the ever-changing atmosphere. There were other aspects of equal importance and only the combination of all would satisfy our ethos in creating a "planetary" eyepiece: full field sharpness for any speed telescope, high contrast and transmission for natural color rendition, low scatter, and comfortable eye-relief. Being a zoom, we also concerned ourselves with making sure it was parfocal through the zoom range as well maintaining a constant apparent field of view. The one aspect we were not too concerned with was giving the eyepiece a wide AFOV.
Limiting the AFOV to 50° and the eye-relief to 10mm, we were able to create a compact physical design employing only five elements to reach the optical goals. Like other "Naglers," it utilized a negative lens group ahead of the focal plane. This permitted relatively long eye-relief for very short focal lengths. By independently moving the upper and lower lens groups, we achieved constant focus (parfocality), constant apparent field of view, and essentially constant eye-relief. Just by rotating the upper barrel, you can zoom through the power range. Click stops offer known power points for reference without needing to look at the barrel and instantaneously choose the optimum magnification for the given observing conditions.
I was sufficiently confident in the design and purposely decided to attach my name to the zoom, despite the common association between "Nagler" and 82° AFOV. I felt it was more important to stake our reputation on overcoming the "degrading zoom reputation" than maintaining the 82° assumption for "Nagler" designs.— Al Nagler
| Manufacturer | Tele Vue |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Nagler |
| Focal Length | 3-6mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 50° |
| Eye Relief (Designed) | 10mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 5 |
| Lens Groups | 3 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 42x60mm |
| Optical Design | Nagler |
| Maximum Width | 1.7" (43.2mm) |
| Field Stop Diameter | 2.6mm - 5.1mm |
| Parfocal | Yes |
| Rubber Eye Guard | Yes |
| Warranty | Limited lifetime warranty |
| Weight | 5.3 oz |
| Misc. Information | - Suitable for use with Tele Vue Bino Vue binoviewer |
| Hide Found a better Shipped Price on Frontend? | No |
