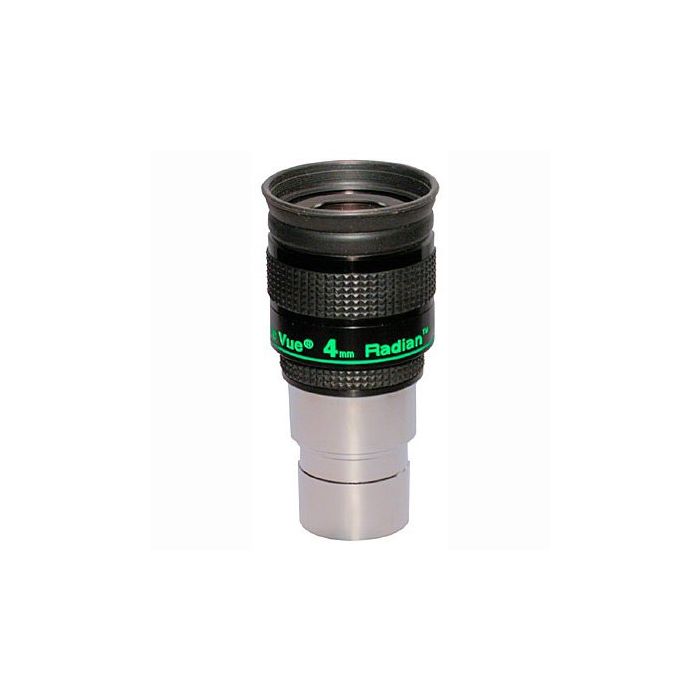

Tele Vue 1.25" Radian Eyepiece - 4mm
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Concept: In 1979, I had to sacrifice size, cost and weight in the original Nagler design to achieve what were previously mutually exclusive interests; extremely wide field, full field sharpness and comfortable eye-relief. Fortunately, users agreed that a lifetime of "spacewalk" viewing pleasure justified the investment. Fast forward to 1999. As the hobbyist population ages (along with me), more amateurs need eyeglasses. It was time to adjust the mix of parameters for observers who require or prefer long eye-relief. Under the framework of the "Nagler" design, the new field was set at 60° with a uniform 20mm eye-relief. Optimizing this new design with fully multicoated exotic glasses, we reached our new goal of full field sharpness with true orthoscopic linearity, highest contrast for critical planetary viewing, and compact size. The size and weight blend also makes the Radian preferable for small instruments and bino-viewers, and allows the convenience of being parfocal with other 1¼" Tele Vue eyepieces. — Al Nagler
Instadjust was developed for maximizing contrast while aiding in proper eye positioning for non-eyeglass wearers. It is essential, since with the Radian's long eye-relief, non-eyeglass wearers could easily get too close to the eyepiece, resulting in vignetting where edge field rays miss your pupil. The push-pull, click-stop adjustment permits fast positioning and maximum suppression of environmental stray light.
Another unique development is the Pupil Guide. It helps non-eyeglass wearers, especially novices, zero-in and stay centered on the exit pupil. The Pupil Guide is included with all Radian and Nagler Type 4s and fits under the soft, fold-down rubber eyeguard.
All Tele Vue eyepieces have proprietary tuned full multi-coatings, blackened lens edges, high index glasses, fold-down eyeguards, rubber grip rings, cover for the eyeguard, an undercut in the barrel for extra locking security, and filter threads. All Tele Vue eyepiece lines are proprietary, in-house designs manufactured to their specifications and tolerances. Every eyepiece is individually tested at Tele Vue to ensure it meets high optical and cosmetic standards.
| Manufacturer | Tele Vue |
|---|---|
| Product Banner Type | discontinued |
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Radian |
| Focal Length | 4mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 60° |
| Eye Relief (Designed) | 20mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 7 |
| Lens Groups | 5 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Discontinued Item |
| Protective Plastic Storage Container Size | Agena 65x120mm |
| Maximum Width | 1.8" (45.7mm) |
| Field Stop Diameter | 4.2mm |
| Parfocal | Yes |
| Rubber Eye Guard | Yes |
| Warranty | Limited lifetime warranty |
| Weight | 12.1 oz |
| Misc. Information | - Suitable for use with Tele Vue Bino Vue binoviewer |
| Hide Found a better Shipped Price on Frontend? | No |
