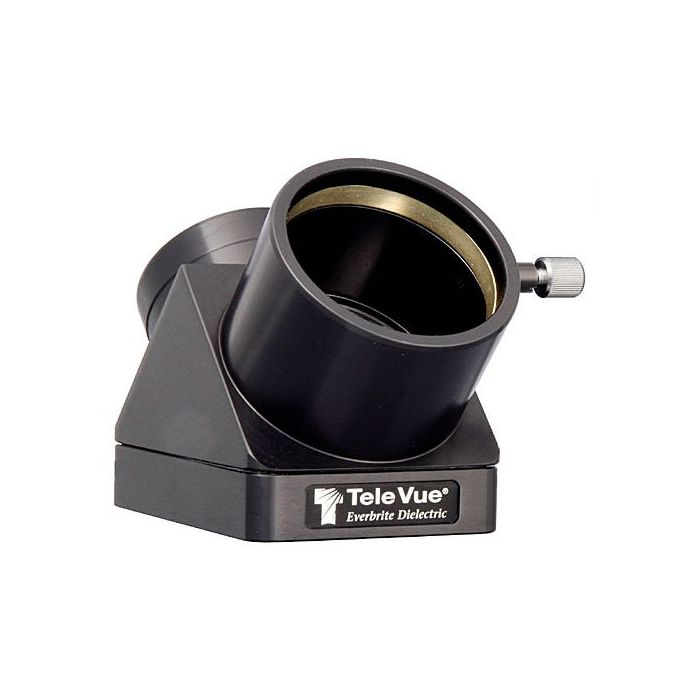

Tele Vue 2" 90-deg Everbrite Star Diagonal - Short Profile
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Whiter and brighter images. Simply put, that is the benefit the Everbrite mirror coating. This exotic, dielectric, nonmetallic coating is 99% reflective across the full visual spectrum, resulting in the "whitest," most natural image available. The coating is painstakingly applied to Pyrex with a surface accuracy of a 1/10 wave flatness.
To ensure performance, every mirror is optically inspected under conditions far more critical than a diagonal mirror is ever used in typical telescopes. In this way, Tele Vue can guaranty that the Everbrite will permit your telescope to operate at its fullest potential.
The Everbrite is offered in both 1¼" and 2" models. The diagonal bodies of each are machined from solid blocks of aluminum. Permanent alignment is assured. The one piece body construction also means heavy accessories can't force the diagonal body to "unscrew" from the barrel as with other brands. Both the 1¼" and 2" models feature brass clamp rings, anti-reflection threads and 1¼" and 48mm filter threads respectively.
SCT Adapters thread onto the standard Celestron C8 visual back to allow use of standard 2" eyepiece accessories — such as Tele Vue Everbrite diagonal mirror.
Where SCT fork swing-through clearance is an issue, such as on the Meade LX90-SC, use the Short SCT Adapter and Short Everbrite 2" Diagonal to gain 0.7" of clearance. With the Celestron f/6.3 reducer, the short 2" diagonal system acts at f/5.5. With this setup, a 27mm Panoptic yields a 1.5° true field on a C8.
A simple way to use 1¼" eyepieces in this setup is to attach Tele Vue's Flat Top 2"-1¼" Adapter to your 1¼" eyepieces. Your 1¼" eyepiece now becomes a low-profile 2" eyepiece.
Maximum insertion depth of eyepiece holder = 41mm; Stop present to avoid inserted accessory from hitting mirror = Yes.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Whiter and brighter images. Simply put, that is the benefit the Everbrite mirror coating. This exotic, dielectric, nonmetallic coating is 99% reflective across the full visual spectrum, resulting in the "whitest," most natural image available. The coating is painstakingly applied to Pyrex with a surface accuracy of a 1/10 wave flatness.
To ensure performance, every mirror is optically inspected under conditions far more critical than a diagonal mirror is ever used in typical telescopes. In this way, Tele Vue can guaranty that the Everbrite will permit your telescope to operate at its fullest potential.
The Everbrite is offered in both 1¼" and 2" models. The diagonal bodies of each are machined from solid blocks of aluminum. Permanent alignment is assured. The one piece body construction also means heavy accessories can't force the diagonal body to "unscrew" from the barrel as with other brands. Both the 1¼" and 2" models feature brass clamp rings, anti-reflection threads and 1¼" and 48mm filter threads respectively.
SCT Adapters thread onto the standard Celestron C8 visual back to allow use of standard 2" eyepiece accessories — such as Tele Vue Everbrite diagonal mirror.
Where SCT fork swing-through clearance is an issue, such as on the Meade LX90-SC, use the Short SCT Adapter and Short Everbrite 2" Diagonal to gain 0.7" of clearance. With the Celestron f/6.3 reducer, the short 2" diagonal system acts at f/5.5. With this setup, a 27mm Panoptic yields a 1.5° true field on a C8.
A simple way to use 1¼" eyepieces in this setup is to attach Tele Vue's Flat Top 2"-1¼" Adapter to your 1¼" eyepieces. Your 1¼" eyepiece now becomes a low-profile 2" eyepiece.
Maximum insertion depth of eyepiece holder = 41mm; Stop present to avoid inserted accessory from hitting mirror = Yes.
