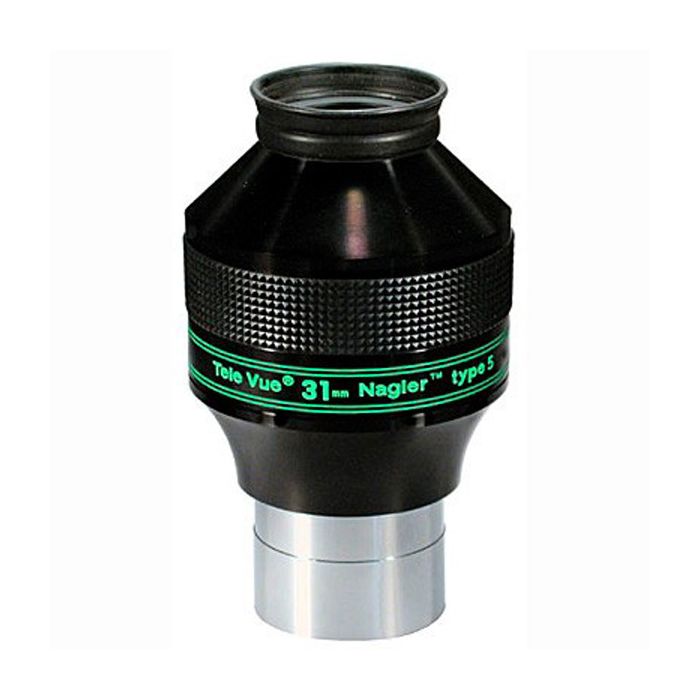

Tele Vue 2" Nagler Type 5 Eyepiece - 31mm
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
With the TeleVue Type 5 Nagler 31mm eyepiece, the unique 6-element Type 5 design using four exotic glasses maintains the contrast advancement of the Type 4s while achieving a true field area 82% larger than the 22mm Type 4! Owners of fast Dobsonian/Newtonians can enjoy a larger true field, free of secondary shadowing, than ever before. For example, a 12.5", f/4.5 scope with a Paracorr will deliver a 1.5 degree field (3 Moon diameters), at 53x with a 6mm exit pupil.
All Tele Vue Nagler eyepieces have proprietary tuned full multi-coatings, blackened lens edges, high index glasses, fold-down eyeguards, rubber grip rings, cover for the eyeguard, an undercut in the barrel for extra locking security, and filter threads. All Tele Vue eyepiece lines are proprietary, in-house designs manufactured to their specifications and tolerances. Every eyepiece is individually tested at Tele Vue to ensure it meets high optical and cosmetic standards.
Take a "spacewalk" across a wide, sharp 82° apparent field
Compare a penny to a half dollar to see the relative size between a 50° and 82° apparent field - almost 3 times the area difference! And while others boast of impressive apparent field sizes, Tele Vue's philosophy of "showing no field unless it's fine" stresses full field image quality as the ingredient for impressive views. Blackened lens edges, anti-reflection threads and rubber eyeguards deliver maximum contrast. Adapter skirts for 2" focusers on larger 1¼" models and rubber grip rings are additional Tele Vue "firsts". Even 2"/1¼" barrel models have an additional feature allowing the 2" extension tube (EBX-2120, sold separately) to be screwed on, which permits use of 2" filters as well as 1¼". 100% full field visual inspection on TeleVue's flat-field test instruments guarantees the performance of every Tele Vue eyepiece.
Concept: "You may know there's a long history of naming eyepieces after their designers: Kellner, Erfle and Plossl, to name a few. In the late 70's I designed an eyepiece sufficiently radical that I dared attach my name to it. Even today, I must admit a little discomfort when talking about "Nagler" eyepieces.
With "Naglers", my aim is to approach the wide angle perspective of naked eye vision, while maintaining the highest degree of sharpness, contrast, and viewing comfort. The goal is to allow the telescope to virtually "disappear," leaving the impact of "spacewalk" viewing." — Al Nagler
The Type-5 permits the largest true field possible (31mm has 42mm field stop), while the shorter focal length Type-6 models are parfocal, with similiar size and weight and all with a comfortable 12mm eye relief.
The Type-4 models feature about 18mm of eye relief and with the "instajust" eyeguard are best for eyeglass wearers or Dioptrx users in their 22, 17, 12mmfocal length range.
| Manufacturer | Tele Vue |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Nalger |
| Focal Length | 31mm |
| Barrel Size | 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 82° |
| Eye Relief (Designed) | 19mm |
| Filter Threads | Standard 2" Filter Thread (M48 x 0.75) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 85x120mm |
| Optical Design | Nagler |
| Maximum Width | 3.3" (83.8mm) |
| Field Stop Diameter | 42.0mm |
| Parfocal | No |
| Rubber Eye Guard | Yes |
| Warranty | Limited lifetime warranty |
| Weight | 35.2 oz |
| Misc. Information | - Suitable for use with Tele Vue Dioptrx / digiscoping |
| Hide Found a better Shipped Price on Frontend? | No |
