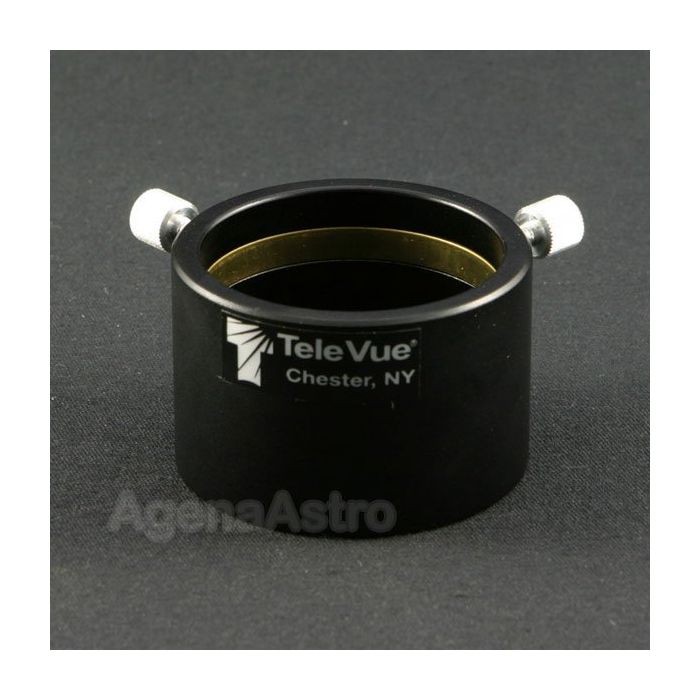

Tele Vue SCT Adapter (Visual Back) for 2" Diagonals - Short
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Tele Vue's Short 2" SCT Adapter # ACS-0004 allows you to use 2" star / refractor type diagonals with your SCT telescope. It attaches to the standard male SCT thread (2" dia x 24TPI) found on the rear of many SCT telescopes and converts it into a 2" barrel into which you can insert your diagonal.
For use with the new Short Everbrite Diagonal. Where SCT fork swing-through clearance is an issue, such as on the Meade LX90-SC, use this Short SCT Adapter and Short Everbrite 2" Diagonal to gain 0.7" of clearance. This adapter (new version) features a brass compression ring so that inserted diagonals are not marred by set screw marks, and dual large locking thumbscrews with thread extensions on the sides of the adapter to minimize the risk of the screws falling out.
Specifications:
- Total Height = 1.57" / 39.8mm
- Maximum Outside Diameter = 2.40" / 60.9mm (excludes thumbscrews and thread extensions)
- Weight = 3.5oz.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Tele Vue's Short 2" SCT Adapter # ACS-0004 allows you to use 2" star / refractor type diagonals with your SCT telescope. It attaches to the standard male SCT thread (2" dia x 24TPI) found on the rear of many SCT telescopes and converts it into a 2" barrel into which you can insert your diagonal.
For use with the new Short Everbrite Diagonal. Where SCT fork swing-through clearance is an issue, such as on the Meade LX90-SC, use this Short SCT Adapter and Short Everbrite 2" Diagonal to gain 0.7" of clearance. This adapter (new version) features a brass compression ring so that inserted diagonals are not marred by set screw marks, and dual large locking thumbscrews with thread extensions on the sides of the adapter to minimize the risk of the screws falling out.
Specifications:
- Total Height = 1.57" / 39.8mm
- Maximum Outside Diameter = 2.40" / 60.9mm (excludes thumbscrews and thread extensions)
- Weight = 3.5oz.
