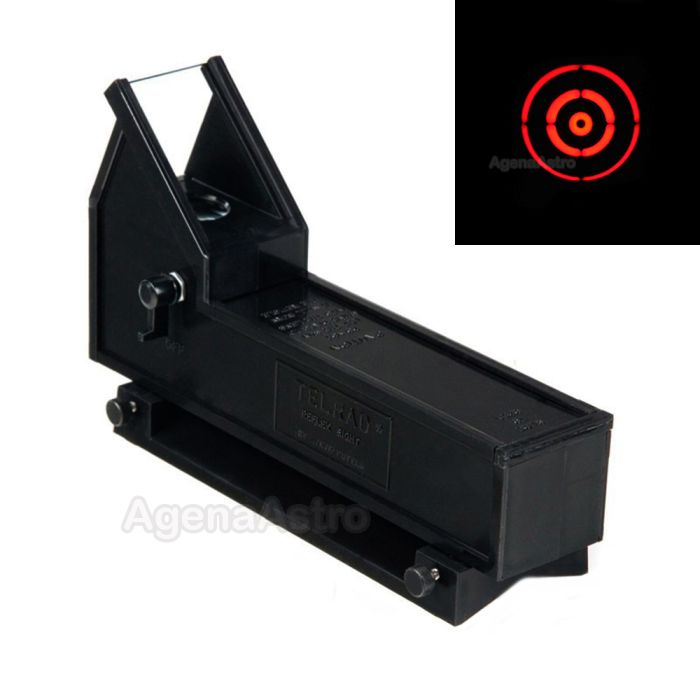

Telrad Telescope Reflex Finder with Mounting Base and Red Illumination
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
To see objects through a telescope it must be pointed to exactly the right spot. The Telrad is a sight for pointing telescopes to that "right spot." Through a Telrad you see the sky the way the star charts show it. Not a small upside-down and magnified portion of it, but the "real sky" with three lighted target rings set against it. The large ring is 4 degrees across. It outlines the area covered by a finder scope. The center ring is 2 degrees in diameter. The small ring is 0.5 degrees across and outlines the area seen in the telescope.
Select an object on the chart and note its position among the visible stars. Then set the Telrad rings on that spot in the sky. A quick rough setting will put the object in the field of a finder scope. With no finder, or a faint object that won't show, use a more careful setting to put the object in the field of the telescope.
The reticle pattern in this model is illuminated by a red LED. A separate version of the Telrad is available in which the user can select between red or green illumination.
The Telrad is 8.15" long and 2.24" wide (at the base) so please make sure that you have sufficient clear area on your telescope tube to mount this as this could be a challenge on very short OTAs. The Telrad weighs a mere 11 ounces due to its lightweight yet robust ABS plastic construction, and mounts without drilling holes using the double-sided tape on the bottom of the Telrad base. It unlocks from its base for separate storage. This version runs on two AA batteries (not included).
The Telrad Sight has also found wide adoption in the stage lighting industry. It works very well as a follow spotlight sighting device for professional concert and stage spot light operators. However, a new Telrad version with brighter, white illumination is now available for those applications.
Specifications:
- Magnification: 1x (Zero power)
- Weight (with 2 AA batteries, not included): 10.1 oz.
- Total length: 8.15" / 207mm
- Total height (with base): 4.92" / 125mm
- Maximum width (excluding base screws but with base on): 2.24" / 57mm
- Maximum width (without base): 1.81" / 46mm
- Viewing window dimensions (full lengh, not vertical height): 2.52" x 1.42" (64mm x 36mm)
- Base thumbscrew specification: 6-32, 0.5" long (2x)
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
To see objects through a telescope it must be pointed to exactly the right spot. The Telrad is a sight for pointing telescopes to that "right spot." Through a Telrad you see the sky the way the star charts show it. Not a small upside-down and magnified portion of it, but the "real sky" with three lighted target rings set against it. The large ring is 4 degrees across. It outlines the area covered by a finder scope. The center ring is 2 degrees in diameter. The small ring is 0.5 degrees across and outlines the area seen in the telescope.
Select an object on the chart and note its position among the visible stars. Then set the Telrad rings on that spot in the sky. A quick rough setting will put the object in the field of a finder scope. With no finder, or a faint object that won't show, use a more careful setting to put the object in the field of the telescope.
The reticle pattern in this model is illuminated by a red LED. A separate version of the Telrad is available in which the user can select between red or green illumination.
The Telrad is 8.15" long and 2.24" wide (at the base) so please make sure that you have sufficient clear area on your telescope tube to mount this as this could be a challenge on very short OTAs. The Telrad weighs a mere 11 ounces due to its lightweight yet robust ABS plastic construction, and mounts without drilling holes using the double-sided tape on the bottom of the Telrad base. It unlocks from its base for separate storage. This version runs on two AA batteries (not included).
The Telrad Sight has also found wide adoption in the stage lighting industry. It works very well as a follow spotlight sighting device for professional concert and stage spot light operators. However, a new Telrad version with brighter, white illumination is now available for those applications.
Specifications:
- Magnification: 1x (Zero power)
- Weight (with 2 AA batteries, not included): 10.1 oz.
- Total length: 8.15" / 207mm
- Total height (with base): 4.92" / 125mm
- Maximum width (excluding base screws but with base on): 2.24" / 57mm
- Maximum width (without base): 1.81" / 46mm
- Viewing window dimensions (full lengh, not vertical height): 2.52" x 1.42" (64mm x 36mm)
- Base thumbscrew specification: 6-32, 0.5" long (2x)
