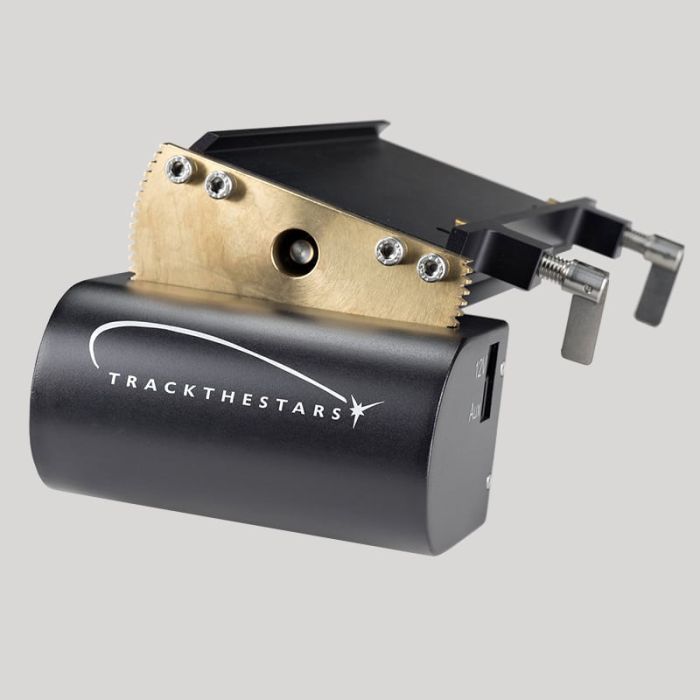

Track The Stars Telescope rOTAtor for TTS-160 Panther Mount
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Equatorial tracking but NO polar alignment
Long exposure astrophotography without polar alignment. Too good to be true… No. With the Telescope rOTAtor installed on the TTS160 Panther mount that’s exactly what you can do. And it’s so simple that beginners can use it and yet so precise that it can match the most experienced experts.
Install and forget
The Telescope rOTAtor is easily installed by inserting the bottom dovetail into the saddle on the telescope mount. The top of the rOTAtor has its dovetail saddle where the telescope is mounted. Connect the power and signal cable and you are ready to take images. The internal software in the mount head controls the speed and direction of the rOTAtor.
rOTAtor
The telescope rOTAtor rotates the entire Optical Tube Assembly or the OTA. This means that any equipment installed on the OTA is rOTAted too. Therefore you can use a piggybacked guide telescope for guiding or taking long-exposure images with telephoto lenses mounted on top of the OTA.
Set up, point and shoot
When using the TTS-160 Panther with the Telescope rOTAtor astrophotography is fast and simple. Setup the mount with the rOTAtor without doing any levelling. Align on two stars and the combined system is ready for imaging. The rOTAtor will automatically wind to the correct side and start derotating when the object has been centred. Guiding is done via the ST4 compatible port on the mount.
Specifications
- Weight: 1.9 kg
- Materials: Aluminum, black hard anodized
- Drive Gear: 100 mm brass worm wheel and stainless steel worm
- Drive Motors: DC Servo motor with high resolution encoder
- Dovetail Size: 3 inch Losmandy style dovetail plate beneath and 3 inch Losmandy style dovetail saddle at the top
- Connectors: Connector for 12V supply (same as mount head supply via split cable), Control signal connector for connection to mount head
- Rotation Angle: 28 Degrees – 1-3 hours rotation (single subs can be as long as that). Rewinds in few seconds to continue imaging.
- Telescope Capacity: 20 kg
- Imaging Capacity: 20 kg (44 lbs)
- Power Supply Needed: 12V 1A – must be the same battery as the one used for the mount head. NEVER use two independant batteries.
- Transport Bag Size: Diameter 180mm (7inch), Length 300mm (12 inch)
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x Telescope rOTAtor unit
- 1x Split power cable
- 1x Control interface cable
- 1x Track The Stars medium size transport bag
