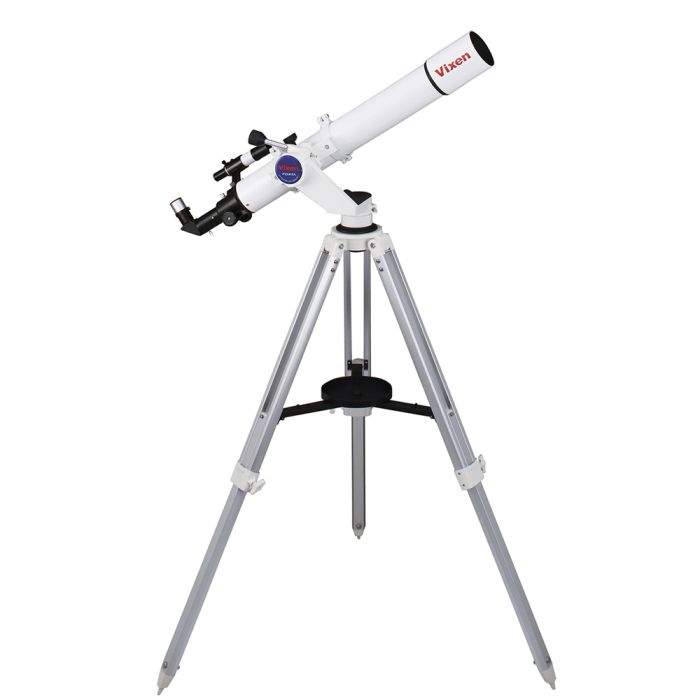

Vixen A80Mf 80mm f/11.4 Refractor Telescope with Porta II Mount
Availability: Item has been discontinued by Agena and we no longer carry this item
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
I. Vixen A80Mf Refractor Telescope:
Introductory scope with larger aperture for great resolution. A perfect telescope for the beginner astronomer or an ideal first telescope for a child. The A80Mf is an Achromatic Refractor with 80mm (3.2") of aperture. Its focal length is 910mm (3 ft.) with an f ratio of 11.4. Its light gathering is 130 times better than the human eye and has a maximum (realistic) power of 144X. It is easily transported to your observing site for quick set up and viewing. It weighs about 5.5 lbs. and is covered by Vixen's 5 Year Warranty.
Specifications:
- Optical Design: Achromatic Refractor
- Aperture: 80mm
- Focal Length: 910mm
- Focal Ratio: f/11.4
- Resolving Power: 1.45 arc sec
- Limiting Magnitude: 11.3
- Light Gathering Power: 131x
- Finder Scope: 6x30mm Finder; Field of View 7°
- Visual Back: 31.7mm Push Fit 33.8
- Tube Diameter: 3.5" (90mm)
- Optical Tube Weight: 5.5 lb
- Accessories: PL20mm; PL6.3mm; 31.7mm Erect Image Diagonal; Dew Shield; Tube Rings and Dovetail Plate
II. Vixen Porta II Mount:
The Porta II is a solid altazimuth mount with a 20lb payload capacity and features Slow Motion Flexible Handles to minimize vibrations and keep your view sharp. This is very useful in searching and tracking celestial objects. The Sky at Night says: "When moving the telescope around the sky with this mount, we found any vibrations quickly dampened down. The whole system was very stable, even when the tripod was at its maximum extended height"*. The mount head is easily removed to allow for a switch to a heavier tripod. In addition, this is a great mount for terrestrial viewing. With no locks or clutches, our gear drives make it a simple matter to precisely track a planet or a ship on the horizon by turning the elevation and/or azimuth control handles. The Porta II Mount features slow motion control of both axes, solid central bolt for easy tripod change, flex handles and accessory tray.
The “World-Standard” dovetail attachment system on PORTA II was developed by Vixen. This allows the PORTA II to accept various dovetail mounted optical tubes and binoculars.
Specifications:
- Mount: Port II Altazimuth Mount
- Tripod: Aluminum 2 section adjustable; 35.4" to 51" (90cm to 130cm)
- Mount Weight: 15 lbs including tripod
- Load Capacity: 20 lbs
- Vertical and Horizontal Slow Motion: 120 Tooth Wheel Gears whole circle movement; Friction control system
- Telescope Attachment: Dove Tail Plate
- Accessories: Flexible Slow Motion Handles (2), Accessory Tray, Tool Kit
