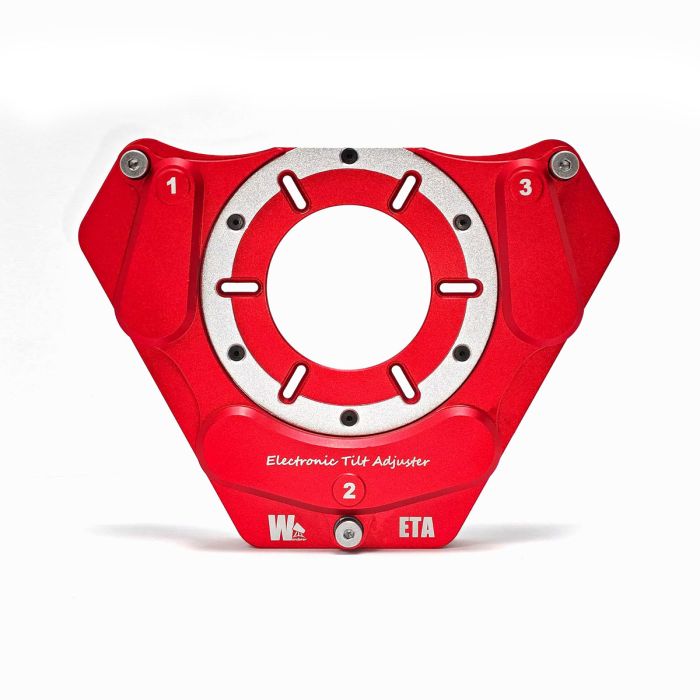

WandererAstro Wanderer ETA M54 Electronic Tilt Adjuster
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Sensor Tilt: The Problem
Astrophotographers know that sensor tilt can be frustrating to deal with. Sensor tilt occurs when heavy cameras and filter wheels are sagging under their own weight off the end of the focuser. This causes the sensor to not be perfectly flush with the focal plane, resulting in poorly shaped stars in areas of the image. Traditionally, astrophotographers have had to adjust push / pull screws one at a time, take a test image, and see if the star shapes improve. This can be a frustrating guess-and-check troubleshooting process that at a minimum takes hours, but usually takes many nights to solve.
Wanderer Electronic Tilt Adjuster: The Solution
Introducing the Wanderer Astro Electronic Tilt Adjuster, or ETA for short! This brilliant device automates the entire process of correcting dreaded sensor tilt. By using a combination of adjustment motors and encoders, it can correct sensor tilt on even the most complex image trains in just a few minutes!
How Does the Wanderer ETA Work?
The Wanderer ETA features M54 threads and permanently inserts into your image train near the focuser. The ETA features three motors that are evenly spaced 120º apart, and each one can independently move each part of the image train outward or inward. When paired with software like NINA that can measure star shapes and Wanderer's own software, the ETA can make micro adjustments as small as 0.3 microns to precisely correct for tilt.
Unique Patented Structural Design
With an ultra-thin thickness, the Wanderer ETA occupies only 5mm of back focus or focuser travel when directly connected to the OAG or camera using screws. It weighs just 470g. Additionally, it features a dual-layer nested structure that eliminates any light leakage.
55mm Back Focus Possible!
The Wanderer ETA can be directly mounted in front of an OAG or camera using screws and, in most cases, still maintain a 55mm back focus. For detailed installation instructions and device compatibility, please refer to the user manual.
Three-Point Electronic Tilt Adjustment
The Wanderer ETA features three independent adjustment motors and three high-precision encoders, offering an adjustment range of 1.2mm with a motor resolution of 0.3 micron per step and a positioning accuracy of up to 2 microns. Compared to traditional manual tilters, this achieves a precision several orders of magnitude higher, fully meeting the demanding tilt and back focus adjustment requirements of fast focal ratio systems and large-format cameras.
Low Temperature Resistant Design
Tested under extreme conditions, the Wanderer ETA remains fully operational even at -20°C (-4℉), making it resilient against harsh winter environments.
Professional Design
The Wanderer ETA is composed of nearly 1,000 curved surfaces and over 50 components. Every detail has undergone professional analysis, precise calculations, and countless optimizations to ensure the highest level of rigidity.
Unparalleled Aesthetic Design
WandererAstro's aesthetic design never disappoints. Every rounded corner and every carefully sculpted curve make the Wanderer ETA not just a precision instrument but also a beautifully crafted piece of art.
Software Support
The WandererEmpire software provides an excellent control and visualization interface for the Wanderer ETA.
Note: The camera, OAG, and other equipment shown in this page are for installation demonstration purposes only and are not included with the Wanderer ETA.
Specifications
- Power: Powered by USB (5V 0.5A)
- USB: USB2.0 Type-B (Cable included)
- Weight: 470g
- Payload: ≤3kg
- Back Focus (Focuser Travel) Consumption: 5mm when directly connected to OAG via screws
- Travel: 1.2mm
- Accuracy: 0.002mm (2 microns)
- Motor: 0.3 microns/step
- Operating temperature: -25°C-50°C
*Please note that this product cannot be controlled through the ZWO ASIAIR app. WandererAstro's flat panels, camera rotators, dust covers and power boxes are controlled via their WandererEmpire app or other software that supports ASCOM such as N.I.N.A.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Wanderer ETA M54
- USB 2.0 cable (1m)
- M2.5x4mm screws
- M2.5x10mm screws
- M48 female to M54 male adapter (0mm)
