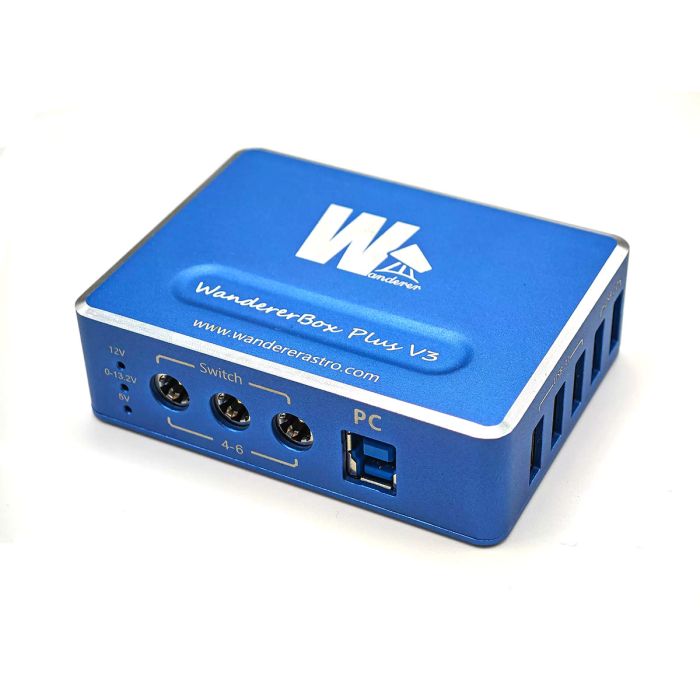

WandererAstro Wanderer Box Plus V3
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
WandererBox Plus V3
Power Ports & Switches
- 1x Normally open DC output
- DC5525, internally directly connected to the input port, maximum 10A.
- 1x 5-13.2V regulator output
- DC5521, adjustable voltage, switchable, maximum current 5A.
- 1x Dew heater (or switch) output
- DC5521, can control the power of dew heater, can also be used as a switch, maximum current 8A.
- 3x DC switch output
- DC551, switchable, maximum total current 8A.
USB Ports
- 2x USB3.1 outputs can be used to connect cameras for high-speed readout.
- 3x USB2.0 outputs can be used to connect other devices such as equatorial mounts, WandererCovers, etc.
- All USB output ports share a 5V 5A power supply capacity, which can power a USB dew heater.
- Maximum 5A continuous current.
- Built in 12V-5V step-down module.
Power Input
The 5-13.2V adjustable regulator (can be turned off) easily copes with input voltage changes and ensures stable power supply to the camera.
Adjustable voltage meets the requirements of different devices.
Long input power cables may cause voltage drops, and the power supply voltage of remote observatories may also be unstable. This DC port will maintain a stable set voltage, which is essential for stable operation of the camera. Some cameras may have image readout problem when the voltage is lower than 12V or unstable. **The operating voltage of some devices (such as most SLR cameras) is not 12V, and the adjustment range of 5 to 13.2V is suitable for most devices.
This DC port can also be switched on and off.
Automatic and intelligent Dew Heater Control
- 1x DHT22 temperature & humidity sensor
- 1x temperature probe
- Manual control: Manually adjust the duty cycle of the PWM port to control the power of the dew heater (0-255).
- Constant temperature control: WandererBox will keep the dew heater temperature constant at the set value.
- Dew point temperature difference mode: WandererBox will regulate the temperature of the dew heater to maintain a fixed value higher than the dew point. It saves power and prevents condensation effectively. It also ensures that the dew heater does not overheat, ensuring good image quality.
Other Features
- Excellent visualization interface.
- Voltage, current, dew point temperature monitoring and other information are clear at a glance.
- Maximize the security of WandererBox itself and connected devices
- Electrophoresis, Short circuit, Overcurrent and Electrostatic protection
- The environment of a remote observatory can be harsh, and the normal operation of the equipment is very important. WandererAstro specially designed the WandererBox series to protect the safety and stability of the equipment as much as possible.
- Working status is clear, with power indicator lights.
- The power light is dim and won't affect your dark environment. Of course, you can also cover the power light.
- M6 and M4 threaded holes on the bottom
- You can use the Mini Dovetail Plate to secure the Wanderer Dew Terminator to your dovetail slot. You can also use screws to fix it to a dovetail board or any structure with holes.
Specifications
- Power Input:
- 12 V
- DC 5.5x2.5mm
- 10A max
- DC Output:
- DC1 (5525):
- Always On 12V Output
- Cannot be switched on/off
- 10A max
- DC2 (5521):
- 0-13.2 V Adjustable Regulated Output
- Can be switched on/off together
- 3A max in total
- DC3 (5521):
- PWM/Switch Output
- Can be switched on/off
- PWM control possible
- 8A max
- DC4-6 (5221):
- 12V Switch Output
- Can be switched on/off together
- 8A max in total
- DC1 (5525):
- USB Hub
- 2x USB3.1
- 3x USB2.0
- Can be switched on/off together
- USB Power Supply: 5V 5A
- Voltage/Current Monitor
- Input current/voltage monitor
- Size (cm): 8.6 x 6.5 x 2.6
- Weight: 150g
- Environment Sensor (included)
- 1 x DHT22 temperature & humidity sensor
- 1x DS18B20 temperature probe
- Dew Heater Control: 1 dew heater
- Dewpoint temperature difference control
- Constant temperature control
- Manual control
- ASCOM Compatibility: Yes
- Screw Holes: M6 and M4 screw holes, 4mm deep
Please note that this product cannot be controlled through the ZWO ASIAIR app. WandererAstro's flat panels, camera rotators, dust covers and power boxes are controlled via their WandererEmpire app or other software that supports ASCOM such as N.I.N.A.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x WandererBox Plus V3
- 1x USB3.0 data cable (0.5m)
- 1x DC5521 to RCA adapter cable (0.1m)
- 1x Temp probe (1m)
- 1x Temp and humidity sensor (1m)
- 1x 5521 female to 5525 male adapter
