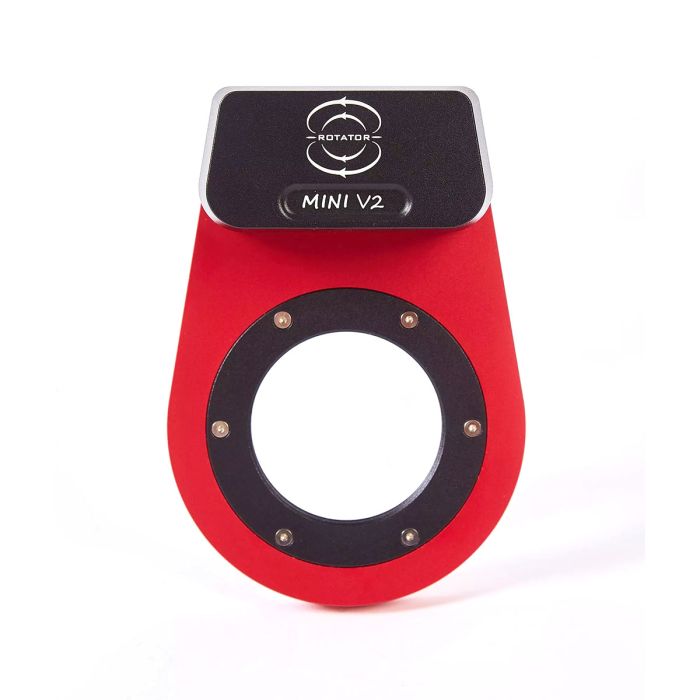

WandererAstro Wanderer Rotator Mini V2 (M54)
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
WandererAstro Wanderer Rotator Mini V2 Review
Wanderer Rotator Mini V2 - a lightweight and low-profile M54 rotator
Compared with the Mini V1, a 12V power input port is added to improve the stability of the power supply
(Note: 12V power supply is required)
High Payload
Maximum payload of 5 Nm*
*The torque generated by the imaging equipment to the rotator must be less than 5 Nm. For example, if the center of gravity of the equipment is 10cm away from the rotator, the maximum weight of the equipment should not exceed 5kg.
Fast and Accurate
Rotation rate: 4.5 degrees/sec
Angular resolution: 0.01 degree
Ultra lightweight
Thanks to the excellent mechanical design and the use of high-strength materials, it weighs only 420g.
Ultra low-profile
At just 10mm thick, the thinnest M54 rotator yet, this is a marvel of design and manufacturing.
Please note that the length of the M54 male thread on either side must not exceed 5mm. The sum of the lengths of the M54 male threads on both sides must not equal 10mm. If exceeded, use a washer to reduce the effective thread length.
Zero flexure guaranteed
Patented magnetic design
Absolute zero flexure is guaranteed at any PA
De-rotation
For users of altazimuth and Dobson telescopes
Connect six devices simultaneously!
The ASCOM driver supports simultaneous and independent connection of up to six WandererRotators of any model!
Specifications
- Connectivity: USB2.0 Type B
- Power: 12V DC5521 0.5A max
- Clear aperture: M54
- Installation: Double-sided M54 female thread
- Thickness: 10mm (From M54 female thread to M54 female thread)
- Weight: 420g
- Rotation rate: About 4.5 degrees/sec
- Payload: The torque generated by the imaging equipment to the rotator must be less than 5 Nm
Please note that this product cannot be controlled through the ZWO ASIAIR app. WandererAstro's flat panels, camera rotators, dust covers and power boxes are controlled via their WandererEmpire app or other software that supports ASCOM such as N.I.N.A.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1x WandererRotator Mini V2
- 1x USB 2.0 cable (1m)
- 1x DC5521 male to male power cable (1m)
