- The newly designed WD-17 main body weighs only 9.5lb (4.3kg) and comes with a hard case, so you can take it anywhere!
- Strain wave drive operation means heavy counterweights aren't required, and backlash is negligible.
- Impressive payload capacity at 3 times its weight, up to 29lb (13.5kg) without using a counterweight.
- Built-in GPS with Beidou positioning system automatically determines your location and time, which is easily synced with software like NINA.
- Mount head only. Compatible tripods, pier adapters and counterweights are all sold separately.

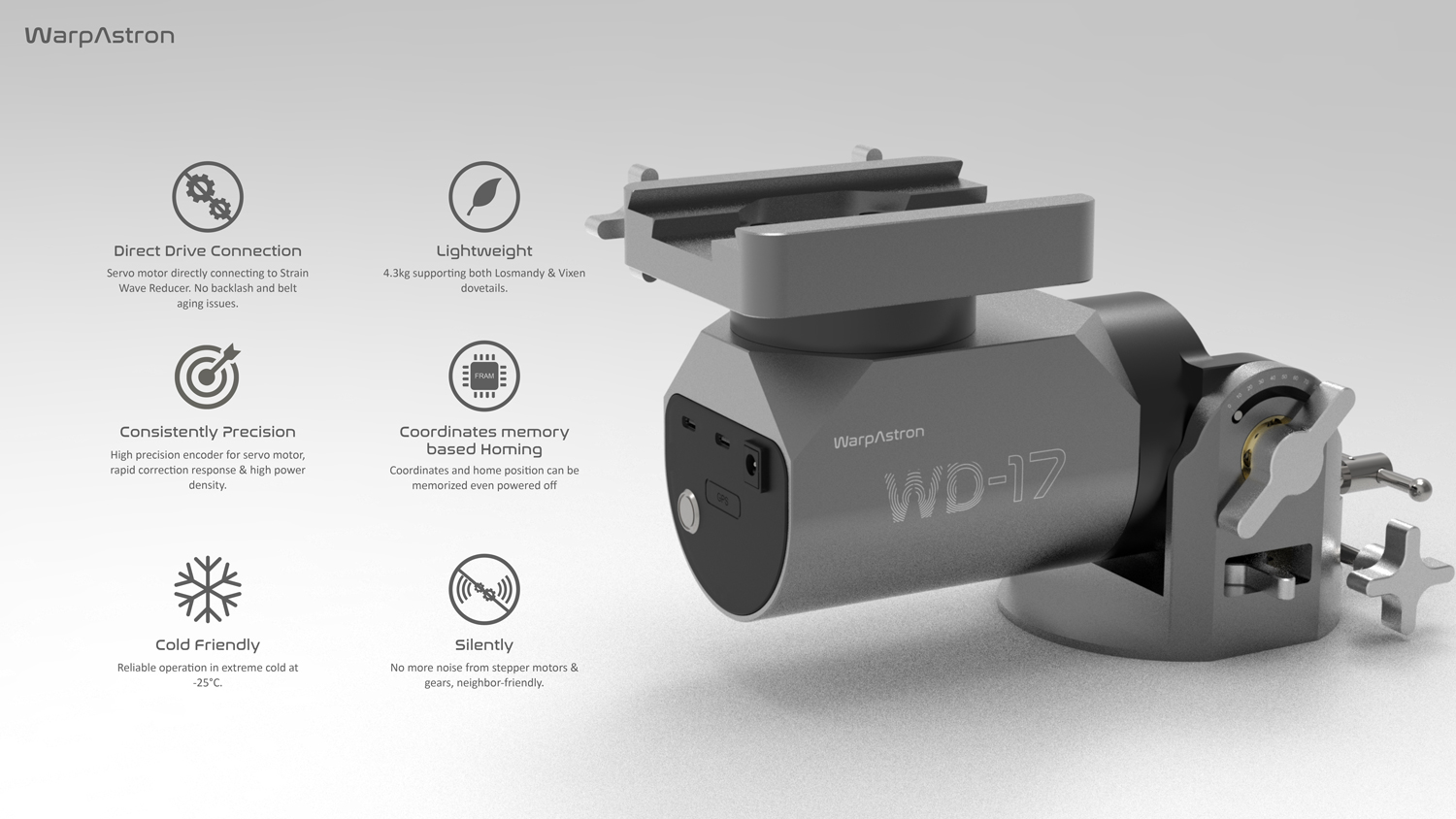

The WarpDrive WD-17: The Little Brother with Big Potential
Are you an astronomy enthusiast or an astrophotographer looking for a mount that combines versatility, precision, and ease of use? Look no further than the durable WarpAstron WarpDrive WD-17. This state-of-the-art mount, crafted from durable materials like stainless steel, brass, and ABS is built to last and designed to elevate your stargazing and astrophotography experience!
The mount includes a built-in GPS positioning module for automatic positioning, making operation in the field a breeze. With its high-precision performance and Vixen and Losmandy dovetail support, the WarpAstron WD-17 is a fantastic choice for both novice and experienced astrophotographers!
Review of WD-17’s Big Brother the WarpDrive WD-20
Agena Astro Affiliate Cuiv, The Lazy Geek goes over everything you need to know about the WarpAstron WarpDrive-20, including:
- what makes the WD-20 so special
- operation and how the motor works
- software, polar aligning and noise
- imaging and guiding performance.
Compact with High Payload Capacity
The WarpAstron WarpDrive WD-17 mount employs a Strain Wave Drive for the RA axis and a Strain Wave Reducer for the DEC axis, powered by a BLDC Servo Motor.
Despite its lightweight design at 9.5lbs (4.3kg), it can support a substantial payload of up to 44lbs (20kg) with counterweights, making it compatible with popular medium to large telescopes.
The WD-17 has Whisper-quiet Operation & Precise Slewing
Experience the ninja-silent operation of the WarpAstron WarpDrive WD-17! The WD-17’s noiseless performance is due to its innovative strain wave gearing system. Unlike traditional gear systems, this design avoids direct metal-on-metal contact, significantly reducing noise while ensuring precise and efficient performance.

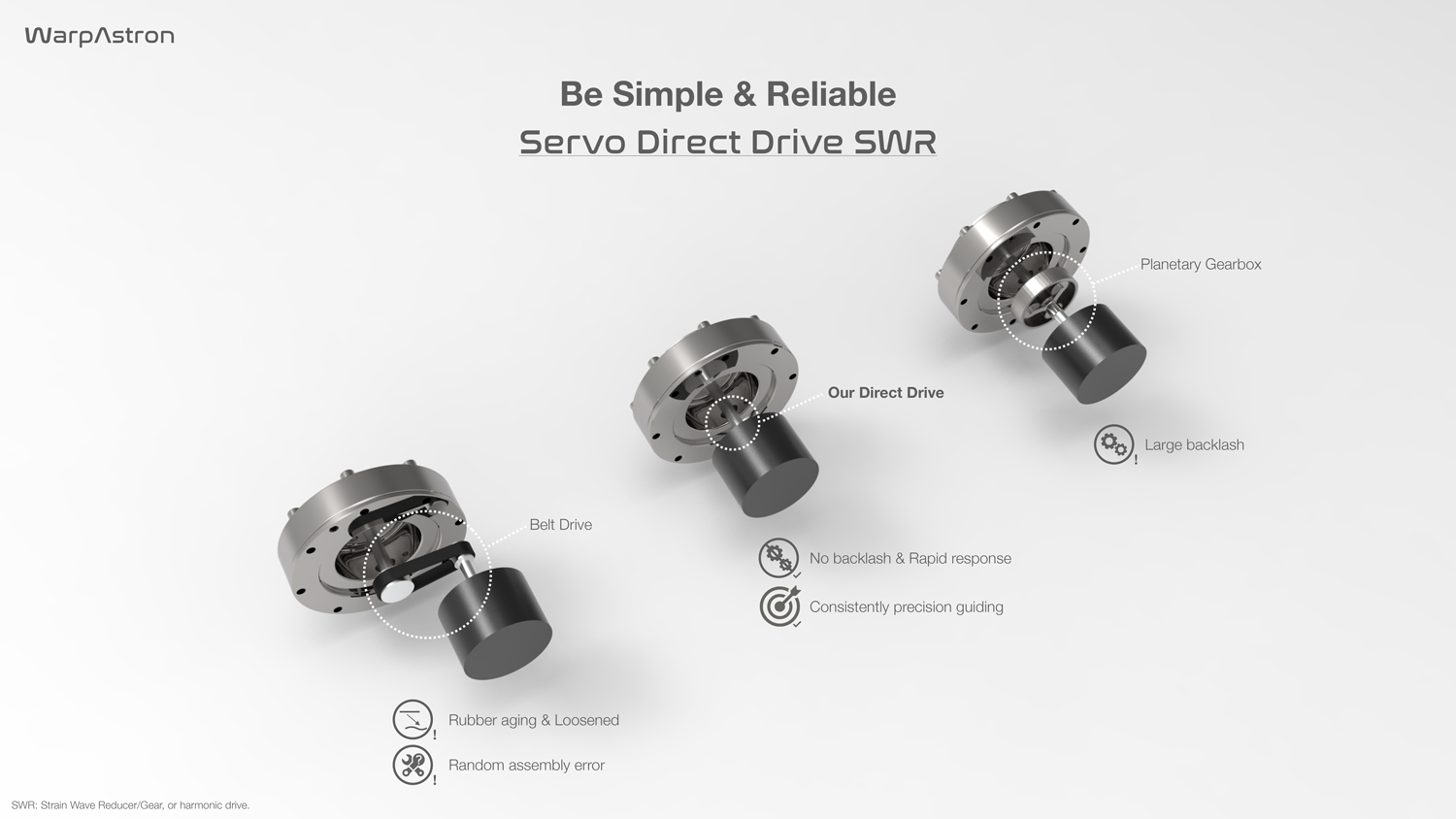

Additional precision comes from the servo motor, which connects directly to the strain wave reducer, providing fast response and accurate positioning. Equipped with encoders, the system offers real-time feedback on the motor's position and speed, allowing for exceptional control over both speed and positioning. With the WD-17, you get a seamless blend of quiet operation and precise control, keeping both you and your neighbors happy!
Smooth Polar Alignment

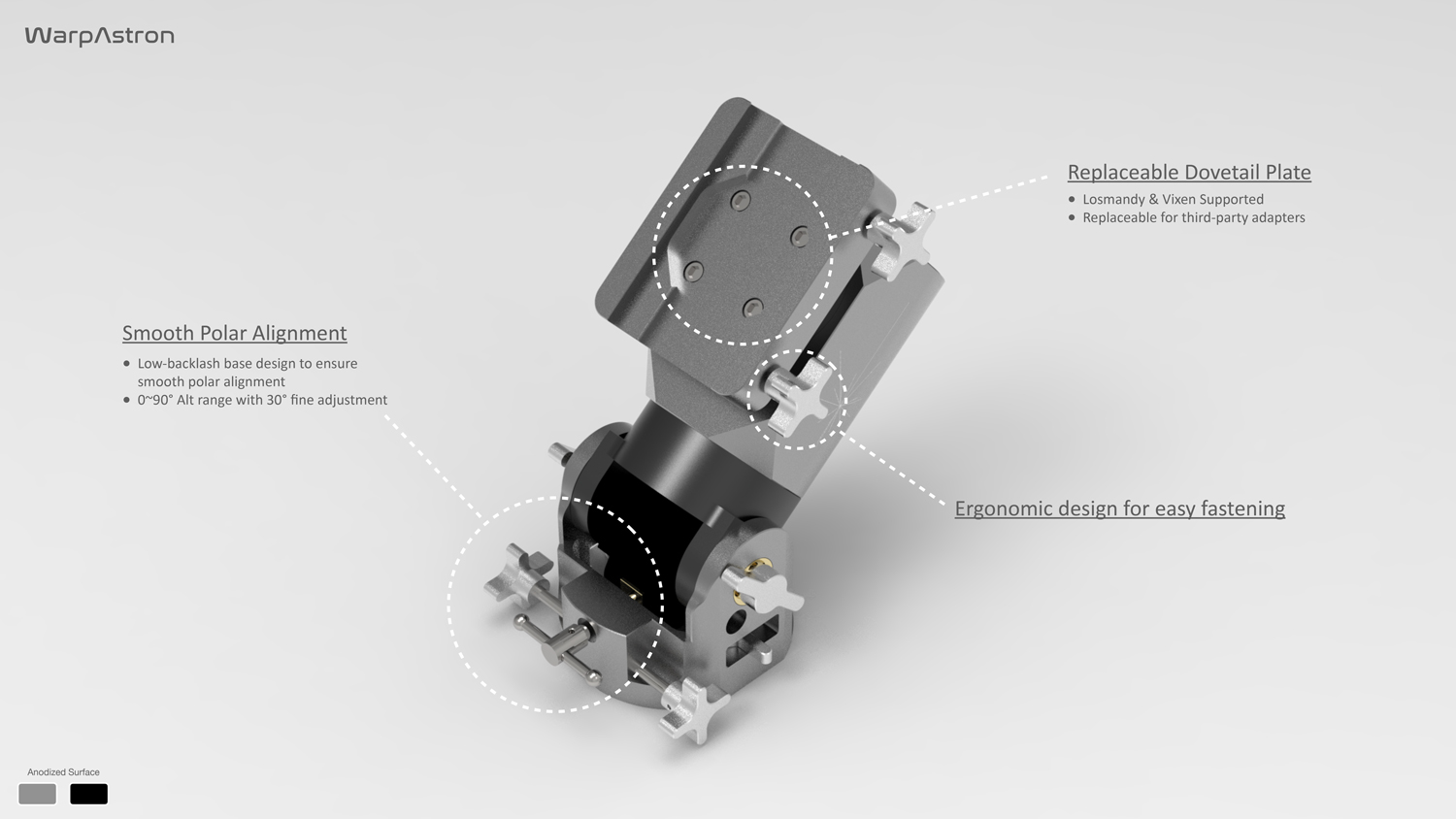

The WarpAstron WarpDrive WD-17 mount has a special low-backlash base design that lets you make small, precise 30° adjustments during polar alignment without any unwanted movement.
It has a 0-90° Alt range which makes it easier to line up your telescope accurately and a wide range of tilt, so you can use it anywhere in the world!
Built-in GPS & Memory Feature
The WD-17 has a built-in GPS with a Beidou positioning module for automatic positioning. This means the mount knows where you are and what time it is without you having to tell it. This is especially useful when you’re using it in the field, often at different locations.
It has a memory-based homing feature due to its FRAM Chip that remembers your coordinates and home position, even when the power is turned off. This means you can pick up right where you left off the next time you power it on.
Versatile with Equatorial or Altazimuth Modes
With its versatile dual-functionality, the WD-17 is perfect for all your astronomical needs! In Equatorial mode, the mount aligns with Earth’s rotation, enabling precise tracking of celestial objects, which is perfect for long-exposure astrophotography.
Alternatively, the Altazimuth mode allows vertical and horizontal movements, which is ideal for visual observations. This cohesive design makes the WD-17 a go-to choice for both casual stargazers and serious astrophotographers.
Maintenance-free Operation even in Harsh Environments
The WD-17’s innovative strain wave gearing system requires no regular lubrication, no retention or replacement of the belt, making it virtually maintenance-free! It is built to operate reliably in freezing temperatures up to -13°F (-25°C), so you can count on its exceptional performance even in cold environments.
Its low-maintenance design ensures you spend more time enjoying the night sky and less time on upkeep. It's an ideal choice for year-round use in various conditions, and with its anodizing and anti-rust coating, the WD-17 is built to last!
Compatibility for Seamless Integration
The WarpAstron WarpDrive WD-20 uses standard M8 screws for easy, secure and stable attachment to various tripods like the ZWO AM3 and AM5 mounting systems and pier extensions.
Additionally, the WD-20 is fully compatible with the ZWO ASIAIR, StellarMate systems and other automation devices, as well as your favourite acquisition and guiding software like NINA, APT, and PHD2 providing integrated control and convenience! The mount comes with a DC2.1x5.5mm power cable to connect and power it via any of these accessories or DC power supplies. If you wish to power this mount directly from an AC power source, you will need to provide your own AC-DC 12V power supply.

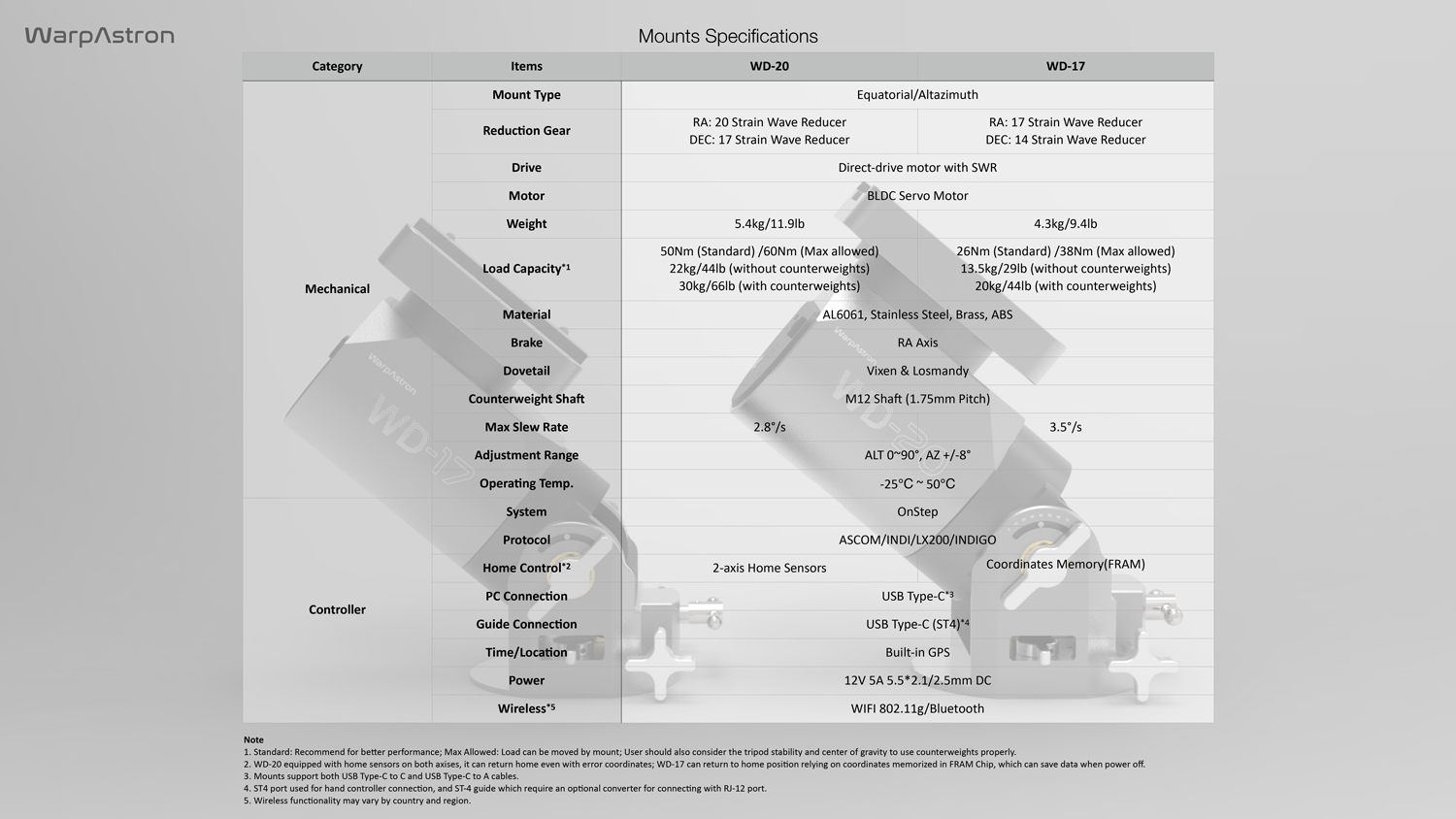

WD-17 Mount Specifications
- Mount Type: Equatorial/Altazimuth
- Reduction Gear:
- RA: 17 Strain Wave Drive
- DEC:14 Strain Wave Reducer
- Drive: Direct-drive motor with SWR
- Motor: BLDC Servo Motor
- Weight: 9.5lb (4.3kg)
- Load Capacity:
- 26Nm (Standard) / 38Nm (Max allowed)
- 29lb (13.5kg) (without counterweights)
- 44 lb (20kg) (with counterweights)
- Counterweight Shaft M12 (1.75mm Pitch)
- Material: AL6061, Stainless Steel, Brass, ABS
- Brake: RA axis
- Adjustment Range: ALT 0-90°, AZ +/- 8°
- Time/Location: Built-in GPS
- Dovetail: Losmandy/Vixen
- System: OnStep
- Protocol: ASCOM/INDI/LX200/INDIGO
- PC Connection: USB Type-C
- Guide Connection: USB Type-C (ST4)
- Wireless: WIFI (Standard), BLE (Optional)
- Power: 12V 5A 5.5x2.1/ 12.5mm DC
- Environment: -20°C ~ 4° C
- Counterweight Shaft: M12 Shaft (1.75mm Pitch)
- Max Slew Rate: 3.5°/s
- Operating Temp: -25°C ~ +50°C
- Home Control: Coordinates Memory (FRAM)
Notes and additional information:
- Load capacity:
- Standard is recommended for better performance.
- Max Allowed: load can be moved by the mount.
- You should always consider the tripod’s stability and center of gravity and use counterweights properly.
- Mounts support both USB Type-C to C and USB Type-C to A cables.
- ST4 port used for hand controller connection, and ST-4 guide which requires an optional converter for connecting with RJ-12 port (sold separately).
- Wireless functionality may vary by country and region.
- For more information refer to the user manual.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- 1 x WD-17 Wave Drive Equatorial Mount
- 1 x Smart Hand Controller (SHC)
- 1 x Power Cord (DC 5.5*2.1mm）(Note that this is not an AC power supply)
- 1 x USB Type-A to C Data Cable
- 1 x 4mm Allen Wrench
- 1 x Transport Aluminum Case
- 1 x USB Type-C to C cable for SHC
