William Optics 0.8x Reducer / Adjustable Field Flattener 6AII for Z71, GT71, GT81, Z103, &am...
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

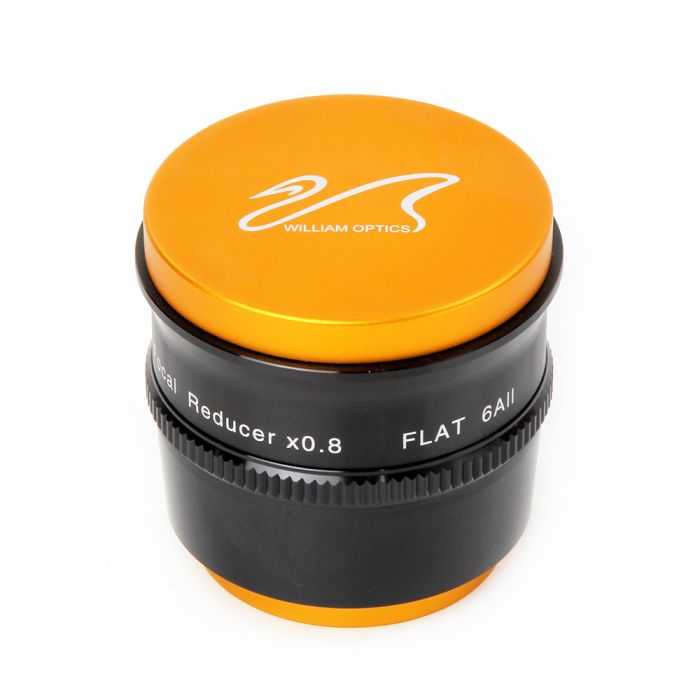

This very elegant 2" reducer/field flattener has been designed to optimize the flat-field imaging performance of William Optics F/6 to F7.5 ratio refactors. WO Flat 6All will provide good illumination and flat field across 97% of full frame sized sensors.
Full frame size
- Designed with nearly full frame chip-size DSLR cameras in mind.
- FMC triplet APO design.
- Produced entirely with the best Ohara optical glasses.
Amazing
- Reducing factor 0.8X.
- Adjustable design, for perfect back focus it can be used with other models of refractors
Superb Finish
- William Optics polished anodized finish.
- All internal surfaces threaded and blackened to prevent reflections.
Easy to Use
- Will accept any standard 48mm T-ring for your camera (not for use with 42mm T rings)
- Weighs 15.3oz
Suitable For
- Z71, GT71, GT81, Z103, Z126
Adjustment Distance
- Z71: 11.8mm
- GT71: 9.3mm
- GT81: 7.9mm
- Z103: 4.6mm
- Z126: 1.4mm
- Graduated millimeter scale on the flattener allows you to set the correct spacing distance for your telescope. A lock ring securely holds the spacing distance in place.
How to Attach Flat6AII to Telescopes
- This flattener/reducer does NOT come with a standard 2" nospiece (sold separately if required)
- On the telescope side, this flattener features an M63 male thread as well as an M48x0.75 female thread.
- Some William Optics telescopes have an M63 female thread on the eyepiece side. This flattener/reducer can be screwed directly into those telescopes without any modification or additional parts. In this configuration, the M48 female thread on the flattener/reducer can also accept a 2" astronomical filter.
- However, for use with 2" focuser drawtubes, you need to purchase and attach the William Optics DIG2A 2" nosepiece (or equivalent) to the M48 female thread of the flattener/reducer. In this configuration, you cannot attach 2" filters to the flattener, although you can attach one to the 2" nosepiece.
