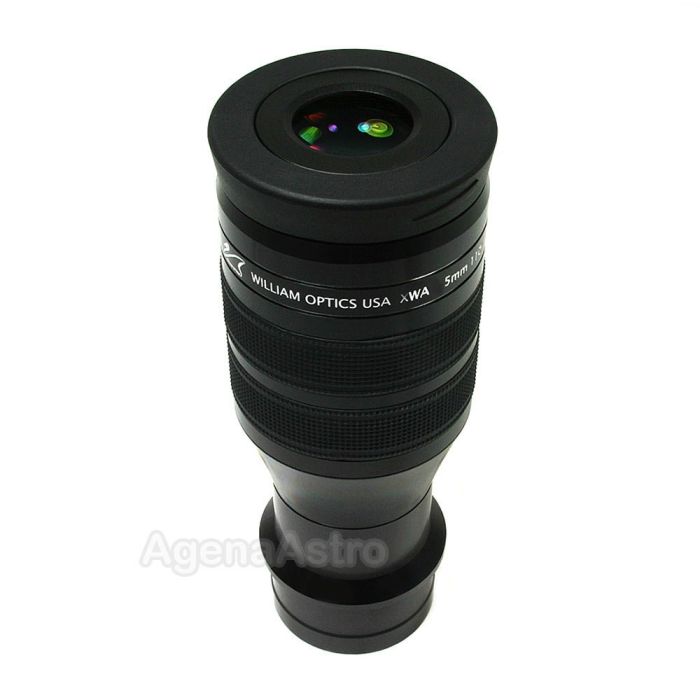

William Optics 1.25" & 2" 110° XWA Extreme Wide Angle Eyepiece - 5mm
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
New from William Optics
- William Optics 5mm 110-deg Extreme Wide Angle (XWA) eyepiece
- Dual 1.25" and 2" barrel format
- Comfortable 15mm eye relief
- Twist-up eyecup
- Fully multi-coated optics (8 elements in 6 groups) with blackened lens edges
- Made in Taiwan from Taiwanese, Chinese, and Japanese components
- 1.25" eyepiece with 2" sleeve. 2" barrel uses a unique / innovative male 1.25" filter thread on the inside to connect to the female filter thread on the 1.25" barrel.
Specifications:
- Weight:
- 1.25" eyepiece: 1lb-5.1oz
- 2" sleeve: 2.3oz
- 2" eyepiece: 1lb-7.4oz
- Height:
- 1.25" eyepiece (with eyeguard recessed): 161.8mm (6.37")
- 2" eyepiece (with eyeguard recessed): 164.8mm (6.49")
- Eyeguard can extend by: 7.5mm (0.3")
- Maximum width (excluding end caps): 65mm (2.56")
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | XWA Series |
| Focal Length | 5mm |
| Barrel Size | 1.25" (31.7mm) and 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 110° |
| Eye Relief (Designed) | 15mm |
| Filter Threads | Standard 1.25" (M28.5 x 0.6) and 2" (M48 x 0.75) Filter Thread |
| Coatings | Fully Multi-Coated |
| Lens Elements | 8 |
| Lens Groups | 6 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Plastic Storage Container | No |
| Protective Plastic Storage Container Size | Agena 85x120mm (Not included; Sold separately) |
| Height (With Eyeguard Extended) | See item description |
| Maximum Width | 65mm |
| End Caps | 3 |
| Rubber Eye Guard | Twist-up Eyecup |
| Weight | 1lb-7.4oz |
| Country of Manufacture | Taiwan |
| Hide Found a better Shipped Price on Frontend? | No |
