Please note that this mount is available in a gold trim ONLY, regardless of the color ot the William Optics telescope OTA you select.

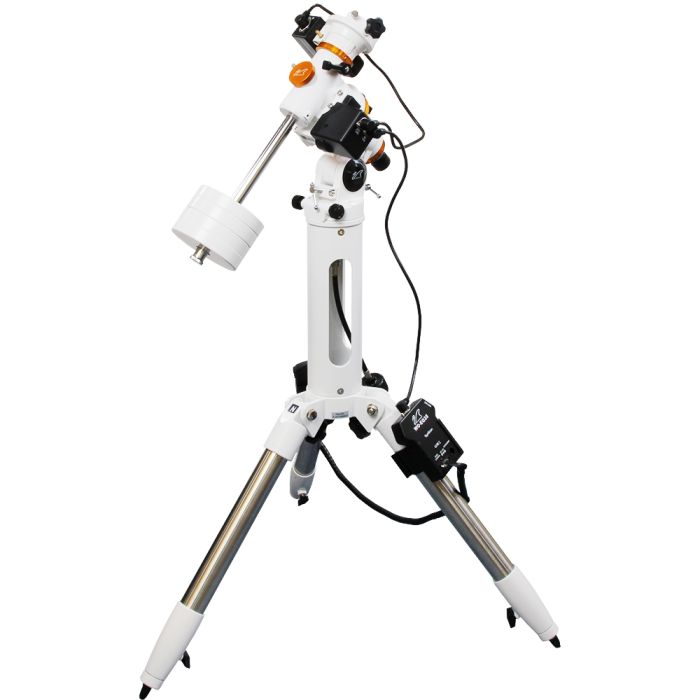

The WO-EQ35 PRO Mount offers the versatility of two specific mounts in one system: A fully computerized Go-To equatorial mount and a lightweight photo imaging mount, perfect for travel and DSLR imaging of the night sky.
It is suitable both for beginners as well as experienced amateur astronomers.
In the standard configuration mode with DEC and RA axes, you can use it as a computerized Synscan equatorial mount with Go-To and tracking in both axes with access to 42,900+ objects in the Synscan handset's database.
The payload capacity for visual use is an impressive 23lbs; in this configuration many options for telescope tube assemblies are open to the user.
For traveling you can remove the DEC Axis from the mount together with the counterweight shaft and counterweights, reducing the instrument's weight considerably. In this configuration you can use a simple 44mm dovetail plate with standard 1/4 tripod screw (not supplied) and fit your camera directly using a ball head (not supplied).
With the DEC axis removed, the mount only tracks in RA and you can easily take photos.
Specifications:
- Positioning accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation.
- High precision stepper motors with 1.8° step angle and 64 micro steps driven.
- Resolution 0.28125 arc second
- Slewing speed up to 3.4°/sec (800X).
- ST-4 type autoguider interface: Supports 0.25x, 0.5x, 0.75x 1x guiding rate
- Dual or single axis tracking
- Tracking tate: Lunar, Solar or Sidereal
- Synscan hand controller with 42,900+ object database containing complete Messier, NGC, and IC catalogs.
- Periodic error correction.
- PC compatibility.
- Synscan handset firmware upgradeable via internet download.
- Supplied with WO polarscope
- Latitude adjustment 15° to 65°
- R.A. worm gear 92.5mm diameter, 180 teeth
- DEC worm gear 34.3mm diameter, 65 teeth
- R.A. worm drive 25.5mm diameter, steel
- DEC worm drive 20mm diameter, steel
- Payload capacity 23Lbs
- Stabiliser bar 20mm diameter, steel
- Counterweights supplied: 2 x 3.4kg
- Weight of mount head: 4.38kg (3.28 kg with DEC & Bar removed)
- Reflex tripod, weight：6.3kg, reflex length：59cm
- Power requirement DC12V 3A tip positive
- PoleMaster adapter
