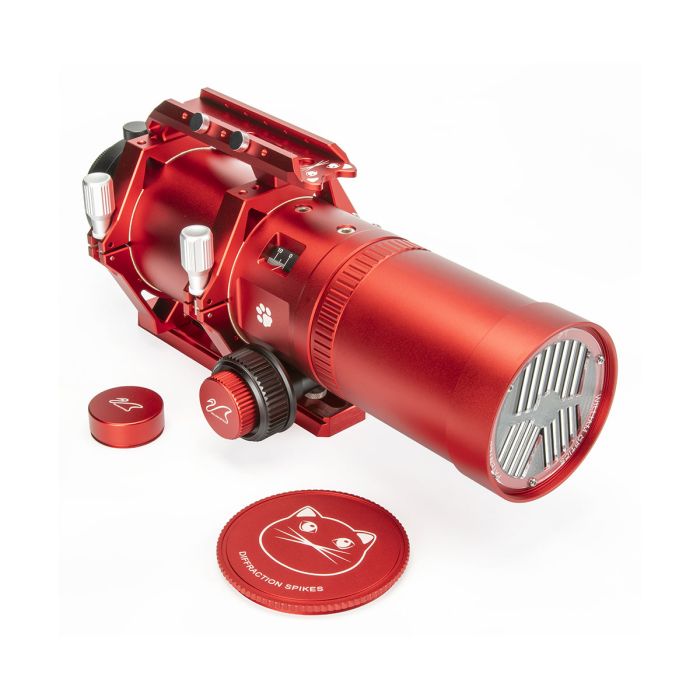

William Optics RedCat 71 II WIFD f/4.9 Petzval Refractor Telescope
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 350mm focal length, f/4.9 Petzval apochromatic astrograph
- Upgraded WIFD focuser
- 45mm full frame imaging circle
- FPL-53 glass for colour free apochromatic performance
- M48, M54, and M68 male threads for attachment to cameras and accessories
- Seamless integration with ZWO EAF
RedCat 71 Optical Design
The William Optics RedCat 71 is the bigger brother to the highly-regarded RedCat 51, which has been raved about by astrophotographers since its release. Building on the RedCat 51's success, the RedCat 71 keeps the same f/4.9 focal ratio and Petzval optical design. This optical design uses four lens elements instead of the three found in triplet refractors. By incorporating this extra element, the RedCat 71 is able to achieve a flat field without the need for an additional field flattener.
RedCat 71 Image Circle & Camera Compatibility
The flat field image circle on the WO RedCat 71 is over 45mm in diameter, meaning it can provide round stars to the corners on a full frame camera, not something many telescopes can claim in this price range. The RedCat 71 telescope comes with a 48mm thread on the back, meaning you can easily attach any dedicated astronomy camera with a standard M48x0.75 connection such as ZWO. For DSLR and mirrorless users, simply add an M48 t-ring for your camera type and you'll be ready to do astrophotography right out of the box.
Designed for Wide Field Astrophotography
The RedCat 71's focal length of 350mm is ideal for wide field astrophotography of large nebulae, galaxies, and the Milky Way. The shorter focal length also makes it very forgiving for beginners because it doesn't require as precise of tracking with a mount. Please note that the new WIFD RedCat series telescopes cannot be used visually at this time, but this could change in the future with the addition of accessories.

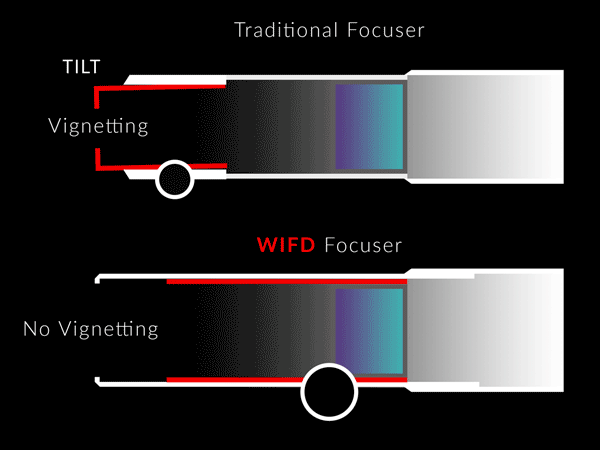

Game-Changing WIFD Focuser
New in this generation of the RedCat 71, this telescope features William Optics' new patented WIFD focuser. This game-changing design allows the telescope to focus by moving lens elements internally instead of externally. This has numerous benefits, including reducing vignetting, focuser sag, and most importantly, sensor tilt. The WIFD focuser is also compatible with the ZWO EAF out of the box, unlike previous versions of the RedCat 71.
RedCat 71 Specifications
- Optical Design: Petzval (4-element)
- Glass Type: FPL-53
- Focal Length: 350mm
- Aperture: 71mm
- Focal Ratio: f/4.9
- Image Circle: 45mm (full frame)
- Focuser: William Optics Internal Focus Design (WIFD)
- Focuser Compatibility: ZWO EAF
- Tube Length: 427mm
- Dew Shield Circumference: 331mm
- Dew Shield Diameter: 105mm
- Weight of OTA only: 7.1 lbs (3.2 kg)
- Weight of OTA with tube rings, dovetail, & saddle: 9.5 lbs (4.3 kg)
- Soft Carrying Case External Dimensions: 49x23.5x27 (cm)
