William Optics Vixen-Style 8" Dovetail Plate - Hard Anodized Gray
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

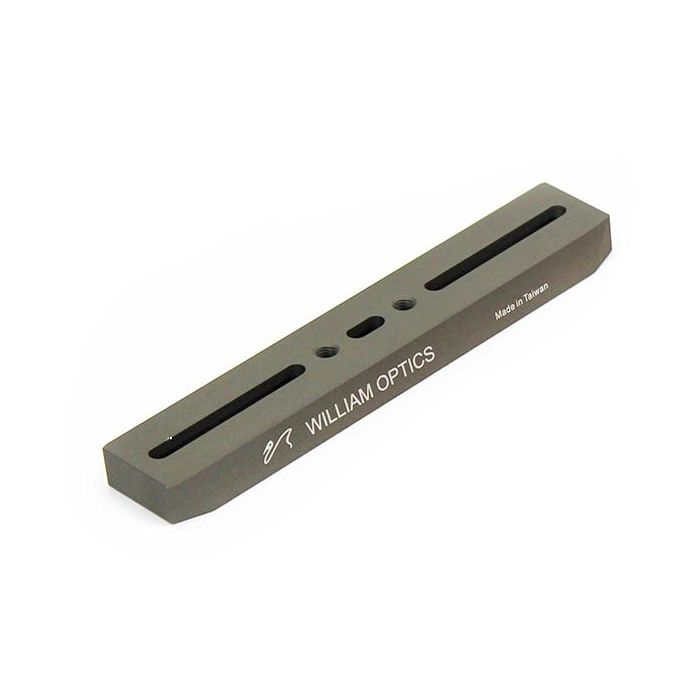

New from William Optics - Vixen-style hard anodized gray color dovetail plate # M-PVHAII
- Fits many mounts from WO (EZT), Vixen, Meade, Orion, Celestron, Synta, and others compatible with Vixen/Synta style dovetails
- Precision-machined out of solid aluminum, fully anodized for great looks, and life-long durability
- Hard anodizing offers superior wear protection compared to non-anodized plates
- Light but sturdy; mount any scope on it easily
- Weight = Xoz (Xg)
- Length = 7.9" / 200mm, Bottom width = 1.64" / 41.7mm, Top width = 1.33" / 33.7mm, Height = 0.61" / 15.5mm. See third product photo above for more info (all dimensions shown in mm)
- Does not include any mounting screws or bolts. You will need to provide these based on the holes you wish to use on this rail, this item's specifications (see drawing), and your mounting rings.
- William Optics Z61 telescope owners please note: The bottom of the L-base on the scope has two 1/4"-20 threaded screw holes. To attach this rail to the Z61, you need two socket-type screws with the following dimensions:
- Screw head maximum diameter = 12mm- Screw head maximum length = 5.5mm- Threaded shaft length of the screw can be between 14mm and 17mm, but 15-16mm would be best.Regular bolts with hexagonal head will not work.
