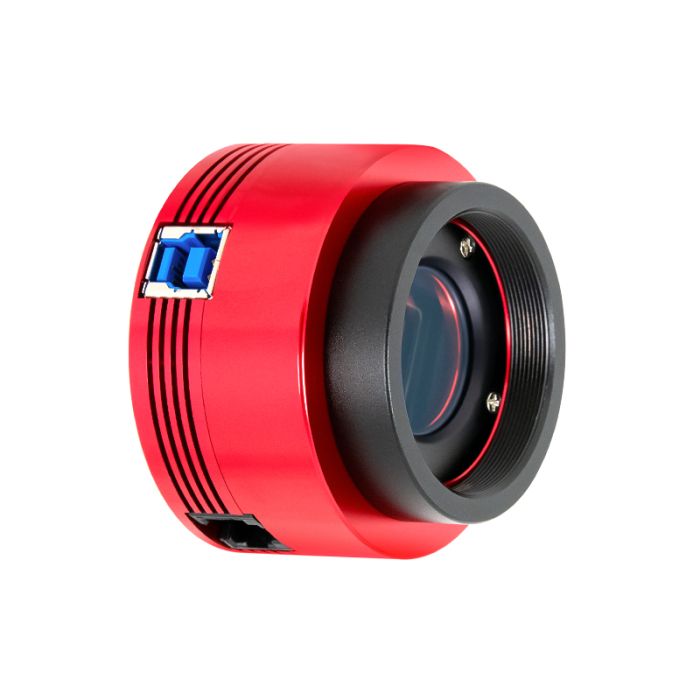

ZWO ASI533MM CMOS Monochrome Camera
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The planetary camera ASI533 features SONY's latest back illuminated IMX533 sensor, high sensitivity and zero glow. With a 1-inch square sensor format, it is ideal for astronomical photography.
One inch square frame
The IMX533 is a 1-inch square format that is ideal for astronomical photography needs image with the 3.76 µm pixel size, capable of producing frames at 20 frames/sec in 14bit mode. Read out noise is as low as 1.0e which makes it comparable to SCMOS or EMCCD sensors and highly suitable for high definition, low noise imaging.
STARVIS
ASI533 can be regarded as an upgraded product of ASI183 series. It's equipped with SONY STARVIS CMOS sensor, which as better shooting effect at night. It has the advantages of zero amp glow, large full well, low readout noise, and high dynamic range.
USB 3.0 & 256M DDR3 Memory
The ASI533 is equipped with a USB 3.0 interface, and the 256MB DDR3 memory ensures stable downloading of frames with increased USB speeds and effectively reduces the glow effect caused by slow readout speed.
Zero Amp Glow
ASI533 uses a no-glow circuity to ensure best quality images regardless of gain or exposure length.
Upgrade Iterative
Compared with ASI183 series, ASI533 has been fully upgraded.
Camera Curve
Low read noise, high dynamic range.
Quantum Efficiency
The peak quantum efficiency of ASI533MM is greated than 91%.
Protect Window
ASI533 camera sensor is equipped with a protective window, with a diameter of 32mm and a thickness of 2mm. ASI533 uses AR coated filter.
Specifications:
- Sensor: 1″ CMOS Sony-IMX533
- QE peak: 91%
- Back focus length: 12.5mm
- Max fps: 20fps
- Full well: 50Ke
- Shutter: Rolling shutter
- Resolution: 9.04Mega Pixel,3008x3008
- Pixel Size: 3.76µm
- Exposure Range: 32μs~2000s
- Interface: USB 3.0 Type-B
- Protect window: φ32-2 AR
- ADC: 14bit
- Dimension: 11.31mmx11.31mm
- Weight: 129g
- Working Temperature: -5℃~50℃
- Storage Temperature: -10℃~60℃
- Working Relative Humidity: 0-80%
- Supported OS: WIN7/8/10 32&64, Linux, Mac
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Camera body
- 1.25" Cover
- ST4 cable
- 2" Cover
- Quick guide
- USB 3.0 Cable (2m)
- 1.25" Nosepiece
