ZWO ASiair Pro Wi-Fi Camera Controller for ZWO ASI Cameras
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ASIAIR PRO enables app-based WiFi control of imaging runs, power management, and Go-To mounts for easy and convenient astronomical imaging without a PC
- Includes four app-controllable 12V@3A output ports for powering accessories
- Attractive, robust, and compact design makes it easy to mount on a finder dovetail or tripod
- Large external 84GB memory for capturing astronomical images
- Features Live Stacking with histogram control for near real-time viewing of deep-sky objects
The ZWO ASIAIR PRO is the second generation of the ZWO ASIAIR device first released in July 2018. The ASIAIR PRO builds on the success of the original ASIAIR to include live stacking, autorun, output power ports, more memory, and improved design. With the ASIAIR PRO, you no longer need to carry along a laptop computer for astro-imaging sessions. Instead, the ASIAIR PRO’s WiFi connectivity enables app-based camera control, power management, and go-to mount control with nearly any Android or iOS devices.
Outstanding Features
1. Excellent Build Quality and Compact Size
The ASIAIR PRO features an anodized all-aluminum CNC-machined housing that protects the device and has a comfortable easy-to-handle feel. The size of the whole device is just 92mm x 67mm x 35 mm so it fits easily in the palm of your hand, and it weighs just 243g (0.54 lbs).
2. Attractive and Functional Design and Interface

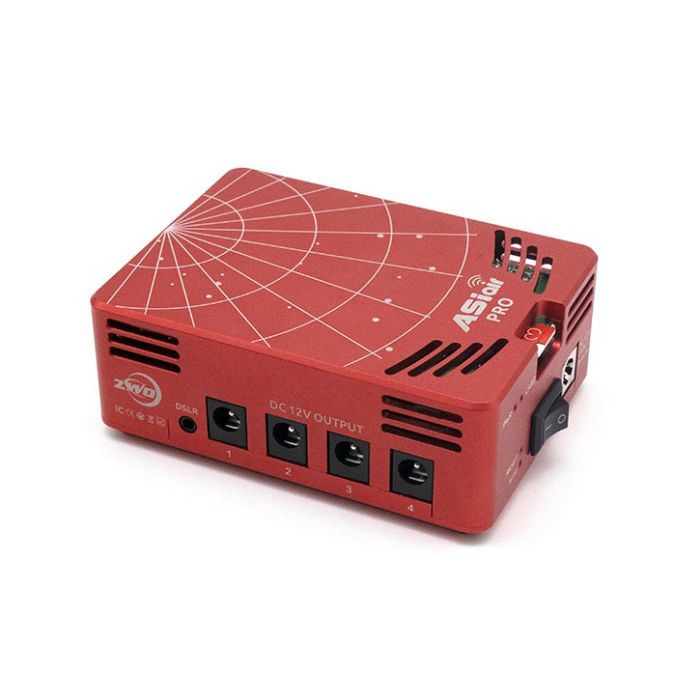

The layouts of the port on the ASIAIR are nicely organized and easy to access. On one side are an Ethernet port and four USB ports (2xUSB2.0 and 2xUSB3.0). On another side you find four 12V@3A output ports. Another side as the 12V@6A power in connector, a status light, and the on-off switch. The ASIAIR PRO also includes several configurations for mounting to a telescope with a finder-type dovetail or to a tripod with ¼-20 or M4 threads. The attractive aluminum body is red-anodized and laser marked with stylized star maps of the constellations Ursa Minor and Ursa Major.
3. Integrated Power Management and 84GB of Storage Space
ASIAIR PRO is equipped with a lightweight power management module, and each of the four 12V@3A output ports (with 5.5.mm x 2.1 mm female connectors) can be controlled through the ASIAIR app. There’s also a DSLR shutter release port and two USB 2.0 and USB 3.0 ports each for connecting cameras, autoguiders, and mounts. The device also comes with 84 GB of free external storage, more than enough to capture lots of images.
NOTE: The output power ports of the ZWO ASIAIR PRO are rated at 12V@3A, sufficient to power most ZWO camera TEC cooling systems, dew straps, and other accessories. However, ZWO does not recommend powering mid-sized and larger mounts, many of which draw peak currents of more than 3A. Supplying power separately to your mount is recommended. Also, cameras like ASI6200/ASI2600/ASI533 must use an external, separate 12V power supply source. The Pro cannot power the cooling function on these.
Note also that the ASIAIR PRO needs at least a 12V@2A power source for basic operation, and if you plan on using the built in 12VDC output ports for other equipment like dew heaters, then you need a 12V@5A input power source. This is NOT included with the ASIAIR-Pro and is available separately.
4. LED Status Indicator and Ready Tone
The ASIAIR PRO also separate status indicators for power, WiFi, the external data drive. It also features a tone that lets you know when the device is ready to use.
App Functions
The ASIAIR app to control the ASIAIR PRO supports both iOS and Android smartphones and tablets.
| OS Version | Phone | iPad/Tablet | |
| iOS/iPadOS | 10.0.2 and upper | iPhone 5s and later series | iPad/iPad Mini/iPad Pro |
| Android | 6.0 and upper | All Android phones (RAM ≥ 4GB) | Tablet with Android OS (RAM ≥ 4GB) |
The app is extremely simple and intuitive to use and enables the following capabilities:
- Accurate focus. After the rough focus is completed, select one star, then accurate focusing can be done through curves such as brightness and HFD. It can also be completed with ZWO EAF by remote control.
- Polar Alignment. Based on a powerful plate-solving function, you can finish arc-second polar axis alignment in only a few minutes.
- Accurate GoTo. Precise GoTo can be achieved after selecting the target from the ASIAIR PRO’s extensive database of celestial objects.
- Stable guiding. Independent and stable autoguiding can be achieved without a PC.
- Preview mode. You can see the image of the target directly under ‘Preview’, ideal for getting an object in the right position in the field of view.
- Autorun. Set the target and configure the schedule for capturing light frames and the ASIAIR will execute the imaging sequence automatically.
- Live Stacking. You can see the stacked image (lower noise with calibration frames) of the target directly while capturing, and even adjust the histogram and capture a snapshot of the image. Great for EAA!
Supported Mounts
To ensure mount compatability with the ASIAIR PRO, ZWO has been working closely with major manufacturers including iOptron, Vixen, Rainbow, Avalon, Explore Scientific, Sky-Watcher and other models, including some new models. For now, the ASIAIR PRO is able to support hundreds of equatorial mounts from more than 20 manufacturers worldwide. For details, please refer to the “ASIAIR PRO User Manual”.
Technical Specifications:
- Processor: 1.5Ghz Quadcore Broadcom BCM2711B0 (Cortez A-72)
- Memory: 4GB DDR4
- Storage: 32GB microSD card. External storage of 64GB USB memory included as gift
- Size: 3.6in x 2.64in x 1.38in (92mm x 67mm x 35mm)
- Weight: 8.5 oz (243g)
- Audio: Operation Alarm
- Network: Wired: Gigabit Ethernet Wireless: 802.11ac (2.4Ghz / 5Ghz)
- USB Ports: 2 x USB 3.0, 2 x USB2.0
- Power Input: 12V@2A-6A Input
- Power Management: 4 x 12V@3A Max Output
- Mountable Method: Vixen Style Dovetail Rail
- Software Features: FoV Plate Solve, 0.2º - 33º, Live Stacking Supported, ASI6200MM/MC Pro Supported
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |

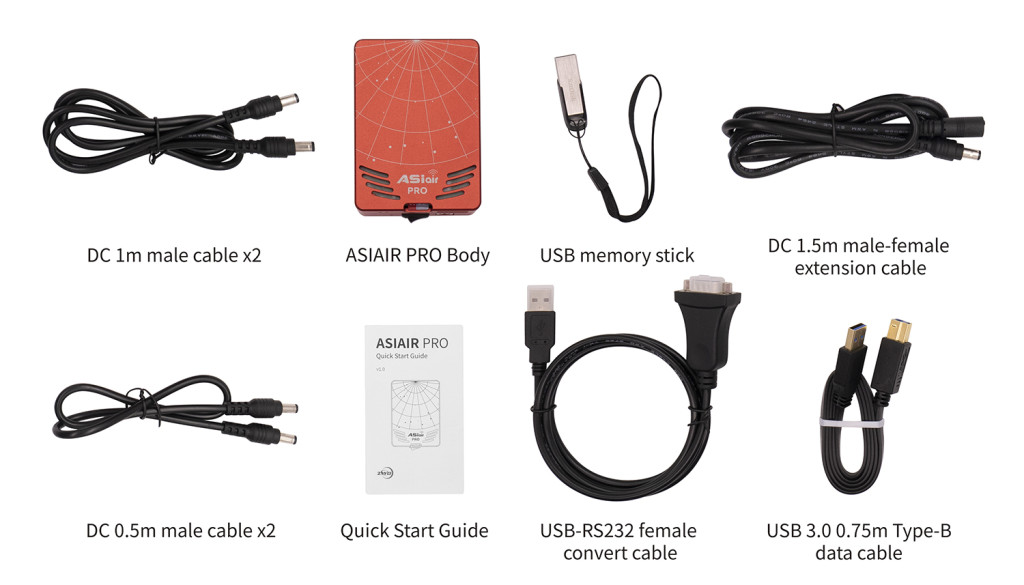

- DC Male 1M Cable (x2)
- ASIAIR Pro Body
- 64GB USB Memory Stick
- DC 1.5M Male and Female Cable - Extension Cable
- DC Male 0.5M Cable (x2)
- Quick Start Guide
- USB-RS232 Female Conversion Cable
- USB 3.0 Type-B to Type-A 0.75M Data Cable
Note:
Neither USB flash drive nor TF card is covered by Warranty Policy.
