ZWO ASI183GT 20.18 MP CMOS Monochrome Astronomy Camera with Integrated 5-Position 1.25"...
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ZWO ASI183MC-Pro cooled color astronomy camera uses 20.1-megapixel Sony IMX183 back-illuminated CMOS sensor with 5496x3672 resolution and 2.4-micron pixel size
- Includes an integrated 5-position ultra-quiet electronic filter wheel and 12V power distribution
- Ideal for capturing high-resolution color images of deep-sky objects such as nebulae, supernova remnants, and galaxies
- Integrated TEC cooling reduces sensor temperature to 40C-45C below ambient to enable low-noise imaging of fainter deep-sky objects
- Fast USB3.0 transfer at up to 19 fps at maximum resolution
- 256MB DDR3 buffer for quick and stable data transfer and reduced amp glow, and additional reduction of amp glow in camera firmware
- Attractive red anodized CNC aluminum body stands up to heavy field use
- Ready to go out of the box with cables, adapters, and manual; Software and drivers available from manufacturer's website

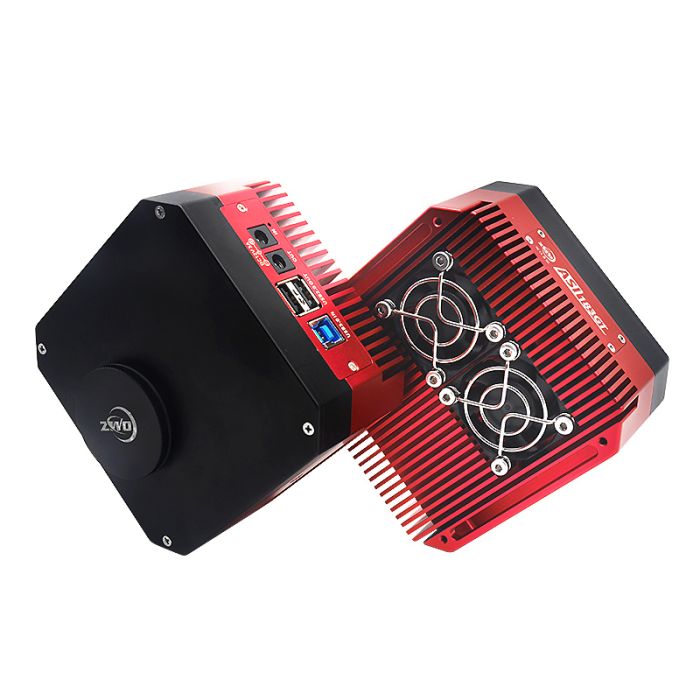

ZWO’s Versatile and Sensitive Astronomy Camera
The ZWO ASI183GT is a versatile and highly sensitive monochrome astronomy camera for deep-sky imaging. The camera incorporates a large state-of-the-art 13.2mmx8.8mm CMOS sensor with high quantum efficiency to help you extract maximum detail in your astrophotos while keeping noise and exposure time as low as possible. The camera also features TEC-cooling for superb low-noise performance in demanding imaging applications of faint astronomical objects.
Integrated 5-Position Filter Wheel
The ASI183GT includes an integrated internal 5-position electronic filter wheel (EFW) that accepts both 1.25” and 31mm filters (sold separately). The EFW is driven by a whisper quiet high grade stepper motor. The body of the EFW is CNC milled from an aircraft grade aluminum block finished in an attractive and hardwearing anodized finish. The inner surface of the EFW has been especially treated to prevent internal light reflections.
This camera also includes a 12V power output port along with a USB3.0 port and USB 2.0 Hub.
NOTE: The thickness of the 1.25” filter used with the integrated EFW cannot exceed 7mm (without threads), and the thread must be shorter than 2.5mm to avoid the filter wheel striking the camera housing.
High-Quantum-Efficiency CMOS Sensor
The ZWO ASI183GT color camera uses a 20.1 megapixel 5496x3672 Sony IMX183 CMOS sensor. Thanks to an innovative photodiode structure and on-chip lenses, the monochrome version of this back-illuminated sensor provides a peak quantum efficiency as high as 84%. Even at the hydrogen-alpha wavelength of 656nm, the QE is over 60%. The full well capacity of the 2.4 micron pixels is 15,000e, while read noise is a low 1.6e at 30dB gain. The low noise and high efficiency of this sensor allow you to capture more light with less noise for a given exposure time. The ASI183GT also includes advanced firmware to reduce amp glow in the camera.
DDR3 Memory Buffer and Fast Data Transfer
The camera includes an internal 256MB DDR3 buffer for quick and stable data transfer and reduced amp glow.The USB3.0 port offers a fast 19 fps capture rate at the full resolution of 5496x3672 with 12-bit ADC, and much faster rates at lower resolutions.
TEC Sensor Cooling and Data Hub
The two-stage TEC cooling system lowers the sensor temperature to 40oC-45oC below ambient to keep sensor noise as low as possible, even on warm nights. The camera also employs a sealed chamber and the same robust mechanical design as the ASI1600-Pro series cameras.
The TEC cooler is powered through a 2.1mm center-positive connector provides an input for the cooler power supply (not included). From the supply, the camera requires 12VDC @ 3A maximum.
The ASI183GT incorporates also a USB2.0 hub for powering accessories such as a guide camera and electronic focuser.
The ASI183GT has a robust and attractive CNC machined red-anodized aluminum body that stands up to heavy field use. An AR-coated glass window protects the sensor.
The camera has outer dimensions of 110mm X 110mm and weighs 800 grams (28.2oz).
Specifications:
- Sensor: 1″ CMOS IMX183CLK-J/CQJ-J
- Diagonal: 15.9mm
- Resolution: 20.18Mega Pixels 5496*3672
- Pixel Size: 2.4μm
- Bayer Pattern: None
- Shutter:Rolling shutter
- Exposure Range: 32µs-2000s
- ROI: Supported
- Read Noise: 1.6e @30db gain
- QE peak: 84%
- Full well: 15ke
- ADC:12bit
- DDRIII Buffer: 256MB
- Interface: USB3.0/USB2.0
- Protect window:AR window
- Dimensions: 110mm X 110mm
- Weight: 800g
- Back Focus Distance: 26.5mm
- Cooling: Regulated Two Stage TEC
- Delta T: 40°C-45°C below ambient
- Cooler Power consumption: 12V at 3A Max
- Working Temperature: -5°C—45°C
- Storage Temperature: -20°C—60°C
- Working Relative Humidity: 20%—80%
- Storage Relative Humidity: 20%—95%.
Supported resolutions:
10Bit ADC
- 5496×3672 19fps
- 3840×2160 41.04fps
- 1920×1080 80.10fps
- 1280×720 117.30fps
- 640×480 169.92fps
- 320×240 308.17fps
12Bit ADC
- 5496×3672 19fps
- 3840×2160 36.12fps
- 1920×1080 70.48fps
- 1280×720 103.23fps
- 640×480 149.53fps
- 320×240 271.19fps
More resolutions can be user defined
What's in the Box
- Camera Body
- M42-M48F-12L Extender
- M48-M48F-12L Extender
- M42-M48 adapter
- T2-M48 16.5mm Extender
- M42 spacer (x3)
- 2x 0.5m USB 2.0 Cable
- USB 2m 3.0 Cable
- Filter Mask
- Instructions for downloading drivers and software from ZWO website
