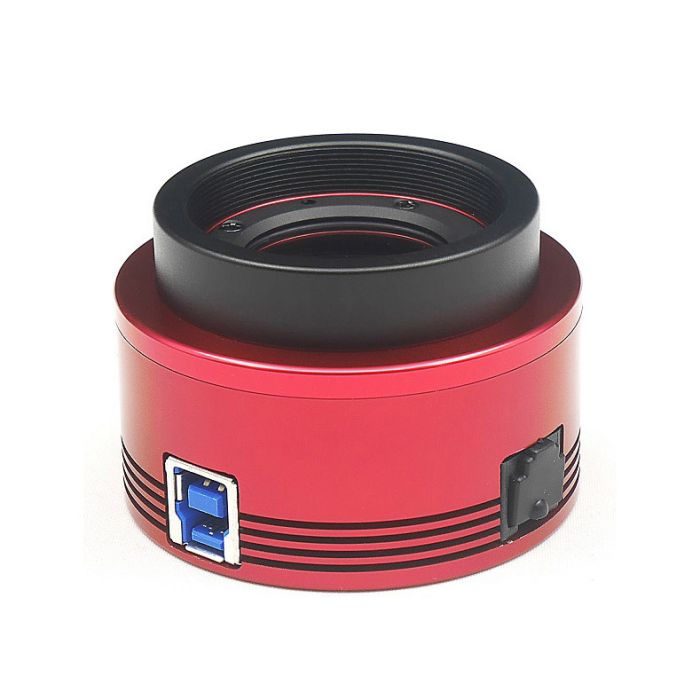

ZWO ASI183MM 20.18 MP CMOS Monochrome Astronomy Camera with USB 3.0
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ZWO ASI183MM monochrome astronomy camera uses 20.1-megapixel Sony IMX183 back-illuminated CMOS sensor with 5496x3672 resolution and 2.4-micron pixel size
- Ideal for capturing high-resolution images of deep-sky objects such as nebulae, supernova remnants, and galaxies, lunar and solar images, and for real-time electronically-assisted astronomy (EAA)
- Fast USB3.0 transfer at up to 19 fps at maximum resolution
- Fast data transfer and reduced amp glow through camera firmware
- Attractive red anodized CNC aluminum body stands up to heavy field use
- Ready to go out of the box with cables, adapters, and manual; Software and drivers available from manufacturer's website
- Compact body with 62mm diameter and weight of only 120 g (4.2 oz)
ZWO’s Versatile and Sensitive Astronomy Camera
The ZWO ASI183MM is a versatile and highly sensitive monochrome astronomy camera for deep-sky imaging, lunar and solar imaging, and electronically-assisted astronomy (EAA). The camera incorporates a large state-of-the-art 13.2mmx8.8mm CMOS sensor with high quantum efficiency to help you extract maximum detail in your astrophotos while keeping noise and exposure time as low as possible.
High-Quantum-Efficiency CMOS Sensor
The ZWO ASI183MM-Pro monochrome camera uses a 20.1 megapixel 5496x3672 Sony IMX183 CMOS sensor. Thanks to an innovative photodiode structure and on-chip lenses, the monochrome version of this back-illuminated sensor provides a peak quantum efficiency as high as 84%. Even at the hydrogen-alpha wavelength of 656nm, the QE is over 60%. The full well capacity of the 2.4 micron pixels is 15,000e, while read noise is a low 1.6e at 30dB gain. The low noise and high efficiency of this sensor allow you to capture more light with less noise for a given exposure time. The ASI183MM-Pro also includes advanced firmware to reduce amp glow in the camera.
Fast Data Transfer
The USB3.0 port of the ASI183MM offers a fast 19 fps capture rate at the full resolution of 5496x3672 with 12-bit ADC, and much faster rates at lower resolutions. These data rates are perfect for solar and lunar imaging, and they allow for real-time focusing during EAA and imaging applications. This camera is also great for ‘lucky imaging’ of planets, double stars, and other compact objects, especially for telescopes with longer focal ratio.
Ready to Go Out of the Box
The ASI183MM includes everything you need to get started including a ST4 cable, 1.25” cover, T2-1.25” adapter, 2” cover, 1.25” nosepiece, and USB3.0 cable. The camera also incorporates an ST4 port for autoguiding and an AR-coated window to protect the sensor.
This camera can be configured with the following connections for attachment to telescopes and imaging accessories:
- 1.25” nosepiece
- 2” nosepiece (composed of 2 or 3 included adapters)
- Female T/T2 thread (M42x0.75)
- Male T/T2 thread (M42x0.75)
- Female M28.5x0.6 thread via 1.25" nosepiece or T2-1.25" adapter
The ASI183MM is just 62mm in diameter and weighs 120g (4.2oz).
ZWO has phased out software CDs, but this camera comes with instructions to download the required control software and drivers directly from the ZWO website.
Specifications:
- Sensor: 1″ CMOS IMX183CLK-J/CQJ-J
- Diagonal: 15.9mm
- Resolution: 20.18Mega Pixels 5496*3672
- Pixel Size: 2.4μm
- Bayer Pattern: None
- Shutter:Rolling shutter
- Exposure Range: 32µs-2000s
- ROI: Supported
- ST4 Guider Port: Yes
- Read Noise: 1.6e @30db gain
- QE peak: 84%
- Full well: 15ke
- ADC:12bit
- Interface: USB3.0/USB2.0
- Adaptor: 2″ / 1.25″ / M42X0.75
- Dimension: φ62mm X 36mm
- Weight: 120g or 4.2 ounces (without lens)
- Working Temperature: -5°C—45°C
- Storage Temperature: -20°C—60°C
- Working Relative Humidity: 20%—80%
- Storage Relative Humidity: 20%—95%
Supported resolutions:
10Bit ADC
- 5496×3672 19fps
- 3840×2160 41.04fps
- 1920×1080 80.10fps
- 1280×720 117.30fps
- 640×480 169.92fps
- 320×240 308.17fps
12Bit ADC
- 5496×3672 19fps
- 3840×2160 36.12fps
- 1920×1080 70.48fps
- 1280×720 103.23fps
- 640×480 149.53fps
- 320×240 271.19fps
More resolutions can be user defined
What's in the Box
- Camera Body
- Quick Guide
- USB 3.0 Cable
- ST4 Cable
- 1.25" Cover
- T2-1.25" Adapter
- 2" Cover
- 1.25" Nosepiece
- Instructions for downloading drivers and software from ZWO website
