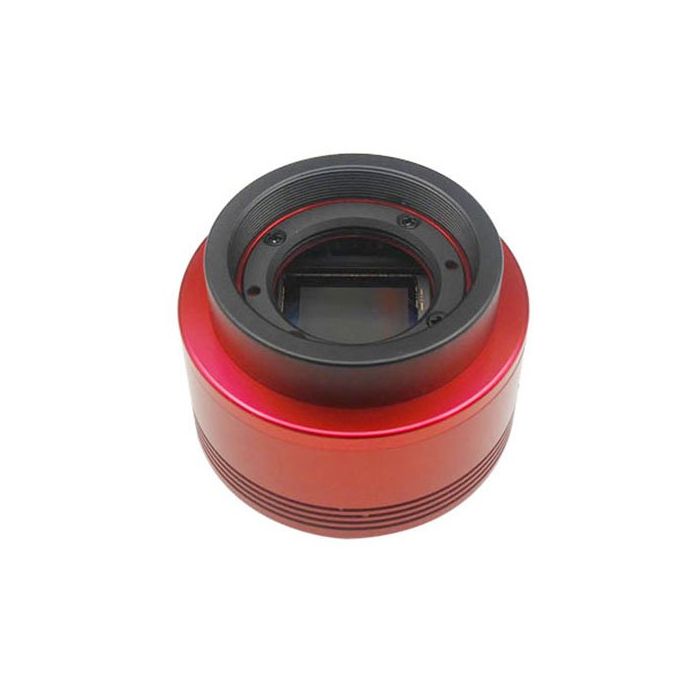

ZWO ASI294MC 11.7 MP CMOS Color Astronomy Camera with USB 3.0
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ZWO ASI294MC uncooled color astronomy camera uses micro-4/3 Sony IMX294CJK CMOS sensor
- High 4144x2822 resolution (11.7 megapixels) and 4.63-micron pixel size
- Ideal for capturing high-resolution color astronomical images of extended brighter deep-sky objects and lunar/solar/planetary images
- Fast USB3.0 transfer at up to 19fps (in 10-bit ADC high-speed mode) and 16fps (in 14-bit ADC normal mode)
- Attractive red anodized CNC aluminum body stands up to heavy field use
- Ready to go out of the box with cables, adapters, and manual; Software and drivers available from manufacturer's website
- Compact body with 62mm diameter and weight of only 120 g (4.2 oz)
Compact Micro-4/3 Astronomy Camera for Deep-Sky and Solar-System Imaging
The ZWO ASI294MC color astronomy camera is equipped with Sony’s CMOS IMX294CJK Micro-4/3 format sensor, the first in-house sensor in this format for astronomy cameras. With a resolution of 11.7 megapixels, this one-shot color camera has large pixels for high signal-to-noise ratio for imaging deep-sky objects. It’s also ideal for fast, high-resolution lunar, solar, and planetary imaging.
State-of-the-Art Sony Micro-4/3 Sensor
ZWO engineered the ASI294MC camera around Sony’s IMX294CJK Micro-4/3 10.7 megapixels CMOS sensor with 21.6mm diagonal, and they modified the sensor to get a larger diagonal of 23.2mm (19.1mmx13.0mm) and resolution of 11.7 megapixels. Ideal for low-illumination performance, the ASI294MC captures images with an array of large 4144x2822 pixels. Each pixel measures 4.63-microns on edge. The pixels have a 63700e well capacity, more than 3x the capacity of the ASI1600-series cameras to help you capture sharp images of bright stars without saturation. This back-illuminated sensor has a high estimated QE of 75%
The dimensions and pitch of the IMX294CJK sensor matches well for many imaging applications with a wide range of telescopes. A small telescope with 400mm focal length, for example, gives a field of view of with this camera of 2.7 degrees x 1.9 degrees. A telescope with 1500mm focal length gives a field of 0.7 degrees x 0.5 degrees.
Superb Low-Noise Performance
The ASI294MC camera has a dynamic range of 9 to 13 stops depending on the camera gain settings. The read noise can be adjusted from 1.2e to 7.3e; at a gain of 120dB, you get 13 stops of dynamic range with a read noise of just 1.3e.
This uncooled camera works well for capturing color images of large and bright deep-sky objects. It also excels as a solar/lunar/planetary camera, especially with telescopes of focal length longer than about 1200mm. The USB3.0 interface and fast capture rate of the camera lets you grab 11MB video at 19fps (in 10-bit ADC high-speed mode) and 16fps (in 14-bit ADC normal mode).
Ready to Go Out of the Box
The ASI294MC includes everything you need to get started including a ST4 cable, 1.25” cover, T2-1.25” adapter, 2” cover, 1.25” nosepiece, and USB3.0 cable. The camera also incorporates an ST4 port for autoguiding and an AR-coated window to protect the sensor.
This camera can be configured with the following connections for attachment to telescopes and imaging accessories:
- 1.25” nosepiece
- 2” nosepiece (composed of 2 or 3 included adapters)
- Female T/T2 thread (M42x0.75)
- Male T/T2 thread (M42x0.75)
- Female M28.5x0.6 thread via 1.25" nosepiece or T2-1.25" adapter
ZWO has phased out software CDs, but this camera comes with instructions to download the required control software and drivers directly from the ZWO website.
The ASI294MC is just 62mm in diameter and weighs 120g (4.2oz).
Specifications:
- Sensor: 4/3″ SONY IMX294 CMOS
- Diagonal: 23.2mm
- Resolution: 11.7 Mega Pixels 4144X2822
- Pixel Size: 4.63µm
- Bayer Pattern: RGGB
- Exposure Range: 32µs-2000s
- ROI: Supported
- ST4 Guider Port: Yes
- Focus Distance to Sensor: 12.5mm
- Shutter Type: Rolling Shutter
- Protect window: AR coated window
- Operating System Compatibility: Mac, Windows, Linux
- Interface: USB3.0/USB2.0
- Bit rate: 12bit output(12bit ADC)
- Adaptor: 2″ / 1.25″ / M42X0.75
- Dimension: φ62mm X 36mm
- Weight: 120g or 4.2 ounces (without lens)
- Working Temperature: -5°C—45°C
- Storage Temperature: -20°C—60°C
- Working Relative Humidity: 20%—80%
- Storage Relative Humidity: 20%—95%
Supported resolutions:
Max FPS at full resolution:
10Bit ADC
- 4144×2822 19fps
14bit ADC
- 4144×2822 16fps
More resolutions can be user defined
What's In the Box
- Camera Body
- Quick Guide
- ST4 Cable
- 1.25" Cover
- T2-1.25" Adapter
- 2" Cover
- 1.25" Nosepiece
- USB 3.0 Cable
- Instructions for downloading drivers and software from ZWO website
