ZWO ASI385MC 2.12 MP CMOS Color Astronomy Camera with USB 3.0 - Cooled
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Closeout - All Sales Final
- ZWO ASI385MC-Cool color astronomy camera uses highly sensitive Sony IMX385LQR CMOS 2.13 megapixel sensor
- Integrated TEC cooling reduces sensor temperature to 40-45C below ambient to enable low-noise imaging of faint deep-sky objects (TEC requires external power supply, not included)
- High 1936x1096 resolution and 3.75-micron pixel size is ideal for imaging solar system objects
- Reduced amp glow for imaging smaller deep-sky objects and for electronically-assisted astronomy (EAA)
- Fast USB3.0 transfer at up to 120fps (in 10-bit ADC high-speed mode) and 67fps (in 12-bit ADC normal mode)
- Attractive red anodized CNC aluminum body stands up to heavy field use
- Compact body with 78mm diameter and weight of only 420g (14.8oz)
- Ready to go out of the box with cables, adapters, and manual; Software and drivers available from manufacturer's website

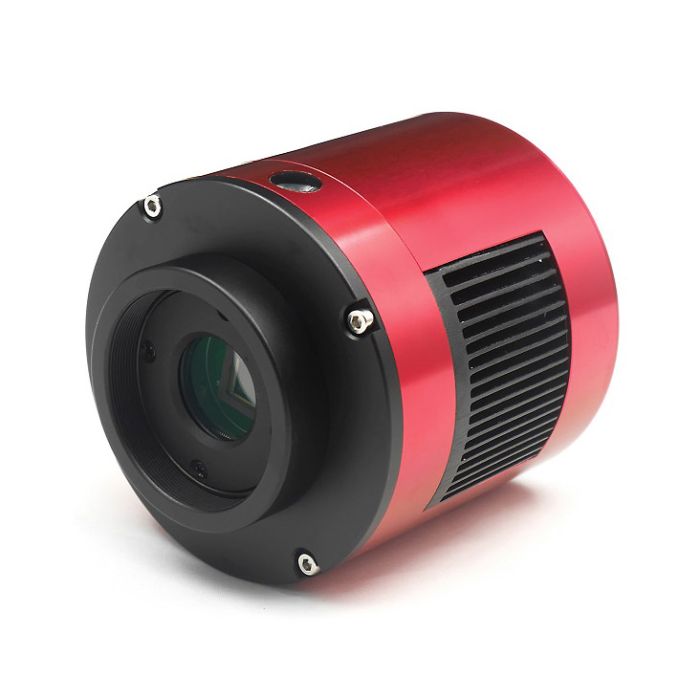

ZWO ASI385MC-COOL Astronomy Camera for Solar-System and Deep-Sky Imaging
The ZWO ASI385MC-Cool color astronomy camera is built around Sony’s high-sensitivity IMX385LQR CMOS sensor. With a resolution of 2.13 megapixels, this one-shot TEC-cooled color camera is ideal for capturing images of planets, the Moon and Sun. The reduced amp glow of this camera also makes it ideal for capturing images of smaller deep-sky objects and for electronically-assisted astronomy (EAA) applications.
The ASI385MC-Cool has twice the sensitivity of the ZWO ASI185MC camera. It also has a larger sensor than the ZWO ASI224MC camera, which means it can image a wider field of view for a given focal length, but it retains the same small 3.75-micron pixel size for high resolution. The 7.3mm x 4.1mm sensor (1/1.9”) has a resolution of 1936x1096, a read noise of 0.7e and a full well capacity of 18,700e to allow imaging of a wide range of celestial objects with low noise and minimal pixel saturation.
The TEC cooling system brings the sensor temperature down to 40-45oC below ambient to keep sensor noise as low as possible, even on warm nights. This is especially important when trying to capture images of deep-sky objects using longer exposure times. The camera’s TEC cooler requires 12V@3A provided with an external power supply (not included).
The ASI385MC-Cool uses a USB3.0 port for fast data transfer, a critical feature for getting sharp images of fast-rotating planets. At full 1936x1096 resolution, the camera captures data as fast as 120fps (in 10-bit ADC high speed mode) or 67fps (in 12-bit ADC normal mode). It also incorporates a USB2.0 hub for powering accessories such as a guide camera and electronic focuser.
The ZWO ASI385MC-Cool camera comes with an AR-coated window to protect the sensor. It also includes a USB3.0 cable, USB2.0 cables, 1.25” cover, 1.25” nosepiece, and a quick-start guide. The camera weighs just 420g (14.8oz) and has a diameter of 78mm.
This camera can be configured with the following connections for attachment to telescopes and imaging accessories:
- 1.25” nosepiece
- 2” nosepiece (optional 2” extension strongly recommended)
- Female T/T2 thread (M42x0.75)
- Male T/T2 thread (M42x0.75)
- Female M28.5x0.6 thread via 1.25" nosepiece
ZWO is phasing out software CDs, but the ASI385MC-C astronomy camera comes with instructions to help you download the required control software and drivers directly from the ZWO website.
Camera Technical Details
- Sensor: SONY IMX385 CMOS
- Diagonal: 8.35mm
- Resolution: 2.12Mega Pixels 1936X1096
- Pixel Size: 3.75µm
- Bayer Pattern: RGGB
- Shutter:Rolling shutter
- Exposure Range: 32µs-2000s
- ROI: Supported
- Read Noise: 0.75e @30db gain
- QE peak: >80%
- Full well: 18.7Ke
- ADC:12bit
- Interface: USB3.0/USB2.0
- Adaptor: M42X0.75
- Protect window:AR window
- Dimensions: 78mm Diameter
- Weight: 420g
- Back Focus Distance: 6.5mm
- Cooling: Regulated Two Stage TEC
- Delta T: 40°C-45°C below ambient
- Camera Power consumption: 650mA at 5V
- Cooler Power consumption: 12V at 3A Max
- Working Temperature: -5°C—45°C
- Storage Temperature: -20°C—60°C
- Working Relative Humidity: 20%—80%
- Storage Relative Humidity: 20%—95%
Supported Resolutions
10bit ADC
- 1936×1096 120fps
12bit ADC
- 1936×1096 67fps
More resolutions can be defined by user
What's in the Box
- Camera Body
- Camera Bag
- Quick Guide
- USB 3.0 Cable
- 2x 0.5m USB 2.0 Cable
- 1.25" Nosepiece
- 1.25" Cover
- Instructions for downloading drivers and software from ZWO website
Manufacturer Part Number: ASI385MC-COOL
Product carries a 1 year manufacturer warranty against mechanical defects (within USA only).
