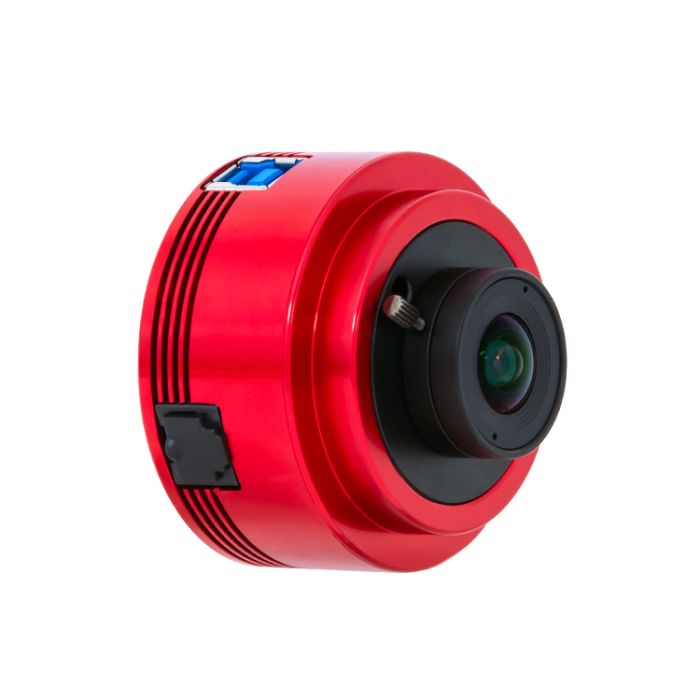

ZWO ASI462MM 2.1 MP CMOS Monochrome Astronomy Camera with DDR3 Memory
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ZWO ASI462MM advanced monochrome astronomy camera with back illuminated 2.1 megapixel CMOS sensor with 1936x1096 resolution, 2.9 μm pixels, and 6.46 mm diagonal size
- Ideal for capturing high-resolution images of the Moon, Sun, and planets
- Advanced Sony IMX462 back-illuminated sensor with STARVIS technology for high-speed processing, low noise, and low power dissipation; High Quantum efficiency at visible wavelengths extends into the infrared for lunar and planetary imaging with IR filters
- Fast USB 3.0 transfer at up to 136 fps at maximum 1936x1096 resolution in 10-bit high-speed mode; Also features built-in 256MB DDR3 memory to ensure stable and secure data transmission
- Attractive red anodized CNC aluminum body stands up to heavy field use
- Compact body with dimension 62mm diameter and weight of only 110 g (3.9 oz)
The successor to the renowned ZWO ASI290MM planetary camera, the ZWO ASI462MM is a sensitive and state-of-the-art monochrome astronomy camera with 2.1-megapixel resolution and USB 3.0 download speed. Built around the Sony IMX462 back-illuminated sensor, this advanced camera has a resolution of 1936x1096 with 2.9 μm pixel size and a read noise as low as 0.47e. This monochrome camera is ideal for high-resolution imaging of the Moon, Sun (with safe solar filter), and planets, and works well on small deep-sky objects as well. It features high quantum efficiency of up to 89% and enhanced sensitivity in the near infrared for imaging the moon and planets with IR filters.
The heart of this monochrome camera is a Type 1/2.8 class CMOS sensor with 6.46 mm diagonal. This advanced sensor incorporates Sony's STARVIS technology that enables high-speed processing, low noise, and low power dissipation. STARVIS features a sensitivity of 2000 mV or more per 1 square µm and allows high image quality in the visible-light and near infrared light regions.
The electronic rolling shutter and fast USB 3.0 interface on the camera allow transfer rates of up to 136 frames per second at full 1936x1096 resolution at 10-bit resolution and 63.9 fps at 12-bit resolution. The camera also features built-in 256MB DDR3 memory to ensure fast and stable data transfer./p>
The ASI462MM has a robust and attractive CNC machined red-anodized aluminum body that stands up to heavy field use. An AR/IR-CUT glass window protects the sensor and helps keep images sharp. A 1/4-20 thread in the bottom of the camera makes it easy to attach the device to a camera tripod or mount, and four M4 threads along the outside edge offer additional mounting options. The camera also includes an ST4 Port and can be used as an effective autoguider.
The camera body features a standard T/T2 female thread (M42x0.75) so that it can be directly connected to T-threaded accessories. Included is a 1.25"-T threaded nosepiece adapter that allows you to use the camera in standard 1.25" telescope focusers. The front of the camera also has a short (8mm long) 2" barrel that can be directly inserted into 2" telescope focusers. However, we recommend that use of a 2" T threaded prime focus adapter (not included) for a more robust connection to 2" telescope focusers.
Because of its high sensitivity, the ZWO ASI462MM monochrome astronomy camera also works well for electronically-assisted astronomy (EAA) for those who wish to capture fast monochrome images of galaxies, nebula, globular star clusters, and other deep-sky objects.
Specifications:
- Sensor: CMOS Sony IMX462
- QE peak: 89%
- Back focal distance: 12.5mm
- Max fps: 136fps
- Full well: 11.2ke
- Resolution: 2.1MP 1936x1096
- Pixel Size: 2.9µm
- Readout Noise: 0.47-2.46e (0.47e @45db gain)
- ADC: 12bit
- Weight: 110g
- Diagonal: 6.46mm
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
This item comes complete with:
- Camera body
- 1.25" Cover
- 2" Cover
- ST4 Cable
- Quick Guide
- USB 3.0 Cable (2m)
- 1.25" Nosepiece
