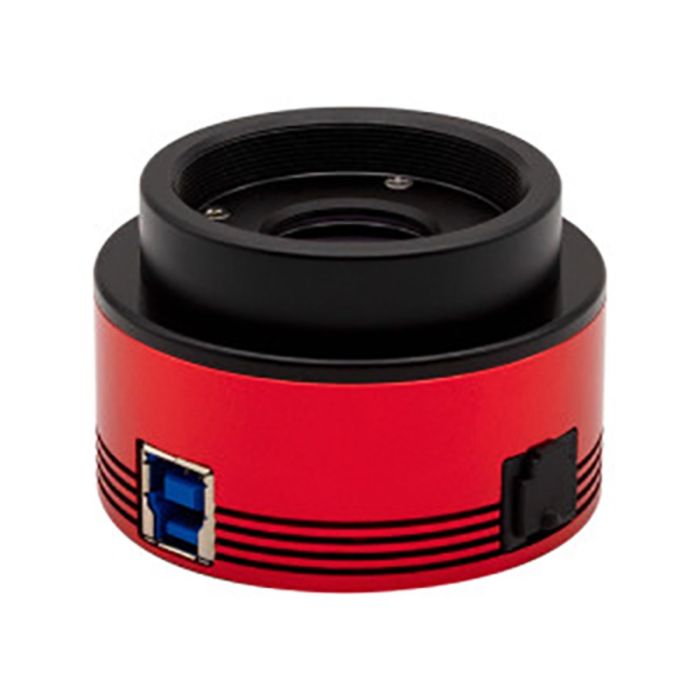

ZWO ASI485MC 8.29 MP CMOS Color Astronomy Camera with USB 3.0
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- ZWO ASI485MC color astronomy camera with a 8.29 megapixel CMOS sensor, 3840x2160 resolution, 2.9 μm pixels, and 12.86 mm diagonal size
- Ideal for capturing high-resolution color astronomical images of the Moon, Sun, planets, and deep-sky objects
- Advanced Sony IMX485 sensor with low read noise, high quantum efficiency, and low power dissipation
- Fast USB 3.0 transfer at up to 27.2 fps at maximum 3840x2160 resolution
- Attractive red anodized CNC aluminum body stands up to heavy field use
- Ready to go out of the box with cables, adapters, and manual; software and drivers available from manufacturer's website
- Compact body with dimension 62mm diameter and weight of only 133 g (4.7 oz)
Back-Illuminated Sony 1/1.2" Sensor for High Sensitivity
Based on the Sony IMX485 back-illuminated 1/1.2” CMOS sensor, the ZWO ASI485MC color camera offers a relatively large sensor and excellent noise performance for imaging planets, the moon and sun, and deep-sky objects. With a size of 11.13mm x 6.26mm (a 12.86 mm diagonal), this camera’s sensor has four times the area of the ASI462MC camera (and therefore four times the field of view) while retaining the small 2.9 micron pixel size. It has the same sensor size at the ASI482MC camera but it has four times as many pixels for a much higher resolution.
Excellent Noise Performance for Planetary, Lunar/Solar, and Deep-Sky Imaging
The ASI485MC has extremely high sensitivity and low read noise and backward USB 2.0 compatibility. With the full well capacity of 13ke-, ASI485MC displays rich star details when taking astrophotos. The sensor has an estimated peak QE of 85%.
The performance and sensor size of this camera, and small pixel size, makes it particularly useful for lunar and planetary imaging. It’s also a great camera for “lucky imaging” of deep-sky objects by taking multiple photos in short exposure times and stacking them to improve signal-to-noise ratio. The ASI485MC can also be an ideal camera for electronically-assisted astronomy (EAA), all-sky imaging, or live streaming at 4K resolution.
Low Read Noise and High Dynamic Range
ASI485MC has a built-in high-conversion gain (HCG mode) which effectively reduces the readout noise at high gain and keeps the same wide dynamic range as at low gain. When the gain is 80 or above, the HCG mode will automatically turn on to reduce read noise while still providing a dynamic range of close to 11 stops. The minimum read noise is 0.7e.
Like other ASI cameras, the ASI485MC is powered and controlled via USB 3.0. It provides 5Gb/s bandwidth to let the camera run at 39fps (10bit, high speed mode) or 27.5fps (12bit, normal mode) at full 8.29 megapixel resolution. The camera also includes a port for autoguiding.
Specifications
- Sensor: 1/1.2″ CMOS Sony-IMX485
- Bayer Pattern: R Gr Gb B
- QE peak85%@530nm
- Back focus length: 17.5mm
- Max fps: 39fps
- Full well: 13ke
- Shutter: Rolling shutter
- Resolution: 8.29 megapixel (3840 x 2160)
- Pixel Size: 2.9µm
- Data Format: RAW8、RAW16、RGB24、Mono8
- Exposure Range: 32μs~2000s
- Interface: USB3.0
- Protect window: AR
- ADC: 12bit
- Dimension: φ62mm x 41.05mm
- Weight: 0.133KG
- Working Temperature: -5℃~50℃
- Storage Temperature: -10℃~60℃
- Working Relative Humidity: 0-80%
- Supported OS: WIN7/8/10 32&64、Linux、Mac
