ZWO ASI585MC AIR All-In-One Smart Astrophotography Camera
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 3-in-1 astrophotography camera, guider, and smart controller
- 4K high resolution, low noise Sony STARVIS 2 sensor
- Built in ASIAIR smart controller for full telescope control
- Wirelessly connects to your smartphone or tablet
- Perfect for beginners or imagers on the go
- Power supply (required) sold separately

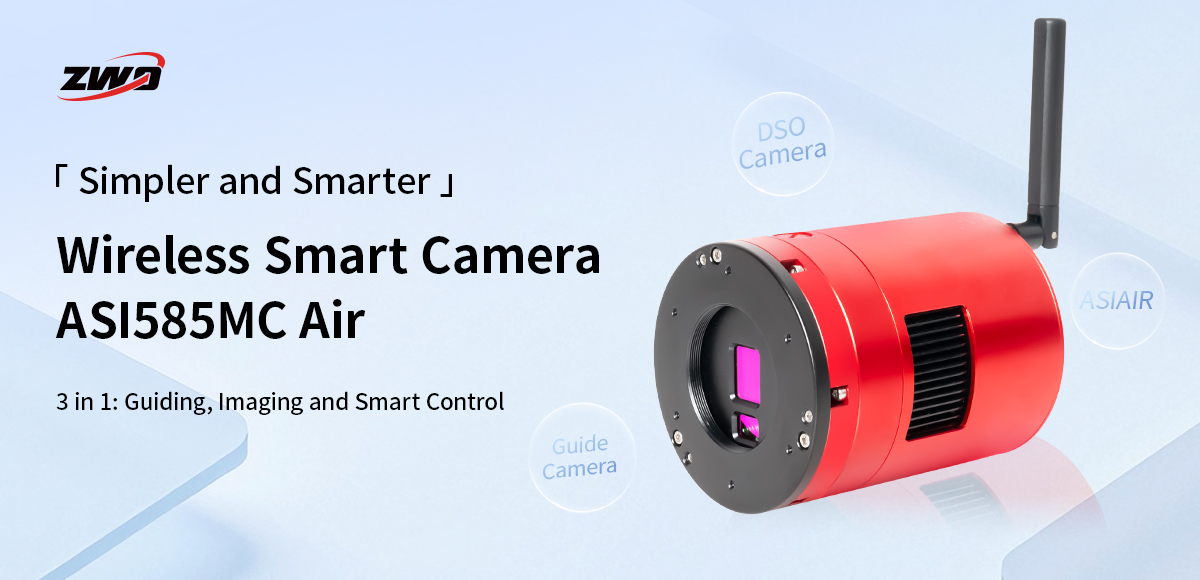

All-In-One Imaging, Guiding, and Smart Control

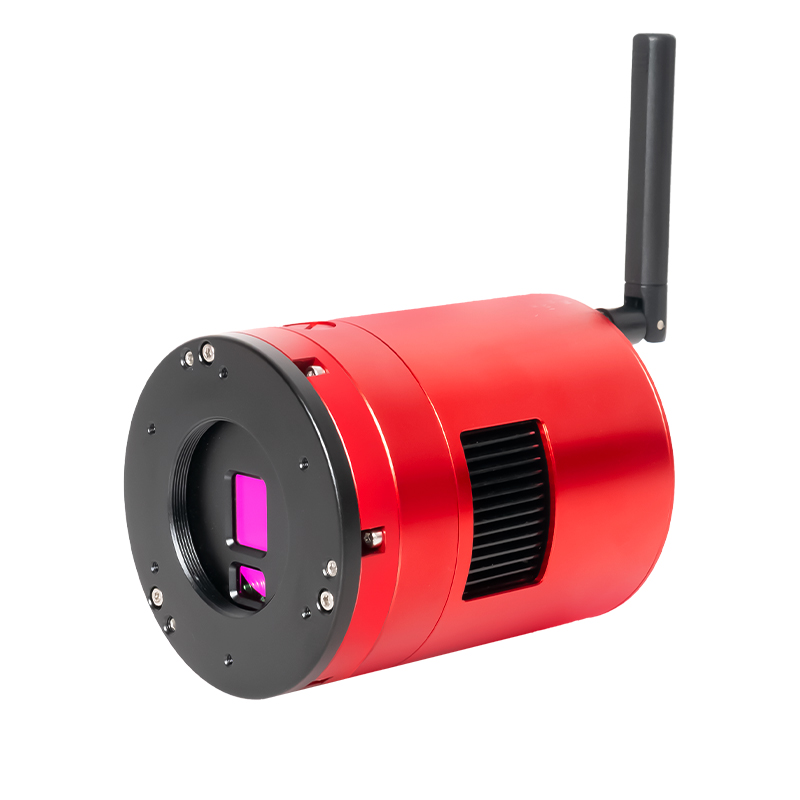

The ASI585MC Air combines three astrophotography accessories into one unit: a main imaging camera, a guide camera, and a smart controller. Aside from a telescope and mount, this camera contains everything a beginner imager needs to get started in astrophotography at an affordable price!
ASI585MC Air Review
Talented astrophotographer The Space Koala shared her thoughts about the camera in this ZWO ASI585MC Air review video:
3 Accessories in 1 Camera
Imaging Camera
The ASI585MC Air is powered by the versatile Sony IMX585 sensor, delivering outstanding performance for both deep-sky and planetary imaging! Its balanced sensor size and fast frame rate make it a true all-in-one camera. With ZWO’s upgraded High Conversion Gain (HCG) mode, the ASI585MC achieves an impressive 12 stops of dynamic range—reducing noise and preserving fine detail in both faint and bright areas of your images.
Guide Camera

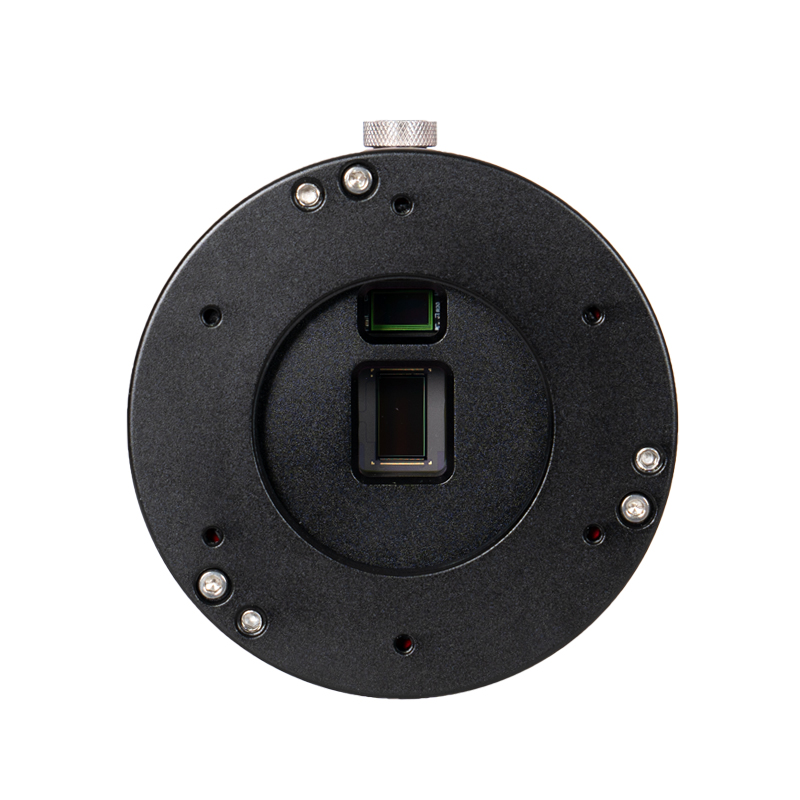

Just above the main camera's imaging sensor, you'll notice a smaller guide sensor. This highly-sensitive ASI220MM guide camera allows you to simultaneously image and autoguide (stay locked on your target) at the same time, which normally requires two separate devices! This setup is perfect for beginners or traveling astrophotographers wanting to keep things simple.
ASIAIR Smart Controller
The ASI585MC Air contains a built-in ZWO ASIAIR. This smart controller device allows you to control every aspect of your telescope, mount, camera, guiding, and more all from your smartphone or tablet. Thanks to the onboard WiFi antenna, you can comfortably capture the cosmos from inside your home or vehicle while streamlining your astrophotography rig with fewer cables.
Versatile Imaging Possibilities
Deep Sky Objects
The Carina Nebula by Simon Lewis of Astroworkz
With the IMX585 sensor plus the built in guide sensor and cooling fan, capture stunning views of deep sky objects in sharp detail and minimal noise!
Planets
Jupiter by Jim Rivera, courtesy of ZWO
Unlike most other cooled cameras, the ASI585MC Air can capture the planets with ease thanks to its high frame rate mode!
Moon & Sun
The Moon by Christopher Schementi, courtesy of ZWO
Capture incredible details like craters on the Moon even with small telescopes with the IMX585 sensor's narrow field of view!
Full Control Of Your Astrophotography Rig

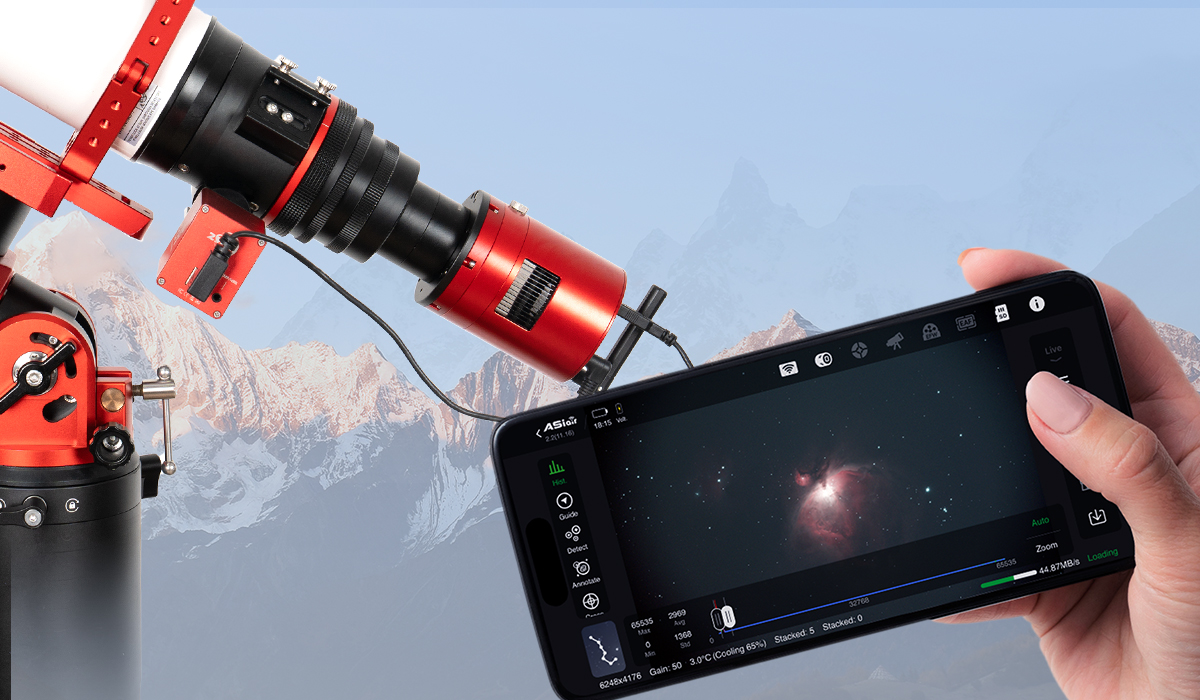

With the built-in ASIAIR smart controller, you can effortlessly control your telescope, mount, camera, guiding, and more all from your smartphone or tablet. The ASIAIR also features a sky atlas with over 4,000 targets, seamless connectivity to the ZWO EAF electronic focuser, live stacking ability for quick imaging sessions and public outreach, and works with virtually any equatorial mount!

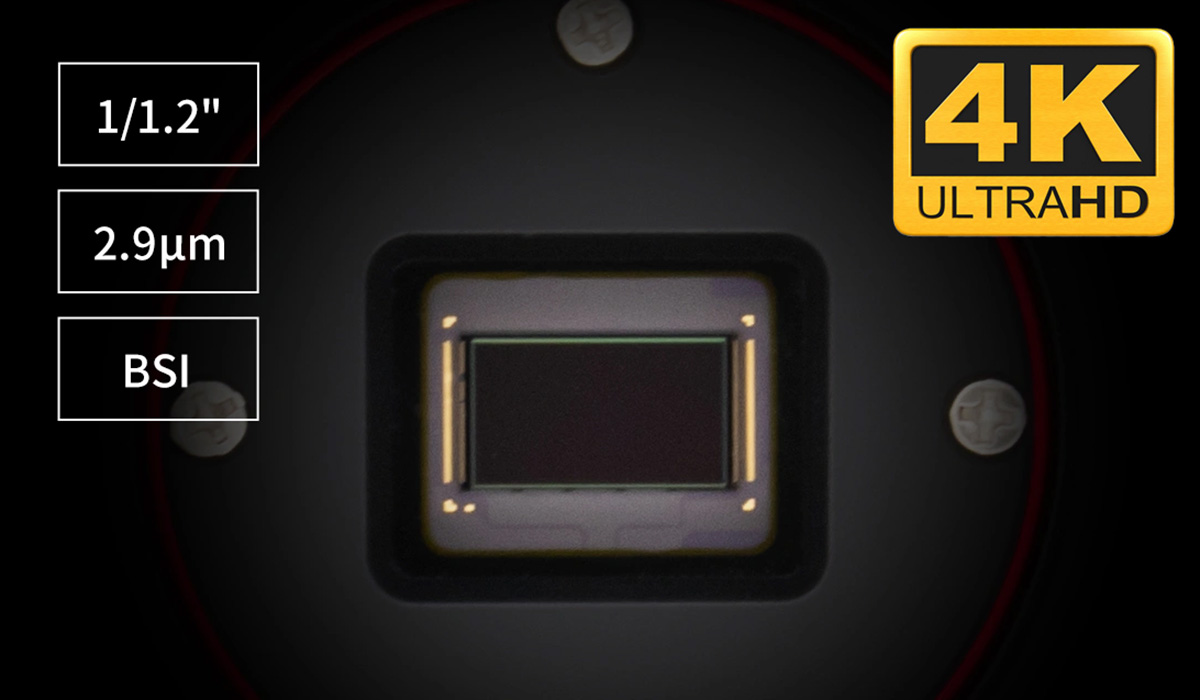

4K Sony STARVIS Sensor
The ASI585MC Air features a Sony STARVIS 2 camera sensor, which are excellent for low light for astrophotography. It also sports an ultra-high 4K resolution which looks great on any screen and is even print ready! Technical imagers will appreciate the 1/1.2" sensor size, 2.9 micron pixels, and back-side illuminated (BSI) sensor.

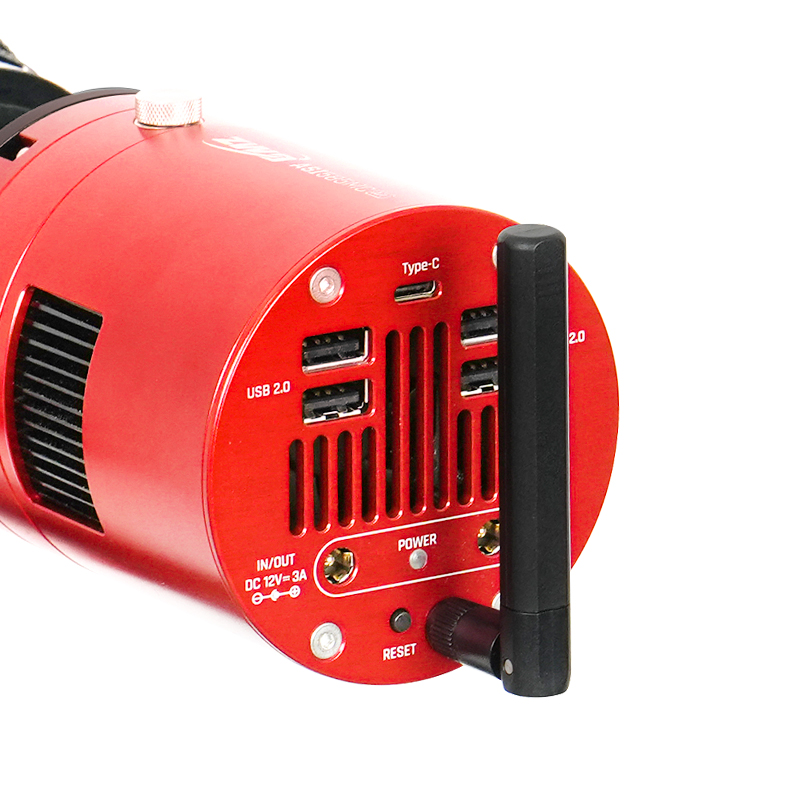

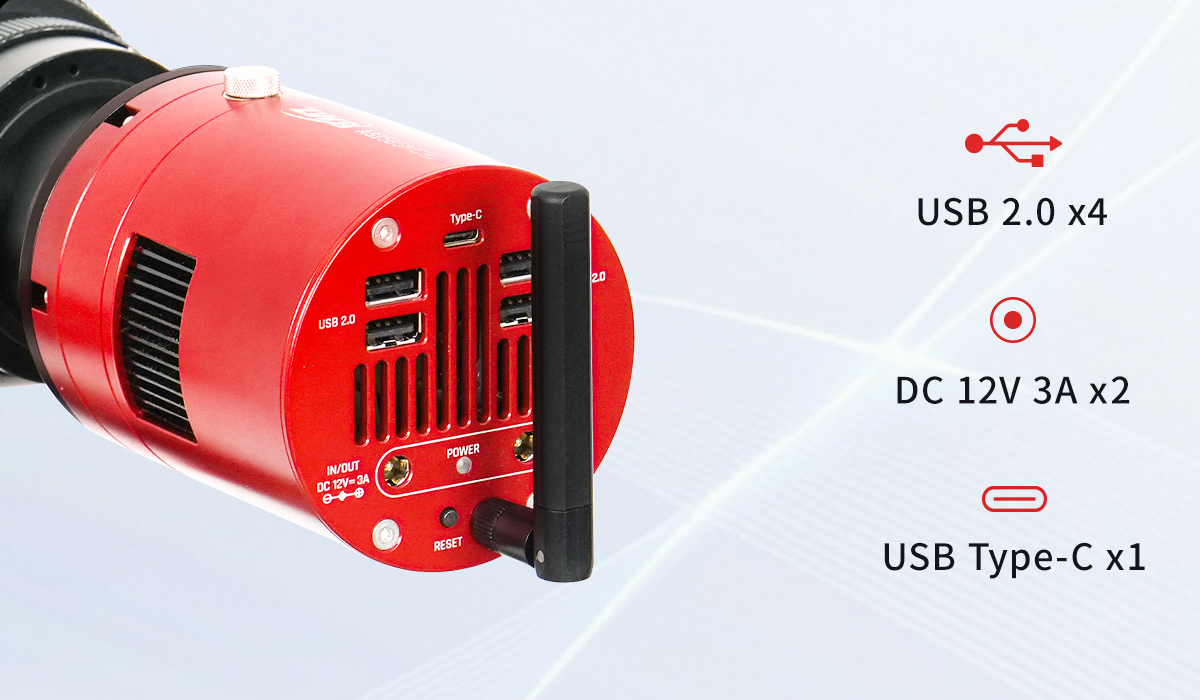

Ready for Astro Accessories
Featuring 1x USB-C port, 2x DC 12 volt 3 amp ports, and 4x USB 2.0 ports, the ASI585MC Air comes equipped to attach nearly any accessory you'd like to connect! Seamlessly connect to a ZWO EAF electronic focuser, ZWO CAA rotator, dew heater band, or a ZWO AM5N or AM3 mount.
Built-in 256GB Storage
With 256GB storage, you can save thousands of images before running out of space. When you're almost full, simply connect the ASI585MC Air to your computer with the USB-C port. With speedy read and write speeds, you can transfer your images to a computer and clear space for your next string of clear nights.

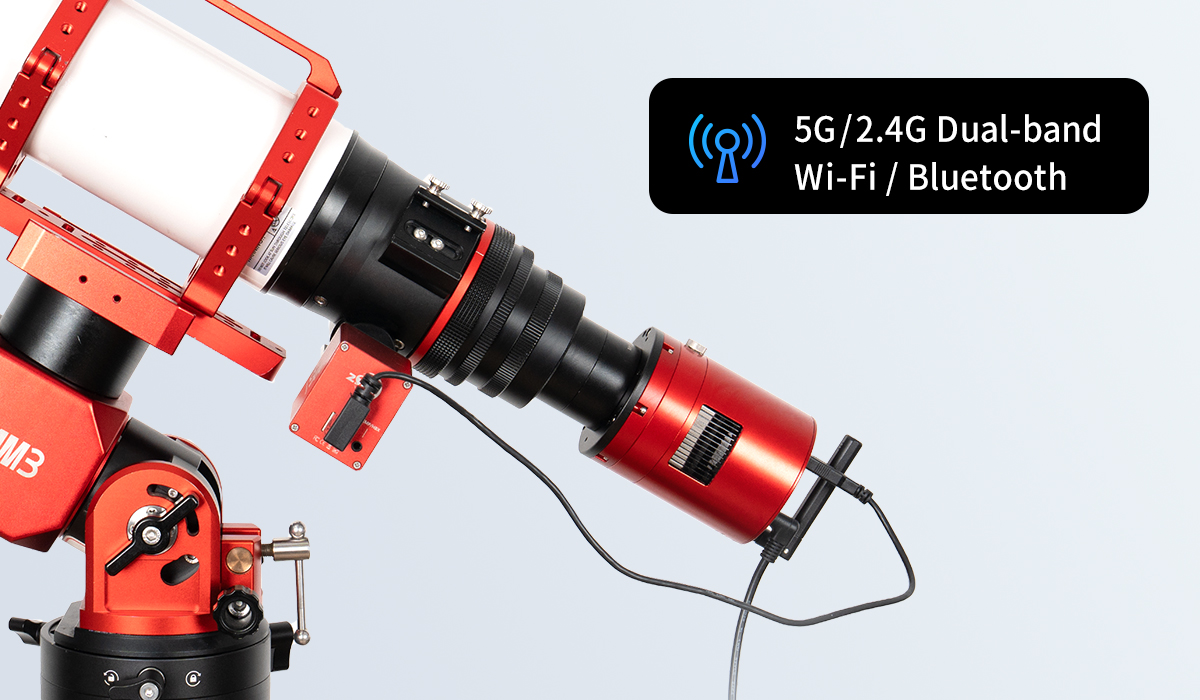

Dual Connectivity with WiFi & Bluetooth
The ASI585MC Air comes standard with both WiFi (5g + 2.4g) and Bluetooth connectivity, making it easy to connect to your smartphone or tablet! Select accessories, like the ZWO AM5N mount, can also wirelessly connect to the ASI585MC Air. With Station Mode, you can connect to a WiFi network to image from anywhere in the house.

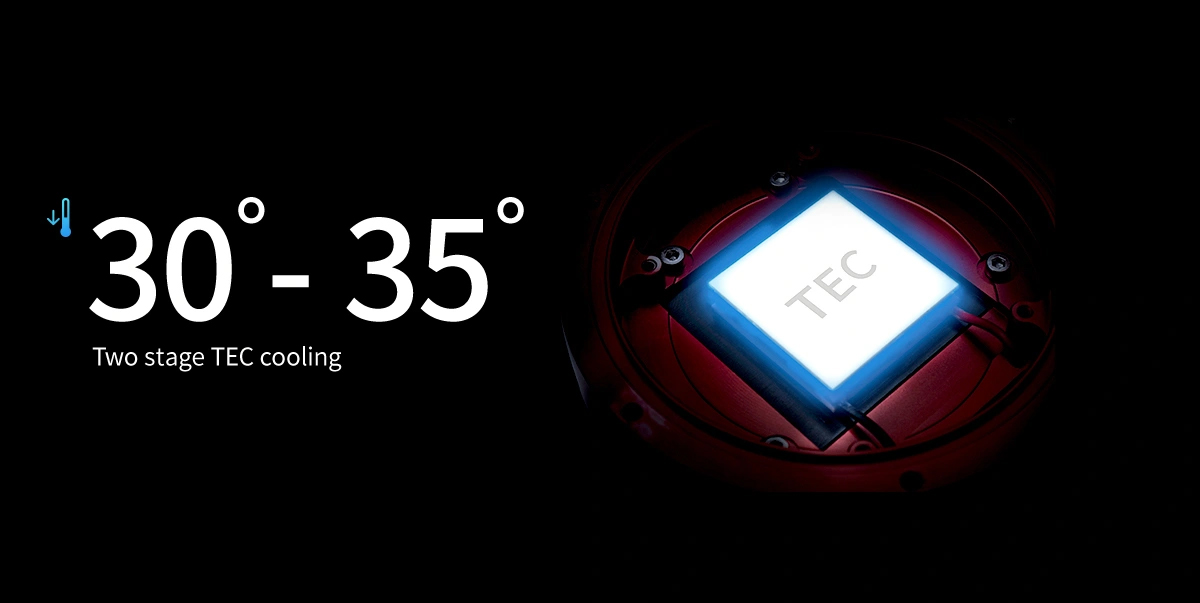

Built-in Cooling Fan
With its two-stage TEC (thermoelectric cooler) fan, the ASI585MC Air keeps the Sony sensor up to 35 degrees Celsius cooler than the ambient temperature. This greatly reduces noise (grain) from your images, resulting in a much cleaner overall image compared to a non-cooled camera like a DSLR or mirrorless camera.

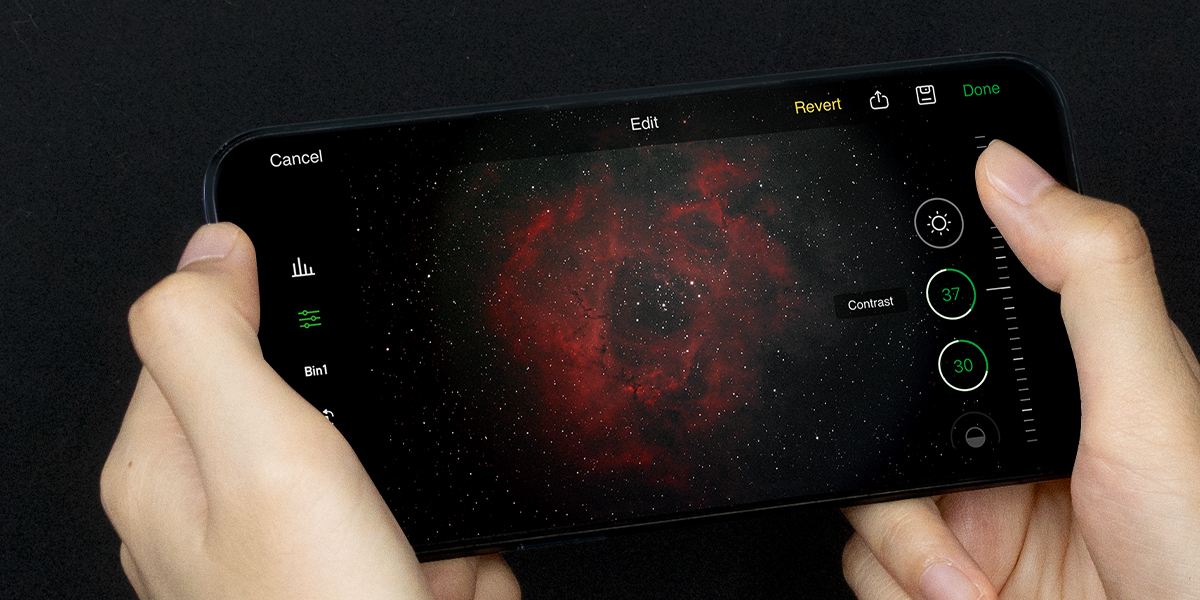

Easy Post-Processing and Sharing
With live stacking, watch the image of deep sky objects like nebulae, galaxies, and star clusters come to life as each new exposure automatically stacks onto the previous one! When you're ready to share, make edits using the built-in brightness, contrast, and saturation tools in the ASIAIR app and post to your favorite social media apps.
Specifications
Main Imaging Camera
- Sensor: SONY IMX585
- Sensor Type: Color
- Sensor Size: 1/1.2''
- Pixel Size: 2.9μm
- Shutter: Rolling shutter
- Image Resolution: 3840×2160
- Spectrum Range: 200nm–1000nm
- Read Noise: 0.7–6.67e (3.8e @ 19.8dB gain)
- Peak Quantum Efficiency: < 91%
- Full Well Capacity: 40Ke*
- Diagonal: 13.2mm
- SNR: 12 stops
- Dynamic Range: 12 bit
-
Frame rates:
-
1920 × 1080 at 10.8fps
-
1280 X 960 at 17.2fps
-
1280 × 720 at 22.2fps
-
640 × 480 at 30fps
-
480 X 360 at 30fps
-
320 × 240 at 30fps
-
Guide Camera
- Sensor Type: Mono
- Sensor Size: 1/1.8''
- Pixel Size: 4μm
- Shutter: Rolling shutter
- Image Resolution: 2.07MP (1920×1080)
- Spectrum Range: 300nm–1000nm
- Read Noise: 0.6–3.2e (1e @ 10.6dB gain)
- Peak Quantum Efficiency: 92% at 500nm
- Full Well Capacity: 8.78Ke
- Diagonal: 8.81mm
- Max Frame Rate: 8.5 fps (1920×1080)
- SNR: 11.4 stops
- Dynamic Range: 11.43 bit
Dimensions, Weight, & More
- Camera body: 78mm diameter x 108mm long
- Antenna: 94mm long
- Weight: 1lb, 6oz (635g)
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -20°C to 60°C
- Operating Humidity: 20% ~ 90%
- Storage Humidity: 30% ~ 70%
- RAM: 2GB DDR4
- Storage Space: eMMC 256GB
- Wireless Network: IEEE 802.11a/b/g/n/ac, 2.4GHz/5GHz, effective range: 20m
- DC Power: 12V @ 3A–10A input; all 3 DC ports can be used as input or output
- HUB: USB 2.0 – HUB ×4
- OS: Windows, Linux, Mac OS
- Adapter Ring: M42×0.75
- Back Focus: 12.5mm or 17.5mm
- Power Mode: DC 12V – 3A (whole unit)
- Max Power Dissipation: 24.6W (whole unit)

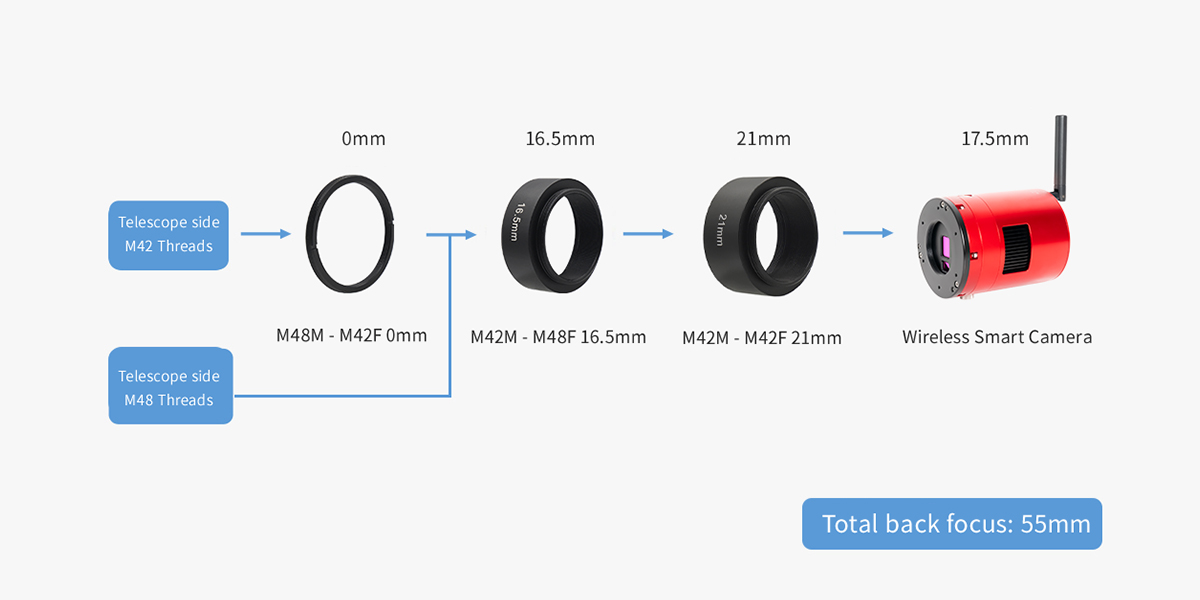

ASI585MC Air Back Focus Connection Diagram
The 21mm spacer can be replaced with the ZWO 2" Filter Drawer, which allows the use of imaging filters to enhance contrast and reduce star sizes.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
-
Camera body
-
T2 extender(21mm)
-
T2-M48 extender
-
M42-M48 tilter
-
USB2.0 cable
-
DC 1m cable
-
DC 1.5m male-female extension cable
-
External antenna
-
2mm M2.5 hex wrench
-
Quick guide
-
1m hook & loop
