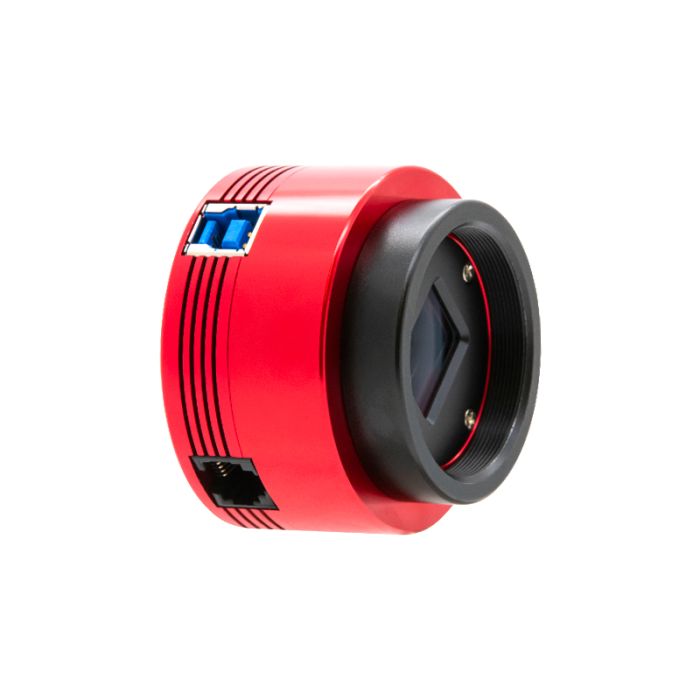

ZWO ASI585MM 8.29 MP CMOS Monochrome Astronomy Camera with USB 3.0
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Astronomical Camera with Large Full Well Capacity
The ASI585MM adopts Sony IMX585 CMOS sensor. As one of ZWO's latest planetary cameras, it features a large sensor format of 1/1.2", a high resolution of 3840x2160, and a surprisingly amazing characteristic of ZERO AMP GLOW! The pixel size is 2.9µm x 2.9µm. In 12-bit mode, it produces 46.9 FPS with super low readout noise!
8.29MP Sensor
The ASI585MM has the same pixel size of the ASI462MC at 2.9µm, but its resolution is 4 times that of ASI462MC, which is a total of 8.29 megapixels. The sensor size is 11.13x6.26mm, and the diagonal length is 12.84mm.
The 1/1.2" large sensor format makes it very suitable for solar and lunar imaging. It can also be used as an all-sky camera or live camera to observe and monitor cloud cover, rain, meteors and other weather conditions.
STARVIS 2
The ASI585MM adopts the latest SONY IMX585 sensor with STARVIS 2 technology. Featuring zero amp glow, lower dark current noise, and 3 times larger full well capacity. It is also more sensitive to red, green and near infrared (NIR) lights especially in >850nm wavelength range.
USB 3.0 & 256MB DDR3 Memory
The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmis-sion. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.
Large Full Well Depth
Thanks to the back-illuminated sensor structure and advanced pixel technology, the camera has very low readout noise and a large full well depth. Especially in low light conditions, the camera performs excellent, capturing very clear images of celestial objects.
Camera Curve - Low read noise, high dynamic range
With ZWO’s upgraded High Conversion Gain (HCG) mode, the ASI585MM achieves an impressive 12 stops of dynamic range—reducing noise and preserving fine detail in both faint and bright areas of your images.
Quantum Efficiency
The peak quantum efficiency of the ASI585MM is 91%.
No Amp Glow
The ASI585MM exhibits zero amp glow, no matter how long the exposure and how high the gain value. Since it is implemented directly at the hardware level, it does not require software control.
Specifications:
- Color or Mono: Mono
- Sensor: 1/1.2" Sony CMOS IMX585
- Resolution: 3840 x 2160
- ADC: 12bit
- Full well: 38.7Ke
- Read noise: 0.7e
- Pixel size: 2.9µm
- QE: 91%
- USB: 3.0
- FPS 46.9
- Back focus: 6.55mm/17.5mm
- Diagonal: 12.84mm
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Camera body
- 1.25" Cover
- ST4 Cable
- 2" Cover
- Quick guide
- USB 3.0 Cable (2m)
- 1.25" Nosepiece
