- Full-frame Sony IMX455 BSI sensor with 61.2 MP resolution
- Ultra-low 0.86e read noise
- Zero amp glow
- Two-stage TEC cooling - up to -35°C below ambient
- Native 16-bit ADC with 14 stops of dynamic range
- Power supply (required) sold separately

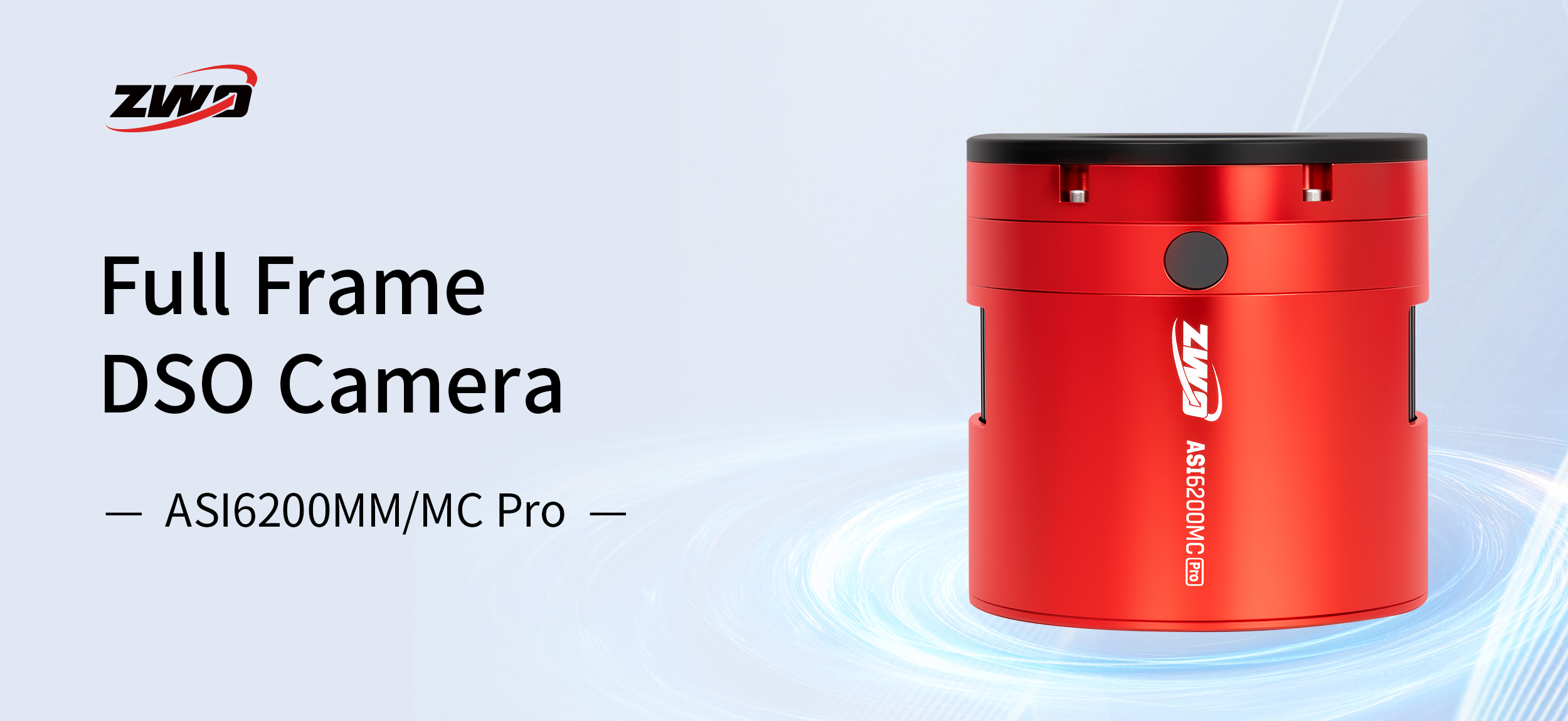

Meet the ASI6200MC Pro: Precision Imaging in Every Pixel
The ZWO ASI6200MC Pro is one of the most advanced color astrophotography cameras on the market, now updated for 2025 with improved electronics and a sleek new matte finish. This full-frame, cooled CMOS camera is built around Sony’s powerful IMX455 back-illuminated sensor, offering 61.2 megapixels of resolution, incredible sensitivity, and exceptionally low noise.
ZWO has refined the ASI6200MC Pro with a new motherboard that lowers readout noise and increases frame rate, making it even more effective for capturing galaxies, nebulae, and star clusters in stunning detail. Whether you’re upgrading from an older camera or starting your journey into full-frame astrophotography, the ASI6200MC Pro delivers professional-quality results with user-friendly features.

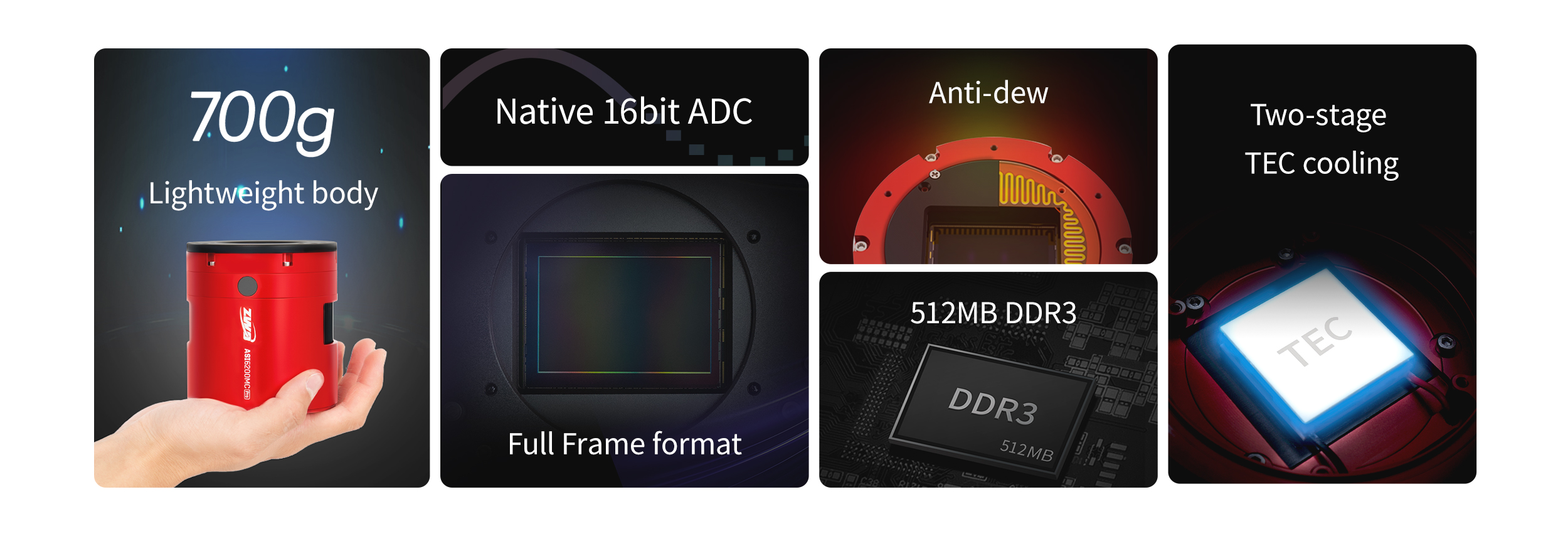

Six Unmissable Advantages
Key Features of the ASI6200MC Pro
Why Choose the ASI6200MC Pro
Full-frame Imaging Power
At the heart of the ASI6200MC Pro is Sony’s IMX455 sensor, a full-frame chip measuring 36 x 24 mm with a 43.3 mm diagonal. With a resolution of 9576 x 6388 and small 3.76 µm pixels.

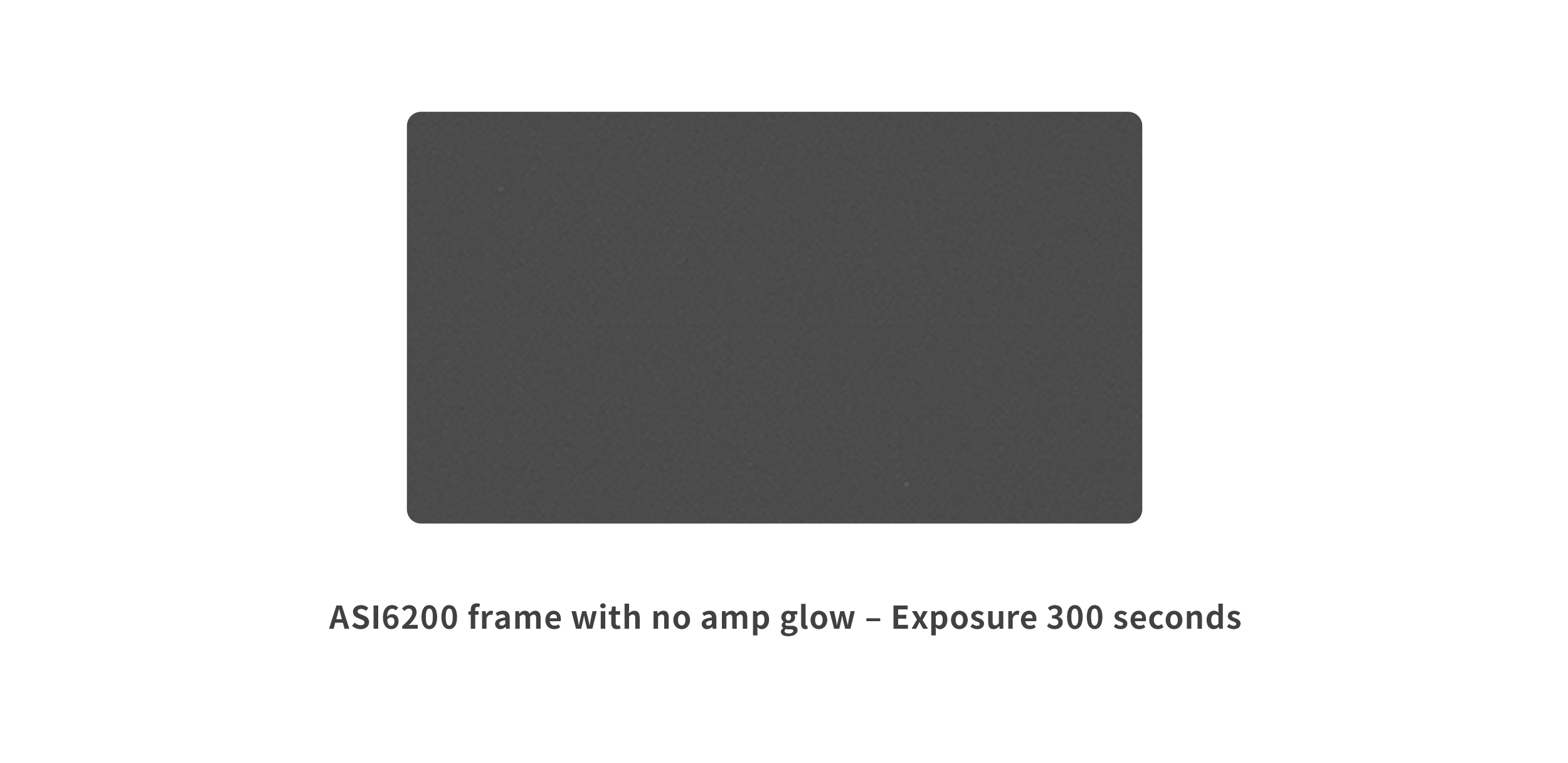

Zero Amp Glow
The true zero amp glow design guarantees clean, artifact-free images, even during long exposures at high gain. This means you can capture faint deep-sky details without unwanted bright spots or glow in the corners, giving you sharper, more professional results.

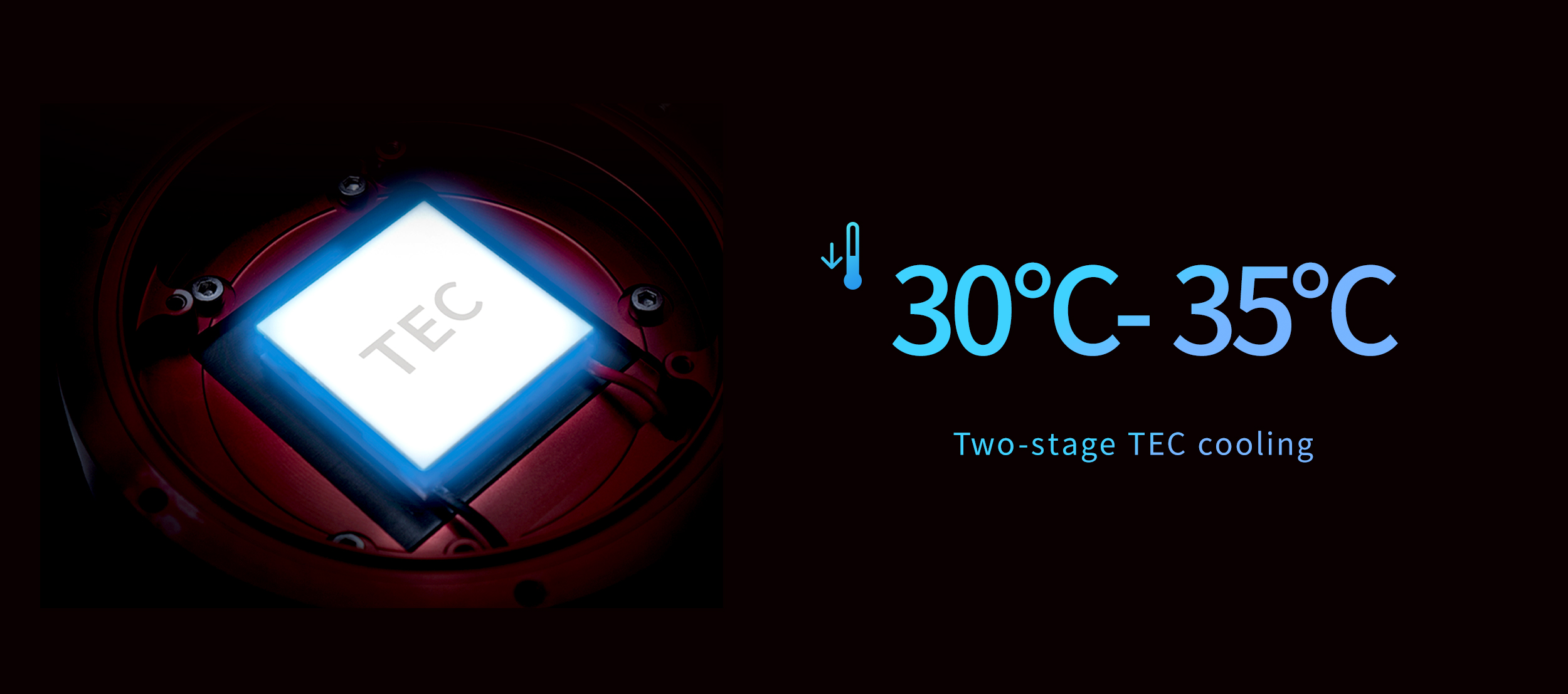

Advanced Cooling
A two-stage TEC cooling system allows the sensor to cool down up to 35°C below ambient temperature. This drastically reduces dark current noise. At 0°C, dark current noise is only 0.0017e/s/pix, effectively negligible, even in 5-minute exposures.

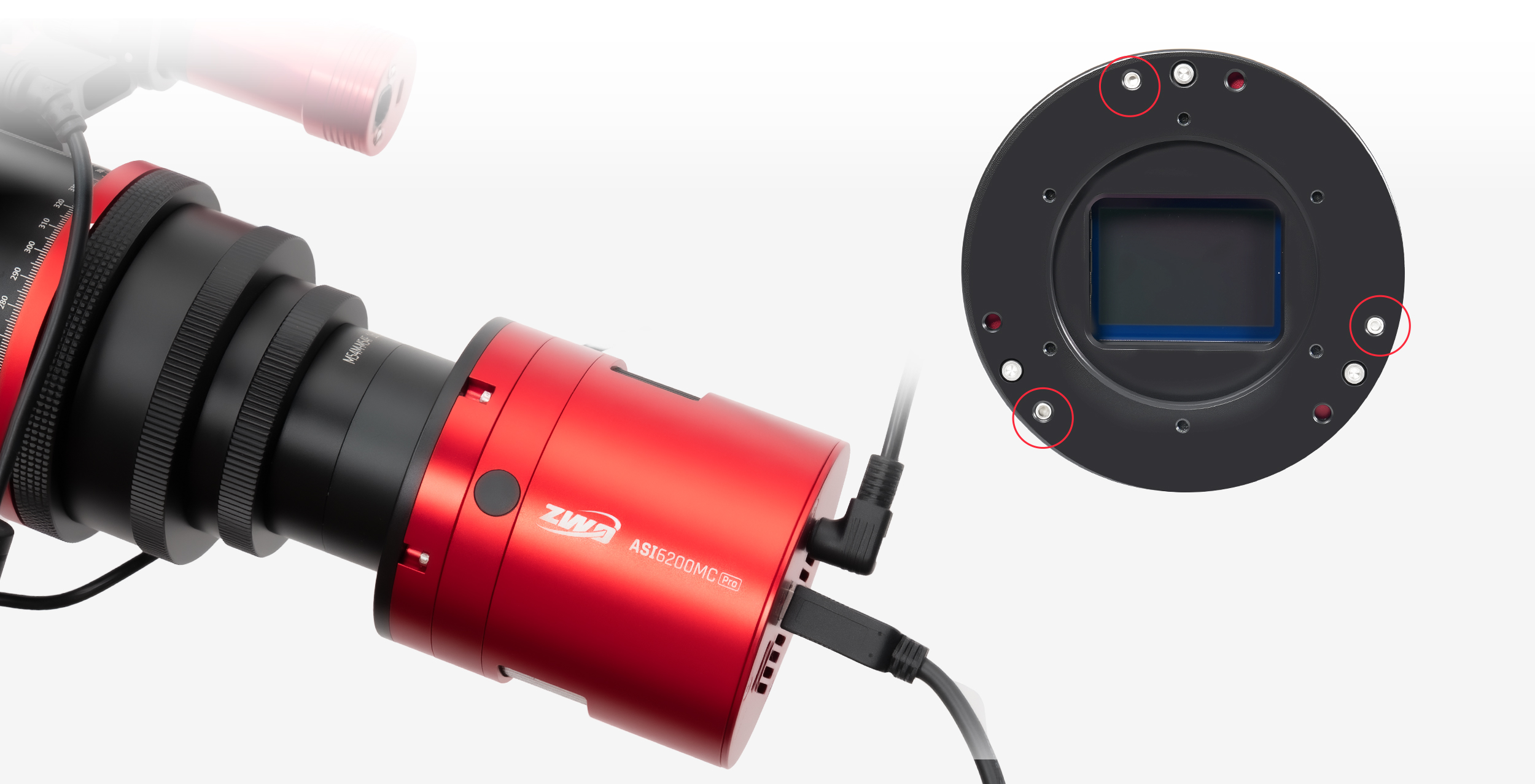

Tiltable Sensor Design
The ASI6200MC Pro includes a tiltable sensor mount with push-pull screw adjustments, allowing you to fine-tune tilt and achieve a perfectly flat imaging field across your entire frame.

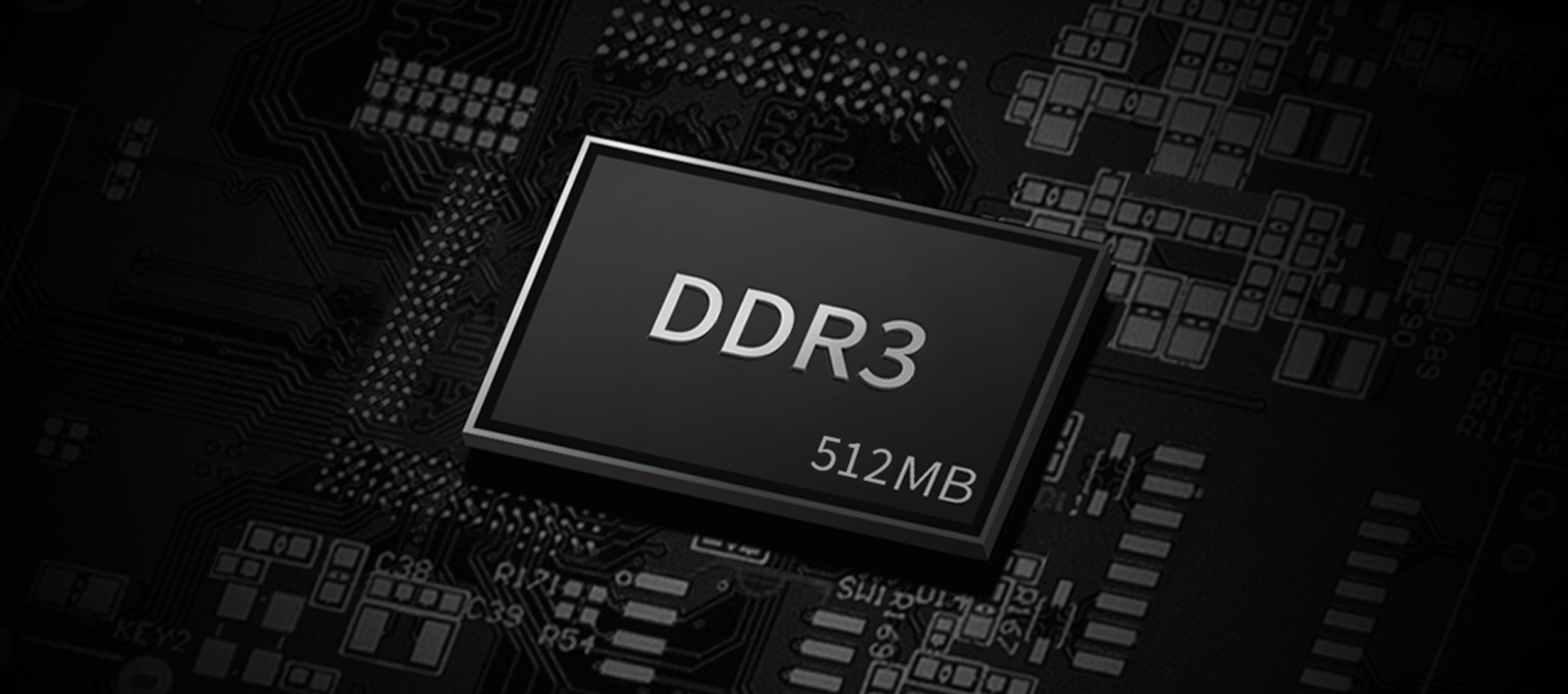

Stable Data Transfer
With USB 3.0 connectivity and a 512MB DDR3 buffer, this camera ensures smooth, stable data transmission with no dropped frames, even during long exposures.

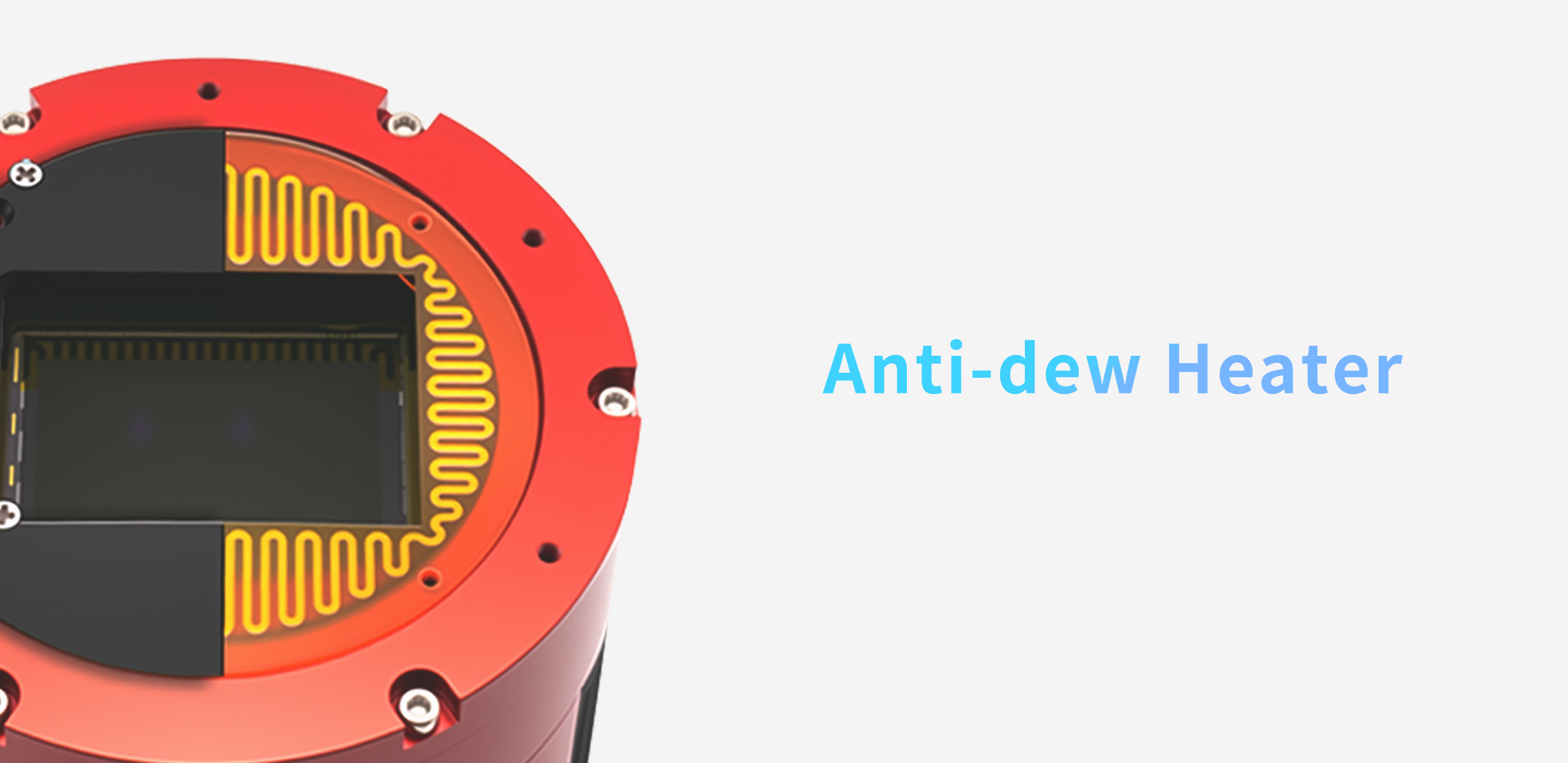

Built-in Anti-dew Heater
ZWO’s built-in polyimide anti-dew heater keeps the protective window clear, preventing condensation and ensuring you don’t lose imaging time. It fully covers the window and heats it evenly, eliminating dew problems during your imaging sessions.
Full Well Capacity Preserves Bright Stars
The 51.4ke full well capacity ensures bright stars are preserved without saturation, even in long exposures. The 51.4ke full well capacity ensures bright stars are preserved without star saturation. This means the cores of bright stars won’t blow out, so you retain fine detail even during long exposures.

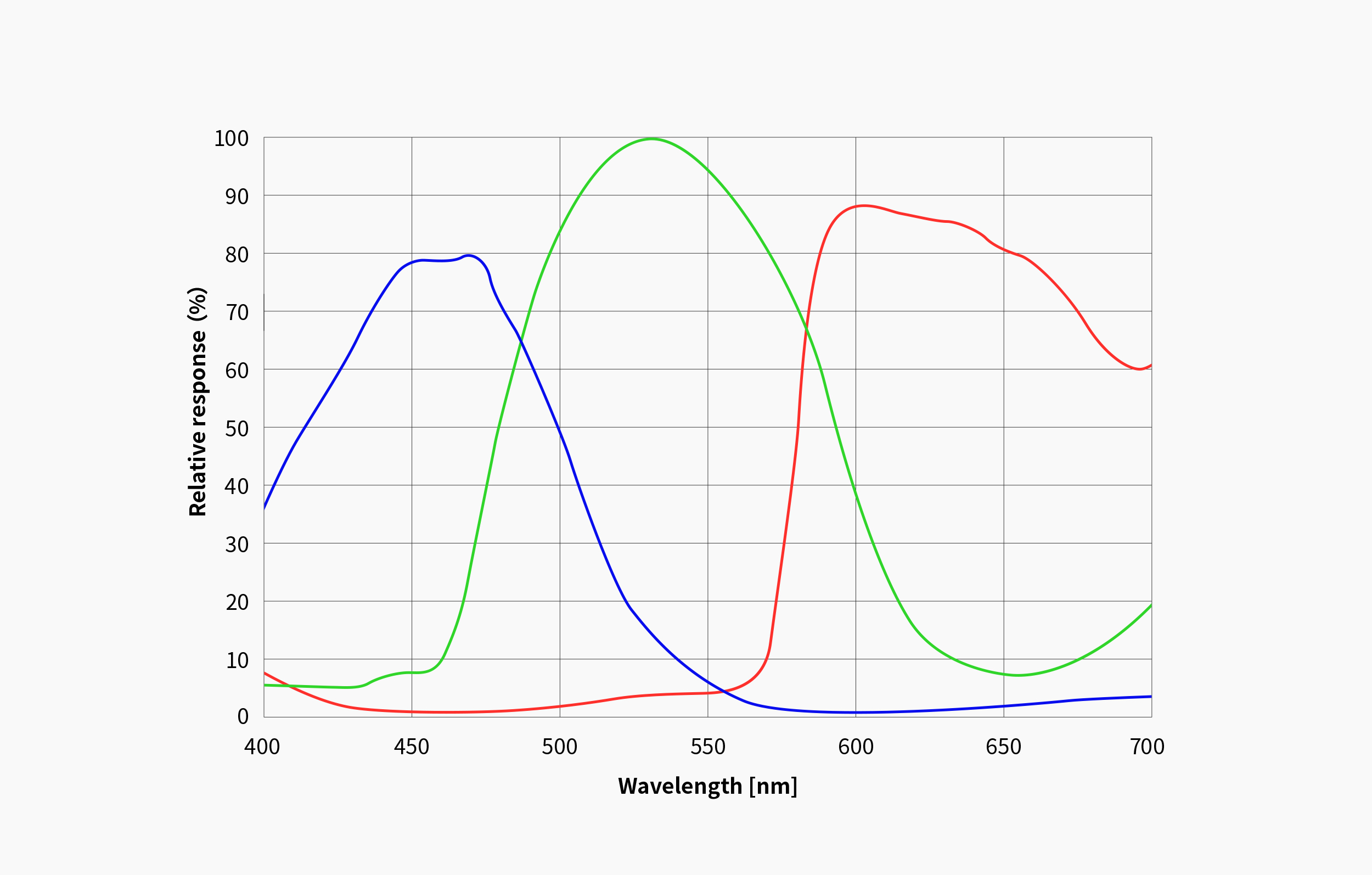

High Quantum Efficiency
The IMX455 sensor achieves a peak QE of 80%, maximizing sensitivity and making the most of every photon collected by your telescope.

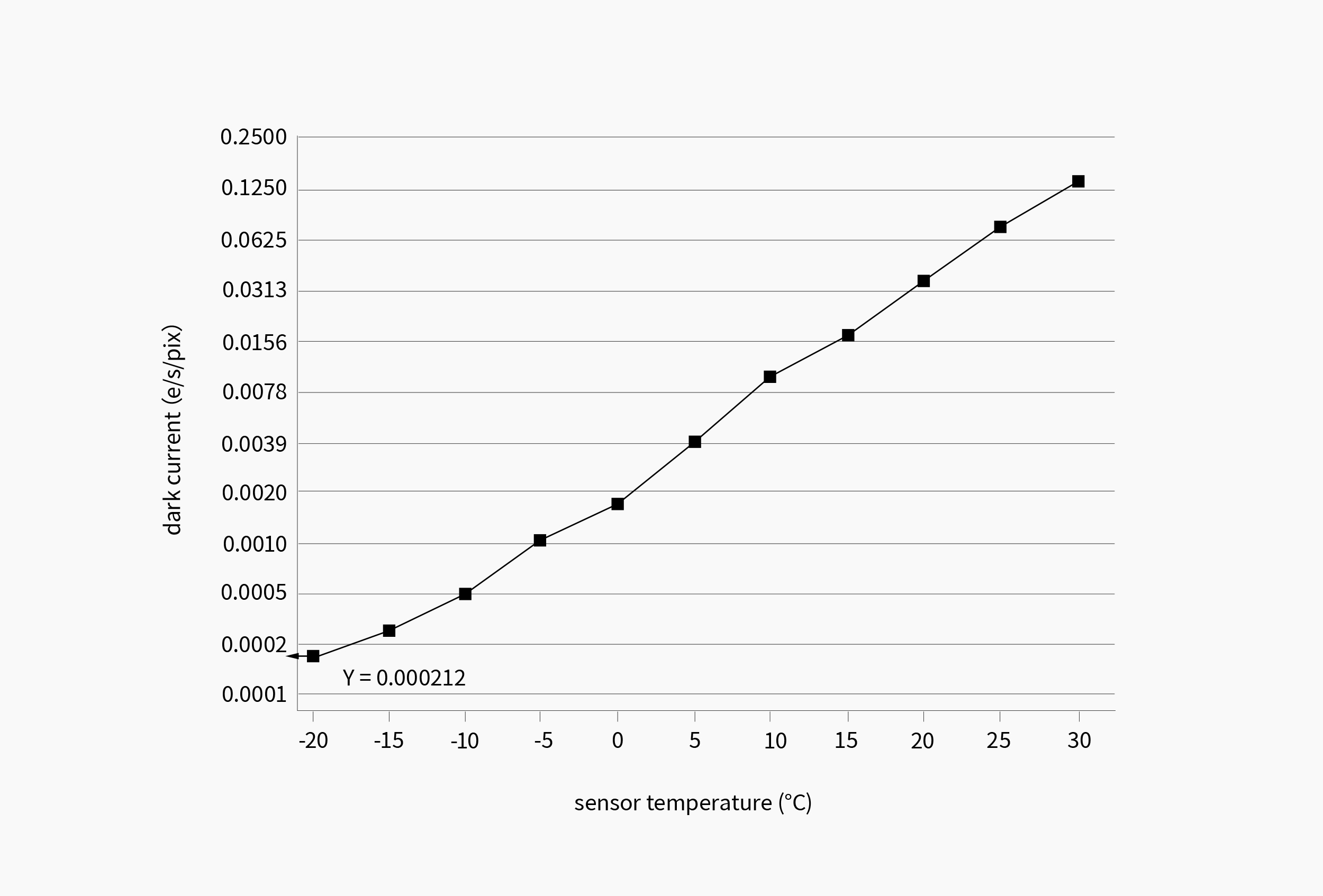

Ultra-low Dark Current
The unique dark current suppression technology can further reduce dark current noise. At a cooling temperature of 0°C, the dark current noise is only 0.0017e/s/pix. This means a 300s exposure will only cause a dark current noise of 0.51 e/pix, which is completely negligible!

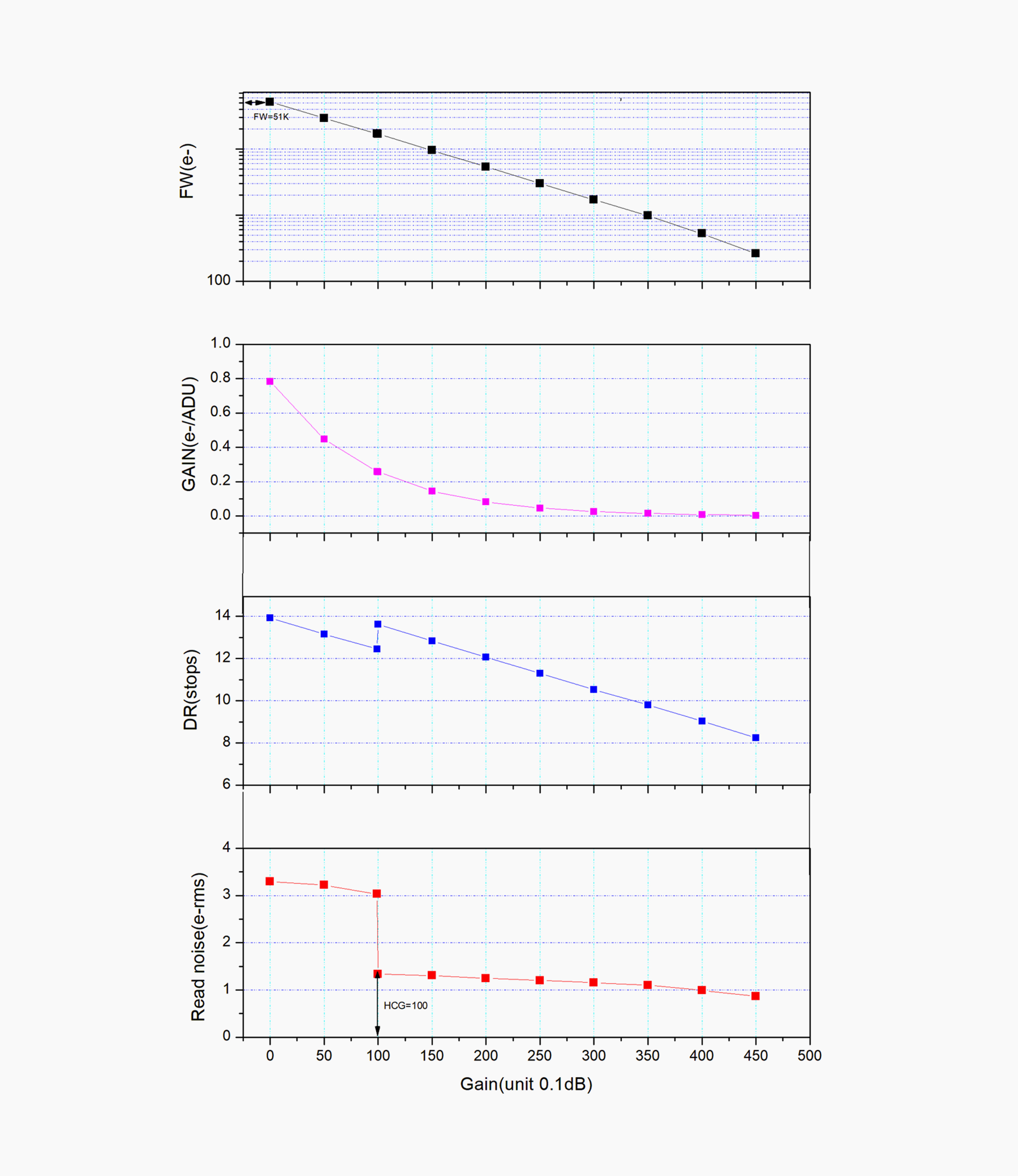

Low Readout Noise, High Dynamic Range
The updated electronics of the ASI6200MC Pro lower read noise to just 0.86e, making faint details easier to capture. Combined with a dynamic range of up to 14 stops, this reduces overexposed areas and delivers smoother, more natural color gradients.
The built-in high conversion gain (HCG) mode automatically engages at a gain of 100, further lowering read noise while maintaining the full dynamic range for high-gain imaging.

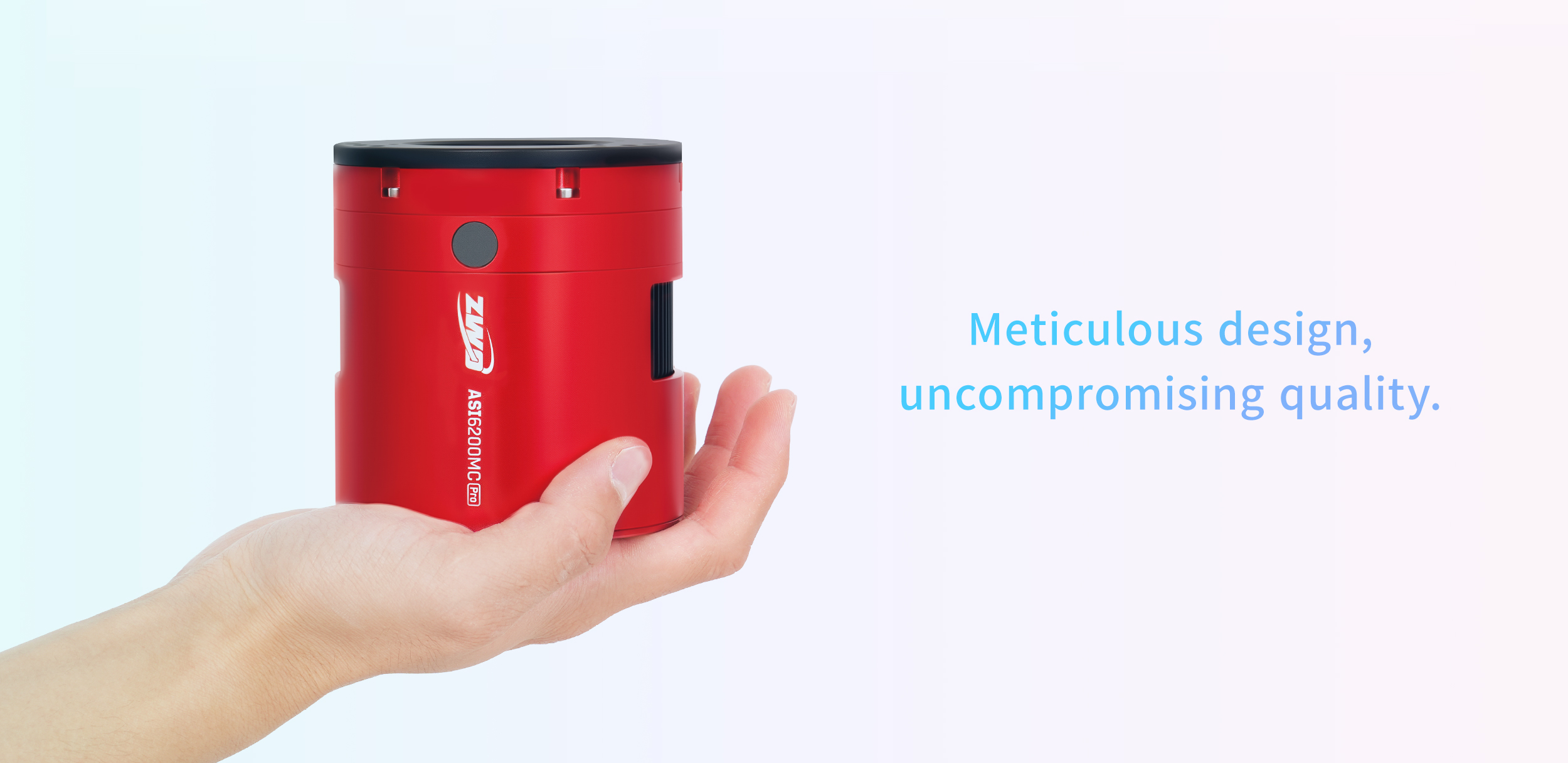

Lightweight, Premium Build
Despite its advanced features, the camera weighs only 0.7 kg (1.54 lb), reducing stress on your imaging setup. The refreshed matte finish gives it a durable, professional look.

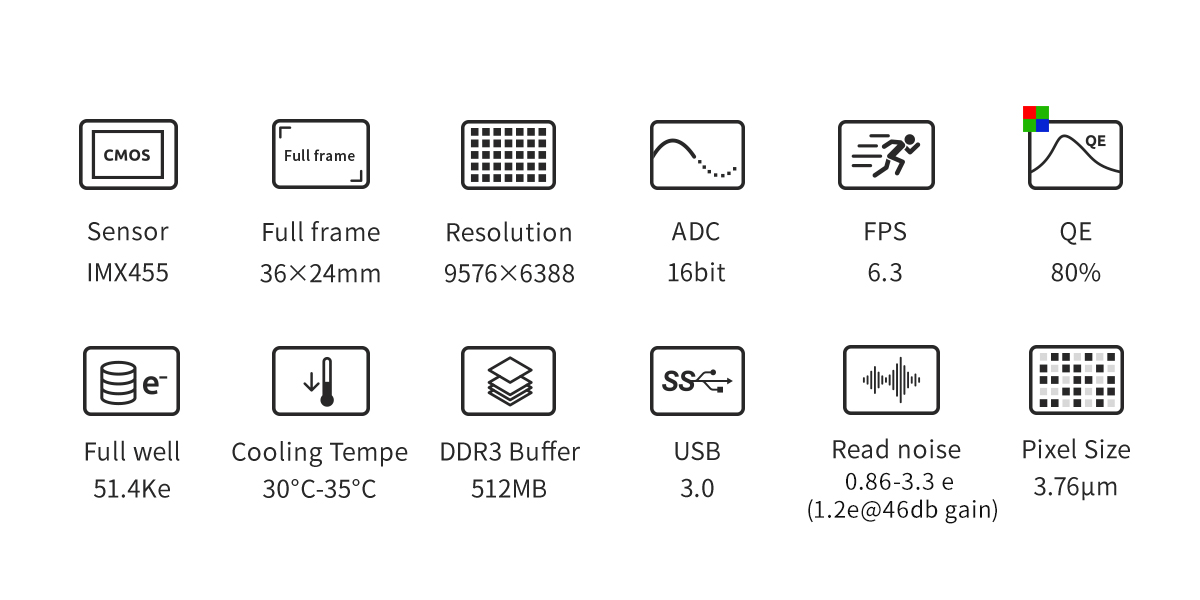

Specifications
- Feature: ZWO ASI6200MC Pro (2025 Model)
- Sensor: Sony IMX455 BSI CMOS
- Sensor Size: 36 x 24 mm (Full Frame)
- Resolution: 9576 x 6388 (61.2 MP)
- Pixel Size: 3.76 µm
- Full Well Capacity: 51.4 ke
- ADC: Native 16-bit (14 stops dynamic range)
- Read Noise: As low as 0.86e
- Cooling: Two-stage TEC, ΔT 35°C below ambient
- Dark Current: 0.0017e/s/pix at 0°C
- QE Peak: 80%
- Buffer: 512MB DDR3
- Weight: 0.7 kg (1.54 lb)
- Body Finish: Matte Pro finish
- Anti-Dew Heater: Built-in polyimide heater
- Tiltable Sensor: Yes
- Connections: USB 3.0, 2x USB 2.0
- Power Requirement: 12V DC, 3–5A (not included)

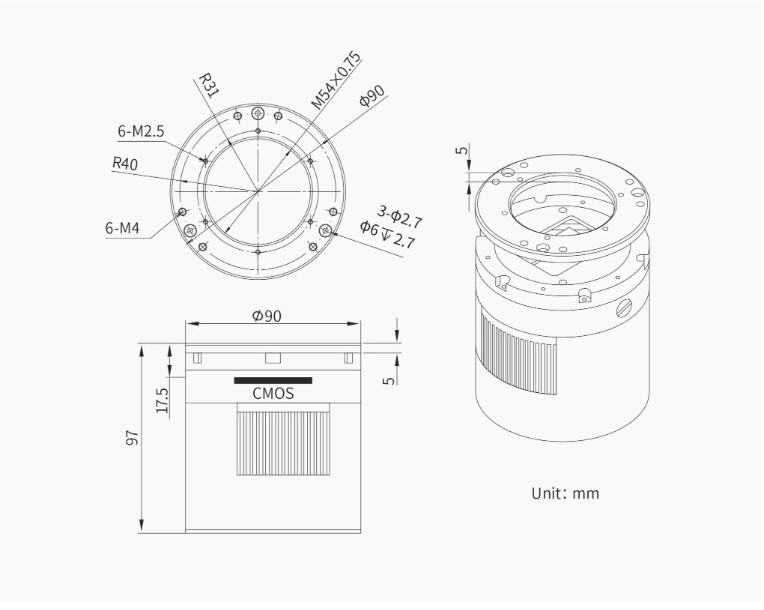

Mechanical Diagram
Frequently Asked Questions
What power supply do I need?
The ASI6200MC Pro requires a 12V DC power source capable of 3–5A. You can use ZWO’s AC adapter, the DC out from an ASIAIR, or a lithium battery (11–14V). A USB 3.0 connection alone isn’t enough to power the TEC cooler.
Is this camera compatible with the ASIAIR?
Yes, the ASI6200MC Pro is fully compatible with ASIAIR, as well as ASCOM, INDI, and other astrophotography software.
How does this model differ from the previous version?
The 2025 refresh includes a new motherboard with lower read noise and faster frame rates, a matte Pro finish, an increased buffer (512MB), and added anti-dew and sensor tilt adjustment features.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |

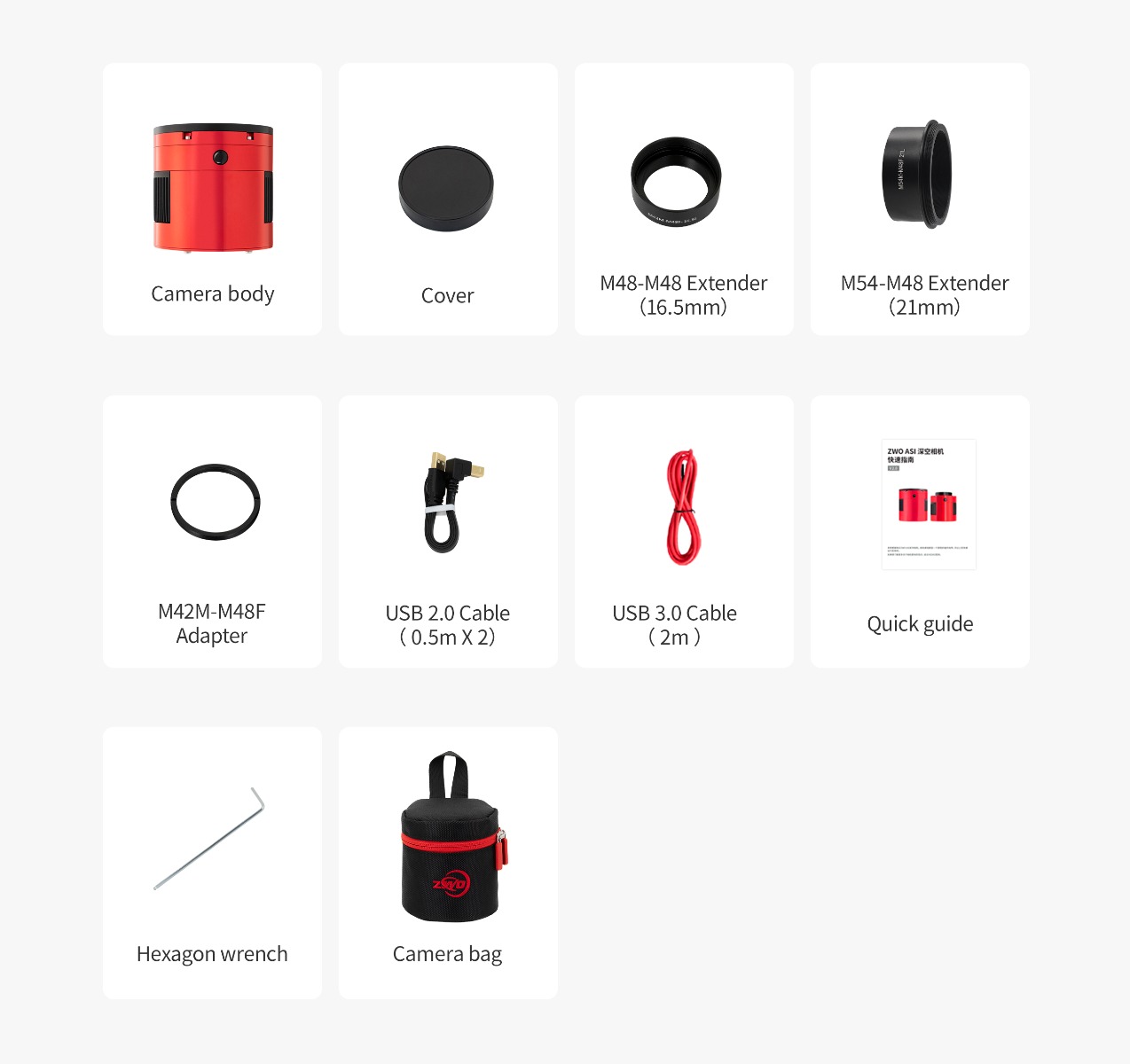

- ZWO ASI6200MC Pro Camera Body
- Dust Cover
- M48-M48 Extender (16.5mm)
- M54-M48 Extender (21mm)
- M42M-M48F Adapter
- USB 2.0 Cable (2x0.5 meter)
- USB 3.0 Cable (2 meters)
- Quick Guide
- Hexagon Wrench
- Padded Camera Bag
