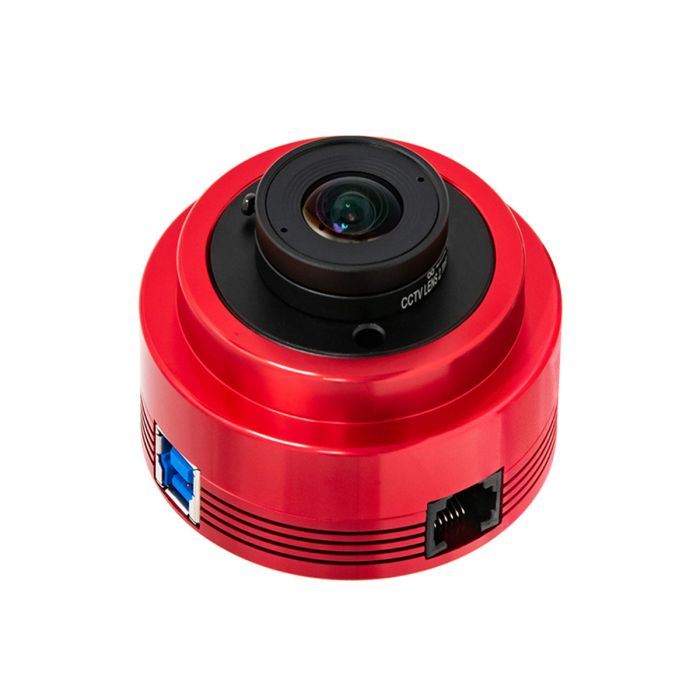

ZWO ASI662MC 2.07 MP CMOS Color Astronomy Camera with USB 3.0
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The ASI662MC adopts the Sony IMX662 sensor, has a rolling shutter, a frame size of 1/2.8", a pixel size of 2.9um, and has 2.07 million pixels (1920x1080). In high speed mode the CMOS sensor can output 102.6 frames/second at full resolution and provide a low read noise level.
Large full well capacity, not easy to overexpose
The ASI662MC adopts Sony IMX662 sensor with the latest technology. Compared to the previous generation of sensors, it has very low readout noises and an extreme large full well capacity which is 3 times larger than that of IMX 462MC. This helps effectively avoid overexposure issues and also allow longer exposures. In low light conditions, the camera performs excellent, capturing very clear images of celestial objects.
STARVIS 2
ASI662MC adopts the latest SONY IMX662 sensor with the advanced STARVIS 2 technology. Featuring zero amp glow, higher sensitivity to red and near infrared (NIR) light, and 3 times larger full well capacity, it can be regarded as an upgrade of ASI462MC. Also, its dark current noise is several times lower than ASI174MC.
USB 3.0 & 256MB DDR3 Memory
The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.
Upgraded Model
The ASI662MC is an upgraded product of the ASI462MC. Compared with ASI462MC, it has the characteristics of a greater full well depth and no amp glow.
No Amp Glow
ASI662MC exhibits zero amp glow, no matter how long the exposure and how high the gain value. Since it is implemented directly at the hardware level, it does not require software control.
Camera Curve: Low read noise, high dynamic range
Readout noise includes pixel noise, circuit noise, and ADC quantization noise. The lower the readout noise, the better. As can be seen, the readout noise of ASI662MC is very low compared to CCD camera. The built-in HCG mode can effectively reduce the readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. When the gain is 252, the HCG mode is automatically turned on and the dynamic range rises back to 12bit.
Quantum Efficiency
The QE curve and readout noise are very important parameters to measure the camera's performance. Higher QE and lower readout noise are necessary to improve the image signal-to-noise ratio.
Specifications:
- Sensor: 1 / 2.8" CMOS Sony-IMX662AAQR-C
- Bayer Pattern: R Gr Gb B
- QE peak：91%
- Back focus length: 12.5mm
- Max fps: 107.6fps
- Full well: 37.8Ke
- Shutter: Rolling shutter
- Resolution: 2.07Mega Pixel,1920x1080
- Pixel Size: 2.9µm
- Exposure Range: 32μs~2000s
- Interface: USB 3.0 /USB 2.0 Type-B
- Protect window: φ21-1.1 AR
- ADC: 12bit
- Dimension: 5.568mmx3.132mm
- Weight: 126g
- Working Temperature: -5℃~50℃
- Storage Temperature: -10℃~60℃
- Working Relative Humidity: 0-80%
- Supported OS: WIN7/8/10 32&64, Linux, Mac
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
- Camera body
- 1.2" Cover
- ST4 Cable
- 1.25" Nosepiece
- Quick Guide
- USB 3.0 Cable (2m)
