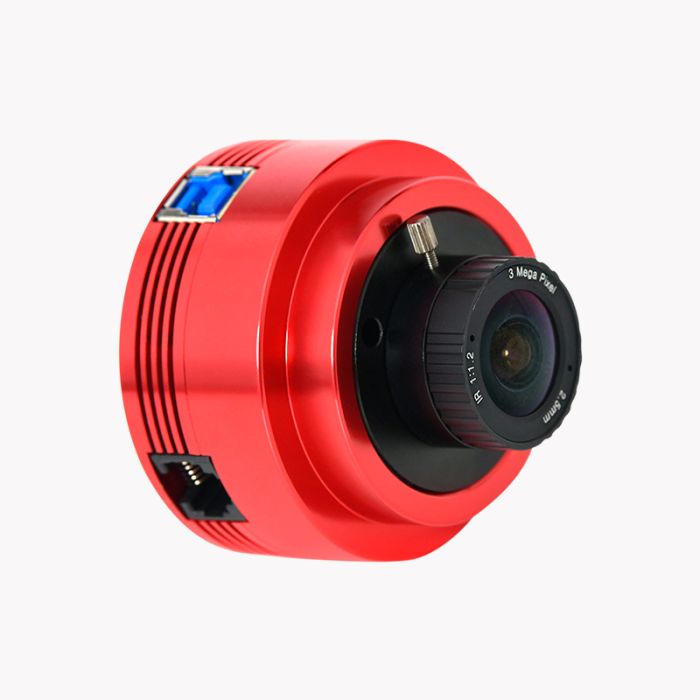

ZWO ASI664MC 4.15 MP CMOS Color Astronomy Camera with USB 3.0
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
ASI664MC is a remarkable new planetary CMOS camera. The 1/1.8” Sony IMX664 sensor features a small pixel size of 2.9µm pixel and a high resolution of 2704x1546 (4.15MP). In high-speed mode, the frame rate reaches 95fps, while the readout noise remains at a low level, as low as 0.46e!
The large sensor size and higher resolution compared with the ASI662MC result in sharper images for a better astrophotography experience.
STARVIS 2 Technology
You might not be a stranger to Sony’s STARVIS 2 technology. It offers ASI664MC outstanding image quality and imaging performance.
High Transmission Speed
This camera has a USB 3.0 interface, along with the built-in 256MB DDR3 cache, ensuring high-speed, smooth and stable data transmission.
ASI664MC vs ASI662MC
ASI664MC can be considered as an iteration of ASI662MC. With the great improvement in sensor size and resolution, it provides a larger FOV and also results in high-quality images containing more details.
Zero Amp Glow
ASI664MC adopts no-glow circuitry to avoid the annoying amp glow being produced, and ensure the image quality no matter how long the exposure and how high the gain value is.
(Note: This feature is implemented directly at the hardware level, it does not require software control.)
Camera Curve
Low readout noise, high dynamic range
The camera has a built-in HCG mode, which can effectively reduce readout noise at high gain and keep the dynamic range at the same level as it does at low gain. At gain 252 and above, the HCG mode is automatically turned on; the dynamic range is close to 11bit; the readout noise can be lower than 1.0e.
Quantum Efficiency
QE curve and readout noise are very important parameters to measure the camera’s performance. Higher QE and lower readout noise are necessary to improve the image signal-to-noise ratio.
According to our estimation, the QE peak value of ASI664MC is about 91%.
Protective Window
ASI664MC adopts an AR-coated filter as the protective window (diameter: 21mm, thickness: 1.1mm). It improves the camera’s performance in UV and NIR wavelengths.
Specifications
- Sensor: 1 / 2.8" CMOS Sony-IMX664
- Sensor size: 7.84 x 4.45mm
- Diagonal: 9.02mm
- Resolution: 4.15MP 2704x1536
- Pixel Size: 2.9µm
- Frame rate: 95fps
- Shutter: Rolling shutter
- Readout noise: 0.46-5.8e (3.2@19db gain)
- QE: 91%
- Full well: 36.5Ke
- ADC: 12bit
- Max frame rate: 95fps
- Back focus distance: 12.5mm
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
This item comes complete with:
- 1x Camera body
- 1x 1.25” Cover
- 1x ST4 Cable
- 1x 1.25” Nosepiece
- 1x Quick guide
- 1x USB 3.0 Cable (2m)
