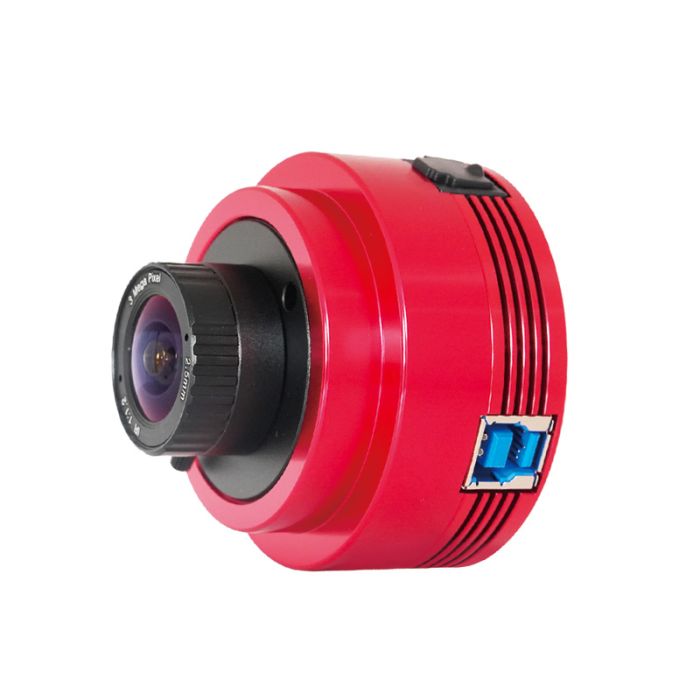

ZWO ASI676MC 12.6 MP CMOS Color Astronomy Camera
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
All-sky Camera
Introducing the ASI676MC, the all-sky camera featuring a unique square 1/1.6-inch image sensor and a super high resolution of 12MP! It is perfectly suited for meteor recording and full sky surveillance. The square format facilitates easier composition, making mosaic stitch simpler and more efficient, and the high resolution brings you clear details of the Sun and our Moon. With this camera, you may start your marvelous journey to explore the boundless night sky.
Why Square Format?
One of the biggest benefits of ASI676MC's square format is it makes the whole mosaic construction process much easier by eliminating the need to consider the difference between the long and wide sides of the format during mosaic stitching.
Not only that, the square format also makes the ASI676MC more compatible with various types of lenses such as fisheye lenses and wide-angle lenses. Thus, ASI676MC is more suitable for tasks such as meteor recording and full sky surveillance.
STARVIS 2
STARVIS is a sensor technology developed by Sony that surpasses the sensitivity of the human eye. STARVIS 2 is an advancement of STARVIS technology, supporting an even higher dynamic range.
With this technology, ASI676MC exhibits lower readout noise and dark current, along with significantly enhanced sensitivity in the near-infrared spectrum.
No Amp Glow
ASI676MC does not have any amp glow, no matter how long the exposure and how high the gain value you set. Note: This technology is implemented directly at the hardware level, it does not require software control.
256MB DDR3
The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission.
HCG Mode
The camera has a built-in HCG mode, which can effectively reduce readout noise at high gain. This allows the camera to maintain the same high dynamic range as it does at low gain. When the gain is 180, the HCG mode is automatically turned on. The readout noise is as low as 0.56e, and the dynamic range can still reach a level close to 11stops.
Quantum Efficiency
The QE curve and readout noise are very important parameters to measure the camera's performance. Higher OE and lower readout noise are necessary to improve the image signal-to-noise ratio.
Dark Current Noise
The ASI676MC's lower dark current noise means that the image signal-to-noise ratio is also higher, especially when photographing dark objects, it produces images with better sharpness.
UV/IR-cut Coated Window
ASI676MC is equipped with an UV/IR-cut coated window in front of the sensor, with a diameter of 21mm and a thickness of 1.1mm. It effectively reduces infrared interference and improves image quality.
Specifications
- Sensor: IMX676, 1 / 1.6″ 7.1*7.1mm
- Resolution: 3552*3552
- ADC: 12bit
- QE: 83%
- Read Noise: 0.56e
- FPS: 31.2
- Full Well: 10.55Ke
- USB: 3.0
- Pixel Size: 2µm
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
This item comes complete with:
- ASI676MC camera body with all-sky lens
- 1.2" Cover
- ST4 Cable
- 1.25" Nosepiece
- Quick Guide
- USB 3.0 Cable (2m)
