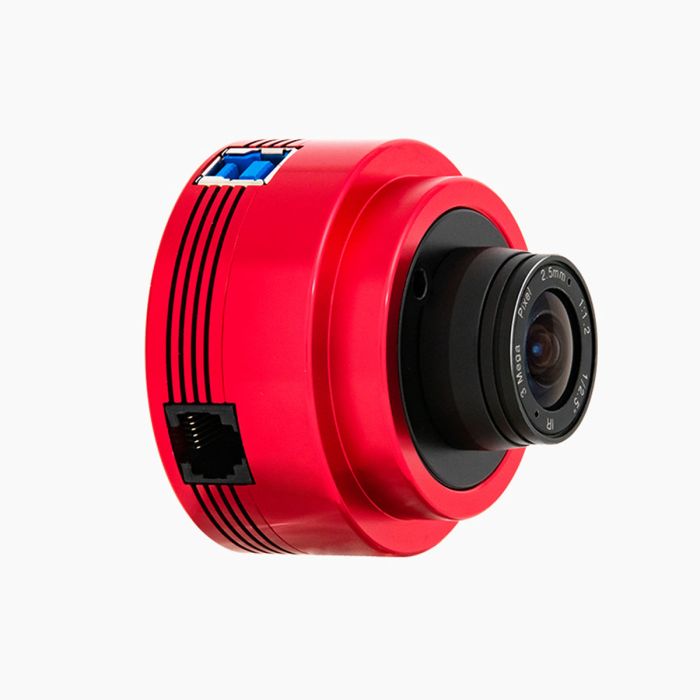

ZWO ASI678MC 8.29 MP CMOS Color Astronomy Camera with USB 3.0
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
ASI678MC adopts Sony's latest generation sensor IMX678 with excellent near infrared response. With the advantages of large full well capacity, high dynamic range and low readout noise, this camera has been tested and found to have perfect performance in planetary imaging, solar and lunar imaging.
Clear in Low Light
Thanks to the back-illuminated sensor structure and advanced pixel technology, the camera has very low readout noise and has an ultra-high sensitivity. Especially in low light conditions, the camera performs very well and is able to capture very clear images of celestial objects.
STARVIS 2
ASI678MC can be regarded as an upgrade of ASI178MC. It adopts the latest SONY IMX678 sensor with advanced STARVIS 2 technology. Compared to ASI178MC, this camera features zero amp glow, lower readout noise and higher sensitivity. The dark current noise is greatly decreased; the performance of near infrared is greatly improved.
USB 3.0 & 256MB DDR3 Memory
The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.
Upgraded Model
The ASI678MC is an upgraded product of the ASI178MC. Compared to the ASI178MC, the ASI678MC has lower read noise, lower dark noise, and no amp glow.
No Amp Glow
ASI678MC exhibits zero amp glow, no matter how long the exposure and how high the gain value. Since it is implemented directly at the hardware level, it does not require software control.
HGC Mode
The camera has a built-in HCG mode, which can effectively reduce readout noise at high gain. This allows the camera to maintain the same high dynamic range as it does at low gain. When the gain is 182, the HCG mode is automatically turned on. The readout noise is as low as 0.8e, and the dynamic range can still reach a level close to 12bit.
Quantum Effiency
The QE curve and readout noise are very important parameters to measure the camera's performance. Higher QE and lower readout noise are necessary to improve the image signal-to-noise ratio.
Dark Current Noise
ASI678MC has much lower dark current noises than the ASI178, it has better image signal-to-noise ratios. If we compare the dark frames captured with these two cameras, it can be easily found that the frame from ASI678 has much less noise and looks much smoother.
Specifications:
- Sensor: 1 / 1.8" CMOS Sony-IMX678AAQR1-C
- Bayer Pattern: R Gr Gb B
- QE peak：83%
- Back focus length: 12.5mm
- Max fps: 47.5fps
- Full well: 11.27Ke
- Shutter: Rolling shutter
- Resolution: 8.29Mega Pixel,3840x2160
- Pixel Size: 2µm
- Exposure Range: 32μs~2000s
- Interface: USB 3.0 /USB 2.0 Type-B
- Protect window: φ21-1.1 AR
- ADC: 12bit
- Dimension: 7.68mmx4.32mm
- Weight: 126g
- Working Temperature: -5℃~50℃
- Storage Temperature: -10℃~60℃
- Working Relative Humidity: 0-80%
- Supported OS: WIN7/8/10 32&64, Linux, Mac
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
This item comes complete with:
- ASI678MC camera body with all-sky lens
- 1.2" Cover
- ST4 Cable
- 1.25" Nosepiece
- Quick Guide
- USB 3.0 Cable (2m)
ASI678MC adopts Sony's latest generation sensor IMX678 with excellent near infrared response. With the advantages of large full well capacity, high dynamic range and low readout noise, this camera has been tested and found to have perfect performance in planetary imaging, solar and lunar imaging.
Clear in Low Light
Thanks to the back-illuminated sensor structure and advanced pixel technology, the camera has very low readout noise and has an ultra-high sensitivity. Especially in low light conditions, the camera performs very well and is able to capture very clear images of celestial objects.
STARVIS 2
ASI678MC can be regarded as an upgrade of ASI178MC. It adopts the latest SONY IMX678 sensor with advanced STARVIS 2 technology. Compared to ASI178MC, this camera features zero amp glow, lower readout noise and higher sensitivity. The dark current noise is greatly decreased; the performance of near infrared is greatly improved.
USB 3.0 & 256MB DDR3 Memory
The camera is equipped with a USB 3.0 transmission interface and a built-in 256MB DDR3 cache to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.
Upgraded Model
The ASI678MC is an upgraded product of the ASI178MC. Compared to the ASI178MC, the ASI678MC has lower read noise, lower dark noise, and no amp glow.
No Amp Glow
ASI678MC exhibits zero amp glow, no matter how long the exposure and how high the gain value. Since it is implemented directly at the hardware level, it does not require software control.
HGC Mode
The camera has a built-in HCG mode, which can effectively reduce readout noise at high gain. This allows the camera to maintain the same high dynamic range as it does at low gain. When the gain is 182, the HCG mode is automatically turned on. The readout noise is as low as 0.8e, and the dynamic range can still reach a level close to 12bit.
Quantum Effiency
The QE curve and readout noise are very important parameters to measure the camera's performance. Higher QE and lower readout noise are necessary to improve the image signal-to-noise ratio.
Dark Current Noise
ASI678MC has much lower dark current noises than the ASI178, it has better image signal-to-noise ratios. If we compare the dark frames captured with these two cameras, it can be easily found that the frame from ASI678 has much less noise and looks much smoother.
Specifications:
- Sensor: 1 / 1.8" CMOS Sony-IMX678AAQR1-C
- Bayer Pattern: R Gr Gb B
- QE peak：83%
- Back focus length: 12.5mm
- Max fps: 47.5fps
- Full well: 11.27Ke
- Shutter: Rolling shutter
- Resolution: 8.29Mega Pixel,3840x2160
- Pixel Size: 2µm
- Exposure Range: 32μs~2000s
- Interface: USB 3.0 /USB 2.0 Type-B
- Protect window: φ21-1.1 AR
- ADC: 12bit
- Dimension: 7.68mmx4.32mm
- Weight: 126g
- Working Temperature: -5℃~50℃
- Storage Temperature: -10℃~60℃
- Working Relative Humidity: 0-80%
- Supported OS: WIN7/8/10 32&64, Linux, Mac
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
This item comes complete with:
- ASI678MC camera body with all-sky lens
- 1.2" Cover
- ST4 Cable
- 1.25" Nosepiece
- Quick Guide
- USB 3.0 Cable (2m)
