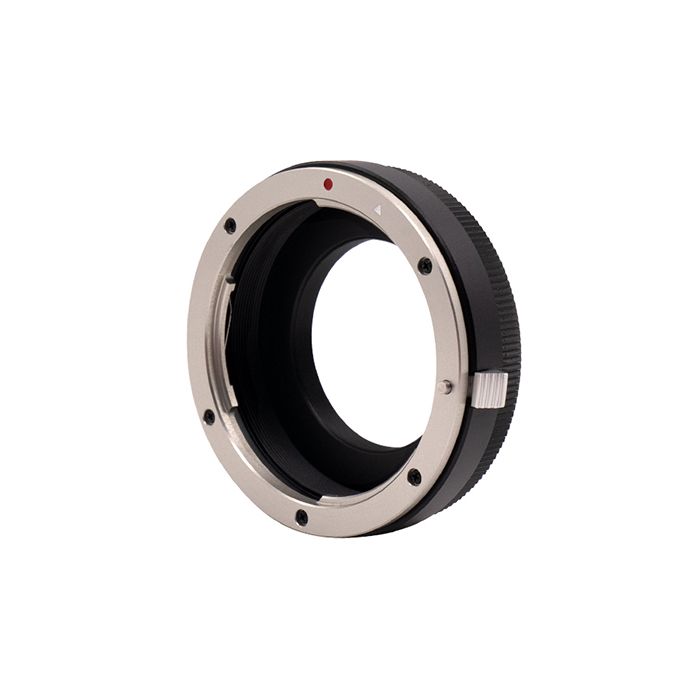

This is a new, slightly improved version of ZWO's popular EFW-EOS adapter. The old and new versions are identical, except for the side release pin in the old version that has been replaced by a larger, easier-to-use side button. It allows you to connect small format ZWO cameras with a ZWO 1.25"/31mm/36mm filter wheel to a Canon EF (full frame) lens. Please see the full compatibility list below to ensure this adapter is correct for your camera.
There are four Canon lens to ZWO camera adapters:
- ZWO Filter Drawer for Canon EOS Lens # FD-EOS - best for color cameras with use of a 2" filter
- ZWO Canon EOS Lens Adapter for 2" Electronic Filter Wheel # EFW2-EOS - best for large format monochrome cameras that use a 2" filter wheel
- ZWO Canon EOS Lens Short Adapter for Electronic Filter Wheel # EFW-EOS-II - best for small format monochrome cameras that use a 1.25"/31mm/36mm filter wheel (this product)
- ZWO T2 Thread to Canon EOS EF-Mount Lens Adapter for all ASI Cameras # EOS-T2-II - best for connecting most ZWO cameras without the need for quickly changing filters
Compatibility with Canon Lenses:
This adapter is compatible with Canon EF (full frame DSLR) Canon lenses only. It is not compatible with EF-S (crop sensor DSLR) lenses or Canon mirrorless lenses.
Compatibility with ZWO Cameras:
This ZWO adapter allows you to attach a Canon EF (full frame) EOS lens to select ZWO cameras that have a backfocus of 6.5mm via ZWO's Electronic Filter Wheels (EFW). This includes all cooled (Pro model) cameras that have a 4/3" sensor or smaller. It has a female EOS bayonet mount on the lens side and a male T/T2 thread on the other side which connects to the EFW. The EFW, in turn, connects to the ZWO camera.
Compatibility with ZWO Filter Wheels:
- ZWO 8-Position Electronic Filter Wheel for 1.25" or 31mm Filters # EFW8-125/31
- ZWO 5-Position Electronic Filter Wheel for 1.25" or 31mm Filters # EFWMINI
- ZWO 7-Position Electronic Filter Wheel for 36mm Unmounted Filters (Version II) # EFW7-36-II
- This product cannot be used with 2" EFWs and you will need EFW2-EOS if using a 2" filter wheel.
How to Connect the Canon EOS Lens Short Adapter for ZWO 1.25"/31mm/36mm EFWs
Please Note: It is common for the silver plate on one side of this adapter to have several light scuff marks right out of the box. These items are new as received from ZWO, and these marks are purely cosmetic.
Specifications:
- Physical adapter length (including male thread): 21.2mm
- Optical length: 17.5mm
- Weight: 3.0oz
