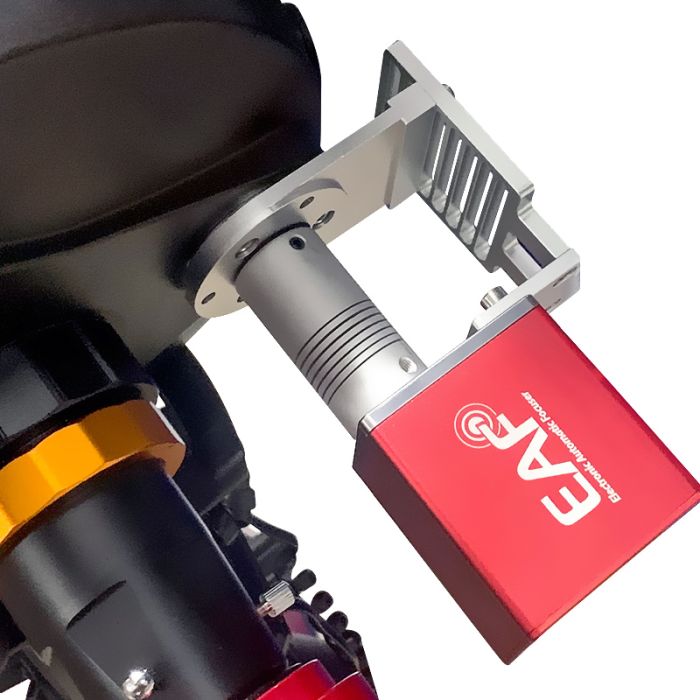

ZWO EAF Bracket for Celestron C11 and C14 SCT Telescopes
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
New version (August 2025): This item now comes with two couplers with different inside diameters (4mm and 5mm).
- 4mm coupler: Compatible with the latest EAFN and EAF-Pro models
- 5mm coupler: Compatible with the previous-generation EAF-5V model
This bracket is designed to work with C11 and C14 Celestron SCT scopes listed below. You can directly connect it to the scopes without using a Feather Touch Microfocuser (FTM) - it will not work with scopes that have the FTM installed.
It is CNC milled from an aircraft graded aluminum block.
Supported Models:
- 11" Rowe-Ackermann Schmidt Astrograph (RASA 11) v2 optical tube assembly (CGE dovetail). Not compatible with v1.
- 11" EdgeHD optical tube assembly (CGE dovetail)
- 11" C11 optical tube assembly (CGE dovetail)
- 11" C11 optical tube assembly (CG-5 dovetail)
- 14" EdgeHD optical tube assembly (CGE dovetail)
- 14" C14 optical tube assembly (CGE dovetail)
Note that this bracket will not work with Celestron Evolution telescopes or any others not listed above.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Flexible coupling x1
- Motor bracket x1
- M4-8mm x2
- M3-35mm x3
- M4-35mm x3
New version (August 2025): This item now comes with two couplers with different inside diameters (4mm and 5mm).
- 4mm coupler: Compatible with the latest EAFN and EAF-Pro models
- 5mm coupler: Compatible with the previous-generation EAF-5V model
This bracket is designed to work with C11 and C14 Celestron SCT scopes listed below. You can directly connect it to the scopes without using a Feather Touch Microfocuser (FTM) - it will not work with scopes that have the FTM installed.
It is CNC milled from an aircraft graded aluminum block.
Supported Models:
- 11" Rowe-Ackermann Schmidt Astrograph (RASA 11) v2 optical tube assembly (CGE dovetail). Not compatible with v1.
- 11" EdgeHD optical tube assembly (CGE dovetail)
- 11" C11 optical tube assembly (CGE dovetail)
- 11" C11 optical tube assembly (CG-5 dovetail)
- 14" EdgeHD optical tube assembly (CGE dovetail)
- 14" C14 optical tube assembly (CGE dovetail)
Note that this bracket will not work with Celestron Evolution telescopes or any others not listed above.
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Flexible coupling x1
- Motor bracket x1
- M4-8mm x2
- M3-35mm x3
- M4-35mm x3
ZWO EAF Bracket for Celestron C11 and C14 SCT Telescopes # ZW-EAF-C11-C14
